Home >> Ford >> 2006 >> Focus ZX5 SE, Standard >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Bumper System >> Removal And Installation >> Bumper Cover - Front >> Notes

Bumper Cover - Front: Notes

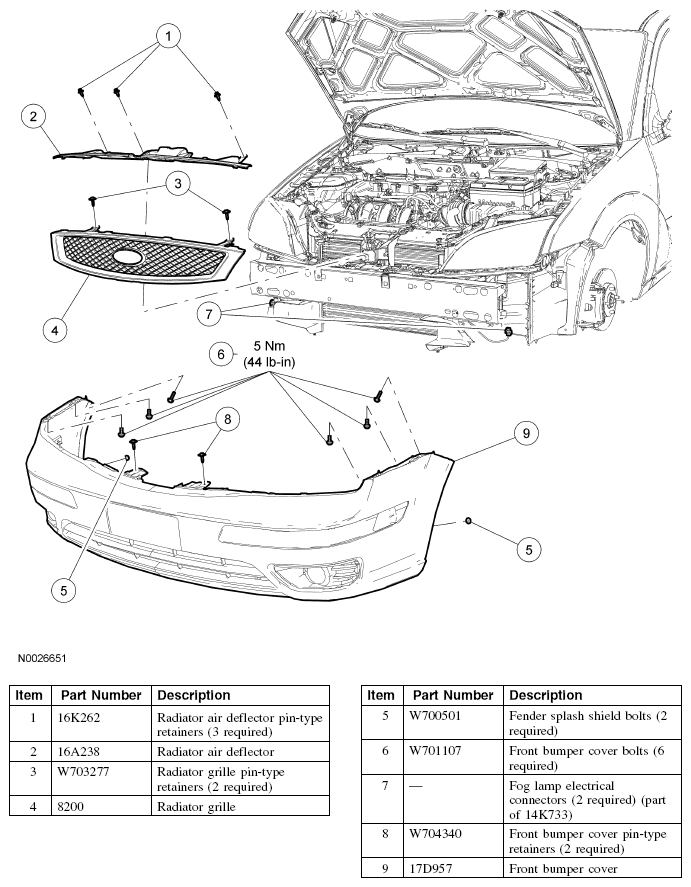

Fig 1: Identifying Bumper Cover - Front Components

G04654756

Courtesy of FORD MOTOR CO.
