Bumper - Rear
>>
Notes
Bumper - Rear: Notes
NOTE:
The 4-door is shown, the 3/5-door and wagon are similar.

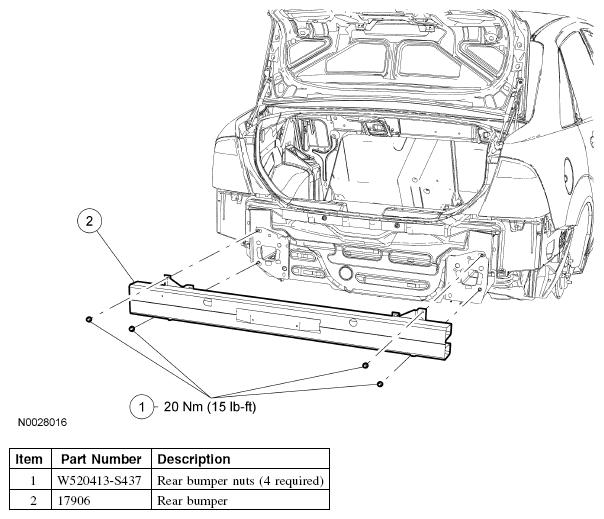

Fig 1: Identifying Bumper - Rear Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
