Front End Body Panels - Exploded View

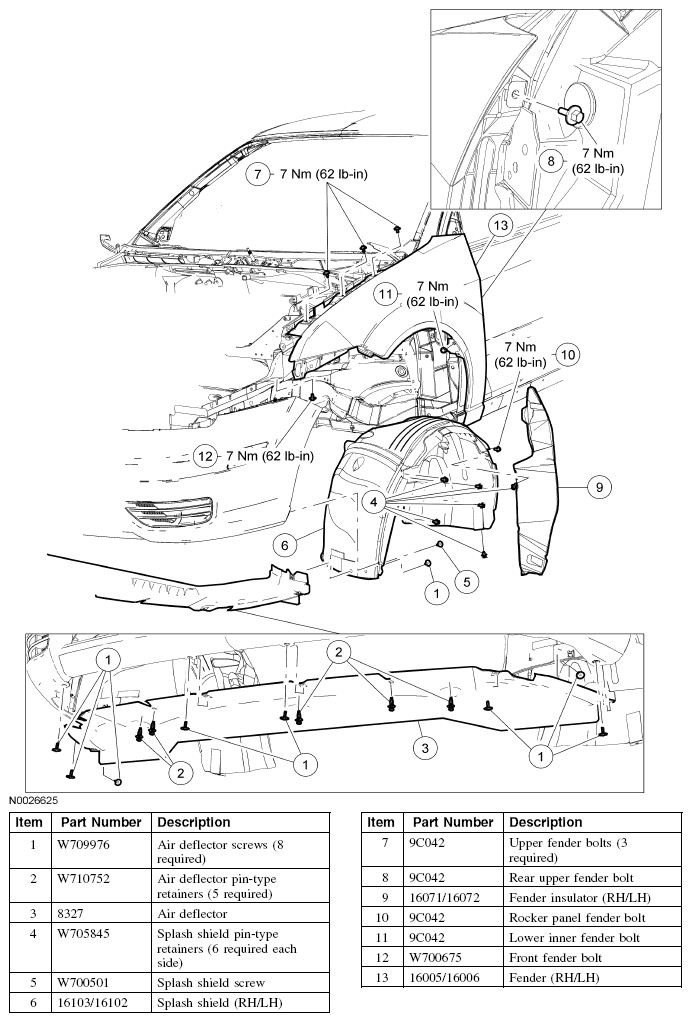

Fig 1: Exploded View Of Front End Body Panels

G04654288

Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate procedure in this article.
