Removal and Installation

Remove the 3 pin type retainers and the radiator air deflector.
Disconnect the electrical connector and remove the 2 hood latch bolts.
- To install, tighten to 9 Nm (80 lb-in).

CAUTION: Make sure that the fins on the radiator are not damaged while moving the hood latch.

Disconnect the hood latch release cable from the hood latch.
Rotate and remove the hood latch.

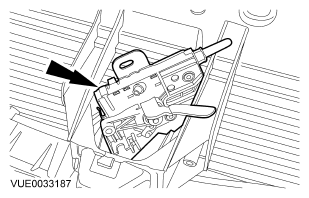

Fig 1: Locating Hood Latch
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
