Home >> Ford >> 2006 >> Focus ZX5 SE, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Wiper/Washer Systems >> Wiper System And Washer System >> Removal And Installation >> Washer Pump and Reservoir >> Notes

Washer Pump and Reservoir: Notes

SPECIAL TOOL(S)

G04654726Courtesy of FORD MOTOR CO.
 Heavy Duty Riveter
501-D011 (D80L-23200-A) or equivalent
MATERIALS

Item Specification
Premium Windshield Washer Concentrate (US) ZC-32-A or B (US) WSB-M8B16-A2

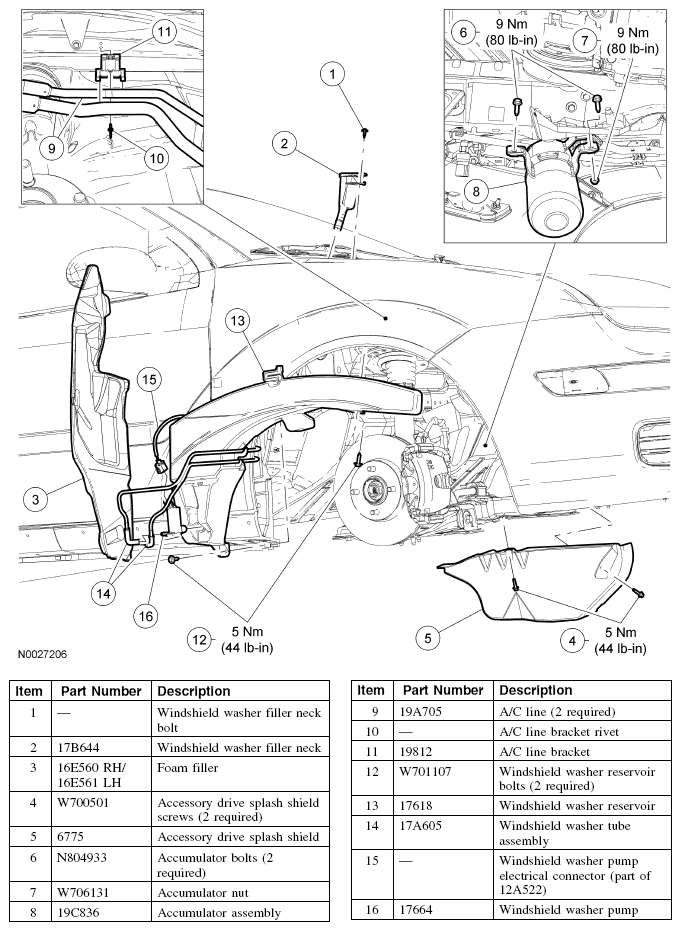

Fig 1: Exploded View Of Windshield Washer Pump With Torque Specifications
G04654727Courtesy of FORD MOTOR CO.
