Removal and Installation

  1. Remove the steering column upper shroud.
    • Using a suitable tool, release the 2 clips (one on each side).
  2. Remove the audio control switch.
    • Using a suitable tool, release the locking tab.
    • Disconnect the electrical connector.
      Fig 1: Locating Locking Tab
      G04651816Courtesy of FORD MOTOR CO.
  3. Remove the steering column lower shroud.
    1. If equipped, release the steering column locking lever.
    2. Remove the screws.
    4. NOTE: LH multi-function switch shown, RH similar.

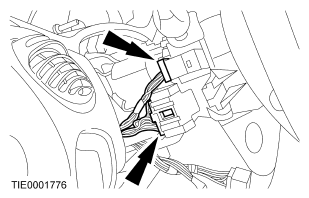

    Fig 2: Locating Electrical Connectors
    G04651817Courtesy of FORD MOTOR CO.
  4. Disconnect the electrical connectors.
  5. Remove the multi-function switch.
    1. Press the locking tab.
    2. Lift the multi-function switch upwards.
      Fig 3: Removing Multi-Function Switch
      G04651818Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
