Removal and Installation

Depower the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
Remove the 4 bolts, release the fastener and position the instrument panel lower panel aside.
- To install, tighten to 9 Nm (80 lb-in).
Disconnect the hood release cable and the data link connector (DLC) from the instrument panel lower panel and remove the panel.
- Loosen the hood release cable nut.
  - To install, tighten to 20 Nm (15 lb-ft).
Remove the steering column upper shroud.
- Using a suitable tool, release the 2 clips (one on each side).
If equipped, remove the audio control switch.
- Using a suitable tool, release the locking tab.
- Disconnect the electrical connector.

  Fig 1: Locating Locking Tab
  Courtesy of FORD MOTOR CO.
Remove the steering column lower shroud.
1. Release the steering column locking lever.
2. Remove the screws.
Disconnect the ignition switch and the LH multi-function switch electrical connectors.
Remove the ignition switch.
- Release the clips.

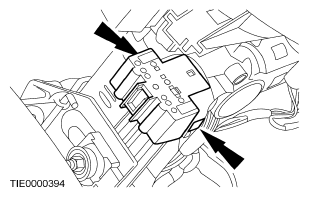

  Fig 2: Locating Clips
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
