Noise, Vibration and Harshness (NVH): Notes

Courtesy of FORD MOTOR CO.	ChassisEAR 107-R2102 or Equivalent
Courtesy of FORD MOTOR CO.	Vibration Analyzer 100-F027 (014-00344) or Equivalent
Courtesy of FORD MOTOR CO.	EngineEAR 107-R2100 or Equivalent
Courtesy of FORD MOTOR CO.	Ultrasonic Leak Detector 134-R0135 or Equivalent

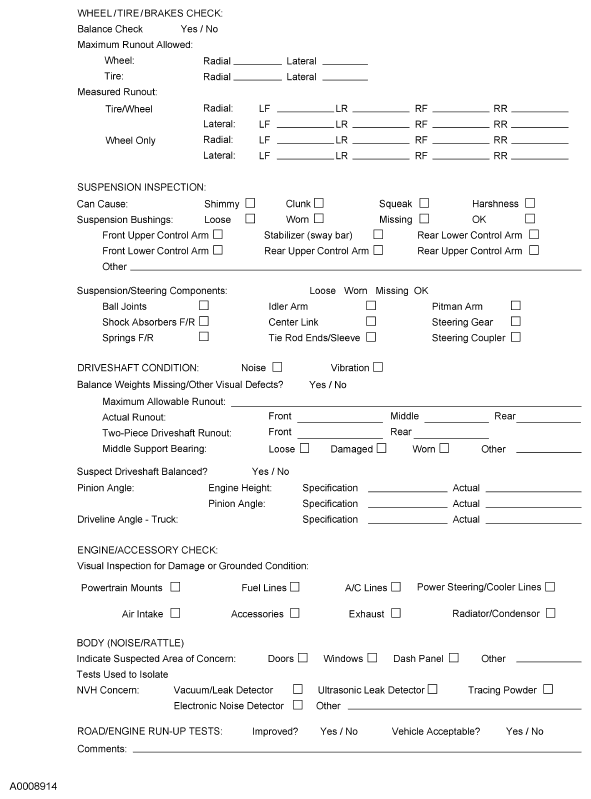

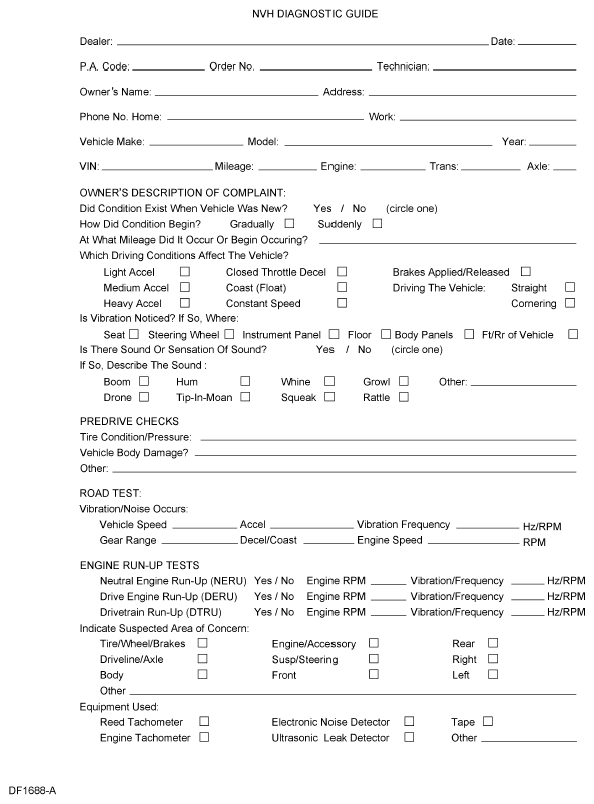

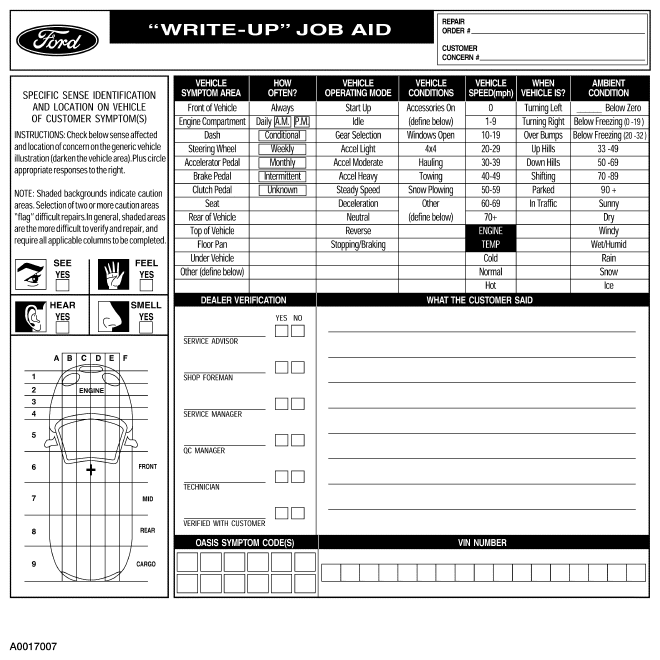

To assist the service advisor and the technician, a Write-up Job Aid and an NVH Diagnostic Guide are included with this material. The Write-up Job Aid serves as a place to record all important symptom information. The NVH Diagnostic Guide serves as a place to record information reported on the Write-up Job Aid as well as data from the testing to be carried out.

To begin a successful diagnosis, fill out the NVH Diagnostic Guide, record the reported findings, then proceed to each of the numbered process steps to complete the diagnosis.
