Brake Pedal and Bracket: Notes

NOTE: Automatic transmission shown, manual transmission similar.

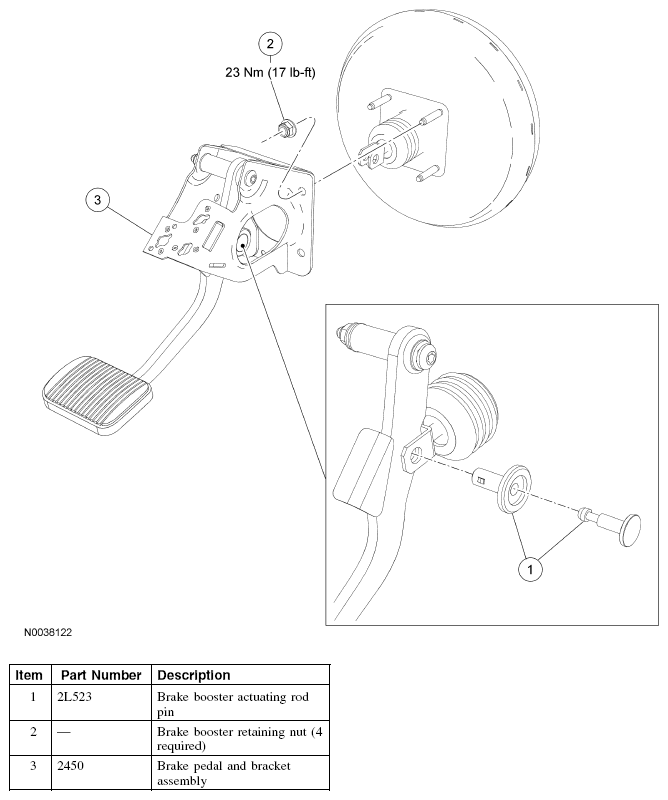

Fig 1: Brake Pedal And Bracket Replacement Components With Torque Specifications
G04651660Courtesy of FORD MOTOR CO.
