Brake Pedal and Bracket: Notes

NOTE: Adjustable pedals shown, fixed pedals similar.

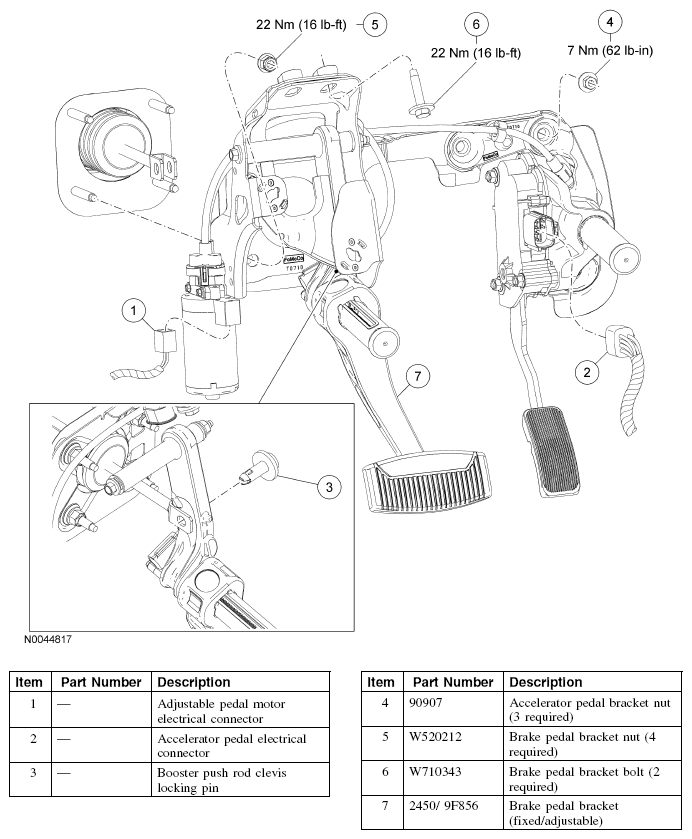

Fig 1: Identifying Brake Pedal And Bracket Components

G04637766

Courtesy of FORD MOTOR CO.
