Removal And Installation
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the accelerator pedal and position sensor assembly electrical connector.
- Disconnect the adjustable pedal motor electrical connector.
- Disconnect the adjustable pedal motor drive cable from the brake pedal assembly.
- Remove the 3 nuts and the accelerator pedal and position sensor assembly.
- To install, tighten to 9 Nm (80 lb-in).

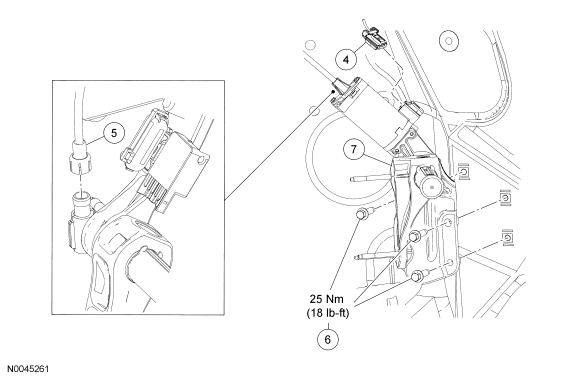

- Remove the 3 bolts and the adjustable pedal motor and bracket assembly.
- To install, tighten to 25 Nm (18 lb-ft).
- To install, reverse the removal procedure.
- The brake pedal and the accelerator pedal must be indexed when installing a new cable or a new adjustable pedal motor assembly. Index the adjustable pedal assemblies. For additional information, refer to HYDRAULIC BRAKE ACTUATION article.
