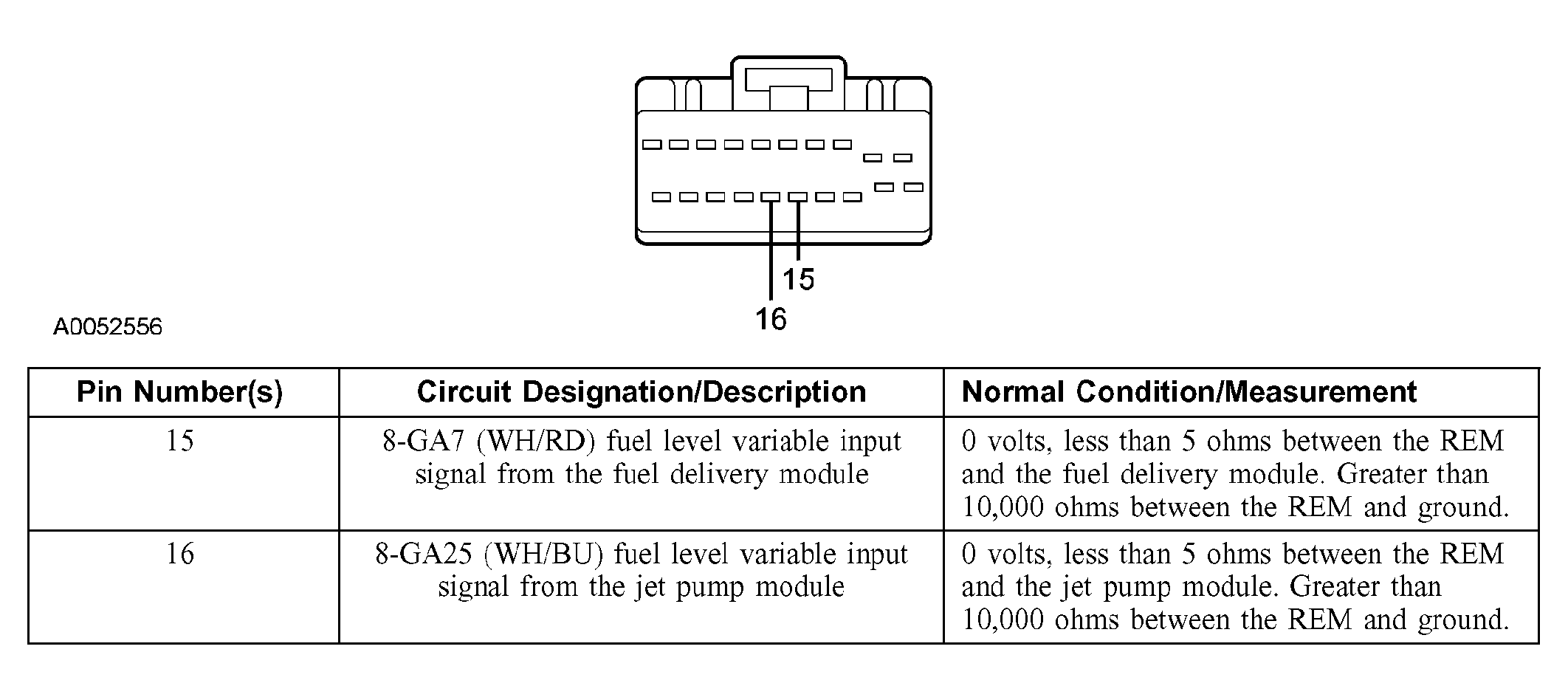

Home >> Ford >> 2005 >> Thunderbird >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Cluster >> Diagnosis And Testing >> Instrument Cluster >> Connector Circuit Reference >> Rear Electronic Module (REM) C420e
