Instrument Panel Dimmer Switch

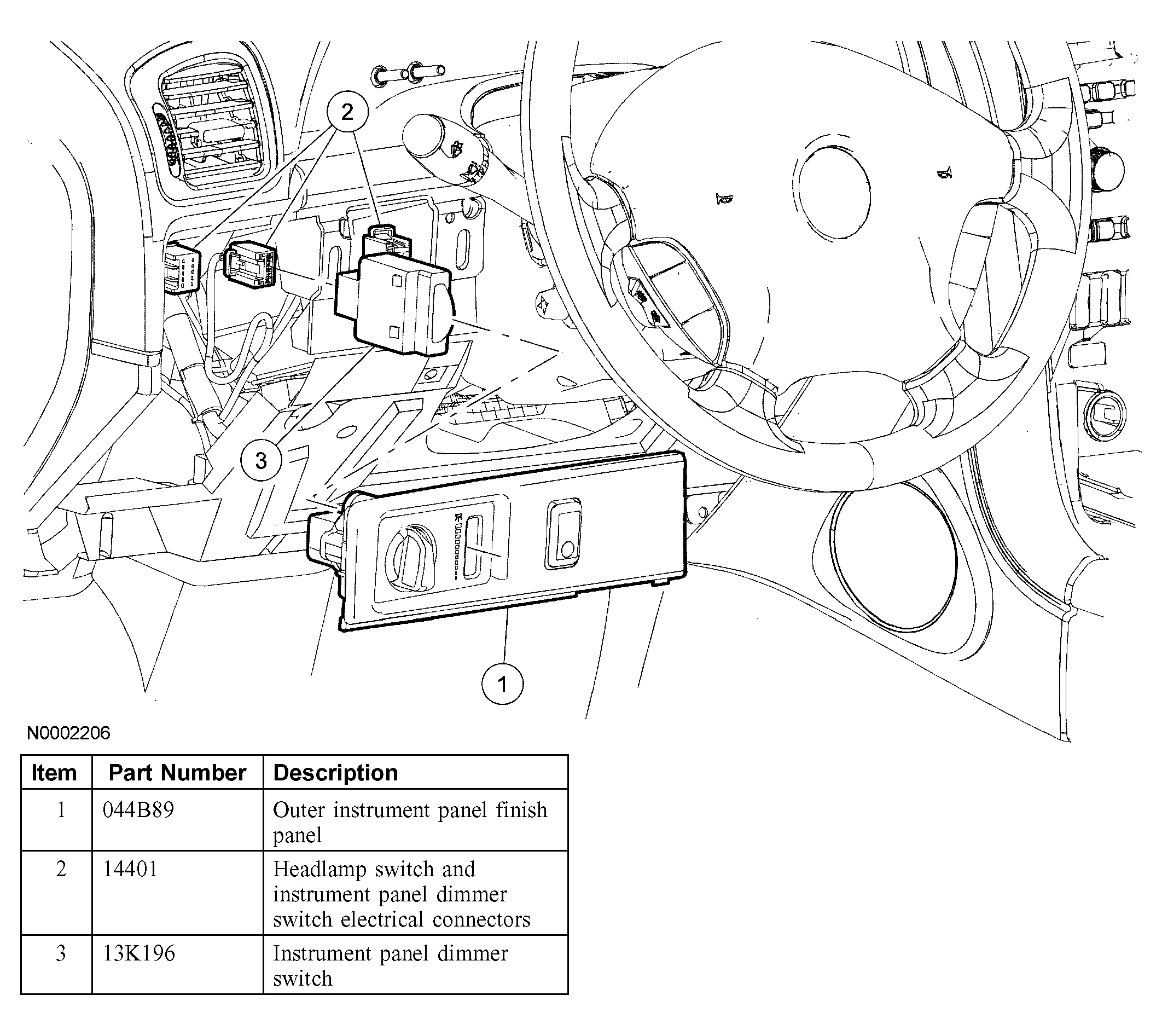

Fig 1: Identifying Instrument Panel Dimmer Switch
G04009161Courtesy of FORD MOTOR CO.
    NOTE: The outer instrument panel finish panel is held in place by spring clips located on the housing.
  1. Remove the outer instrument panel finish panel.
    • Disconnect the electrical connectors.
  2. Release the retaining tabs and remove the instrument panel dimmer switch.
  3. To install, reverse the removal procedure.
