LH Heated Seat Switch C2147, RH Heated Seat Switch C2148

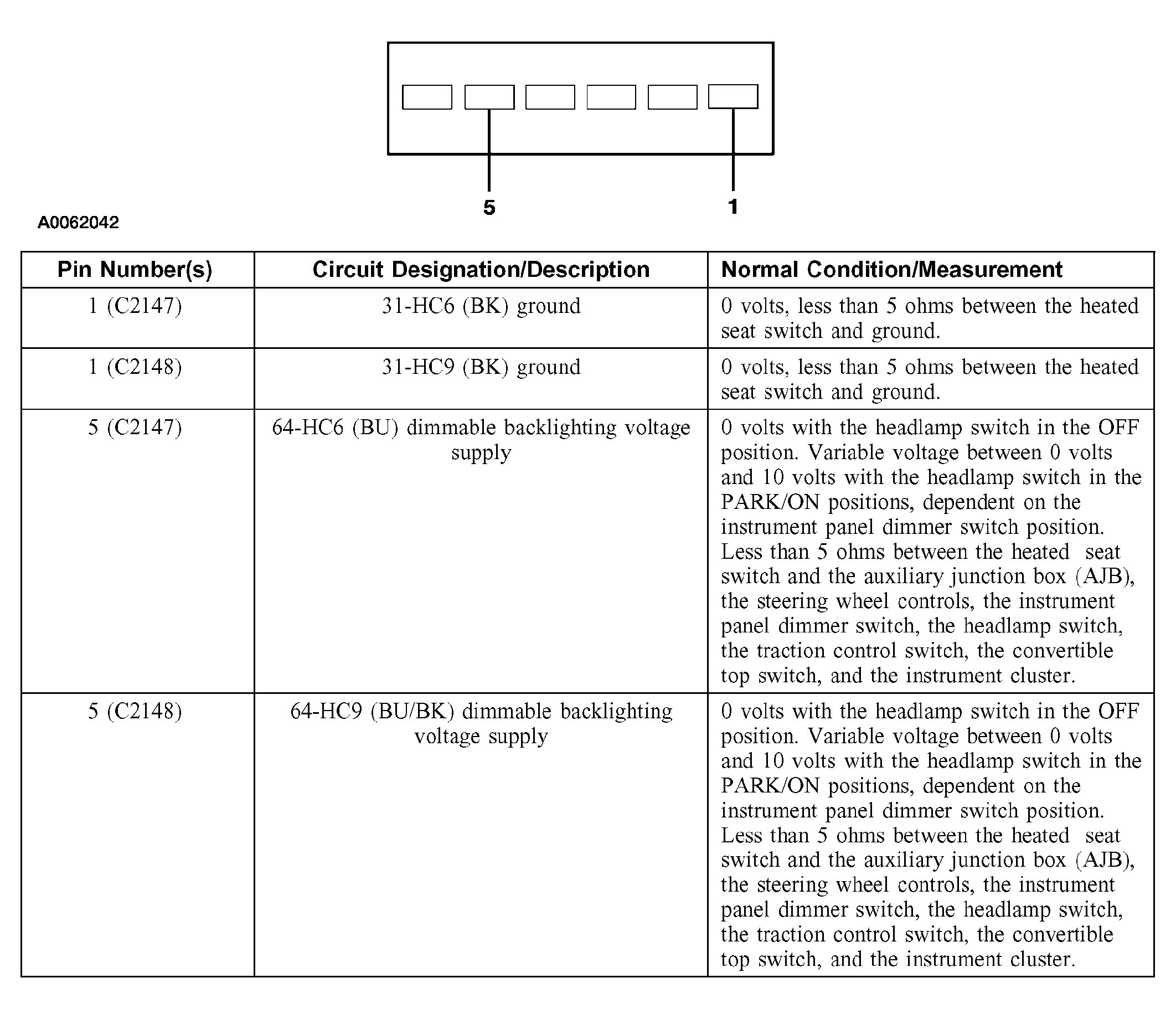

Fig 1: Identifying LH Heated Seat Switch C2147 And RH Heated Seat Switch C2148

G04009150

Courtesy of FORD MOTOR CO.
