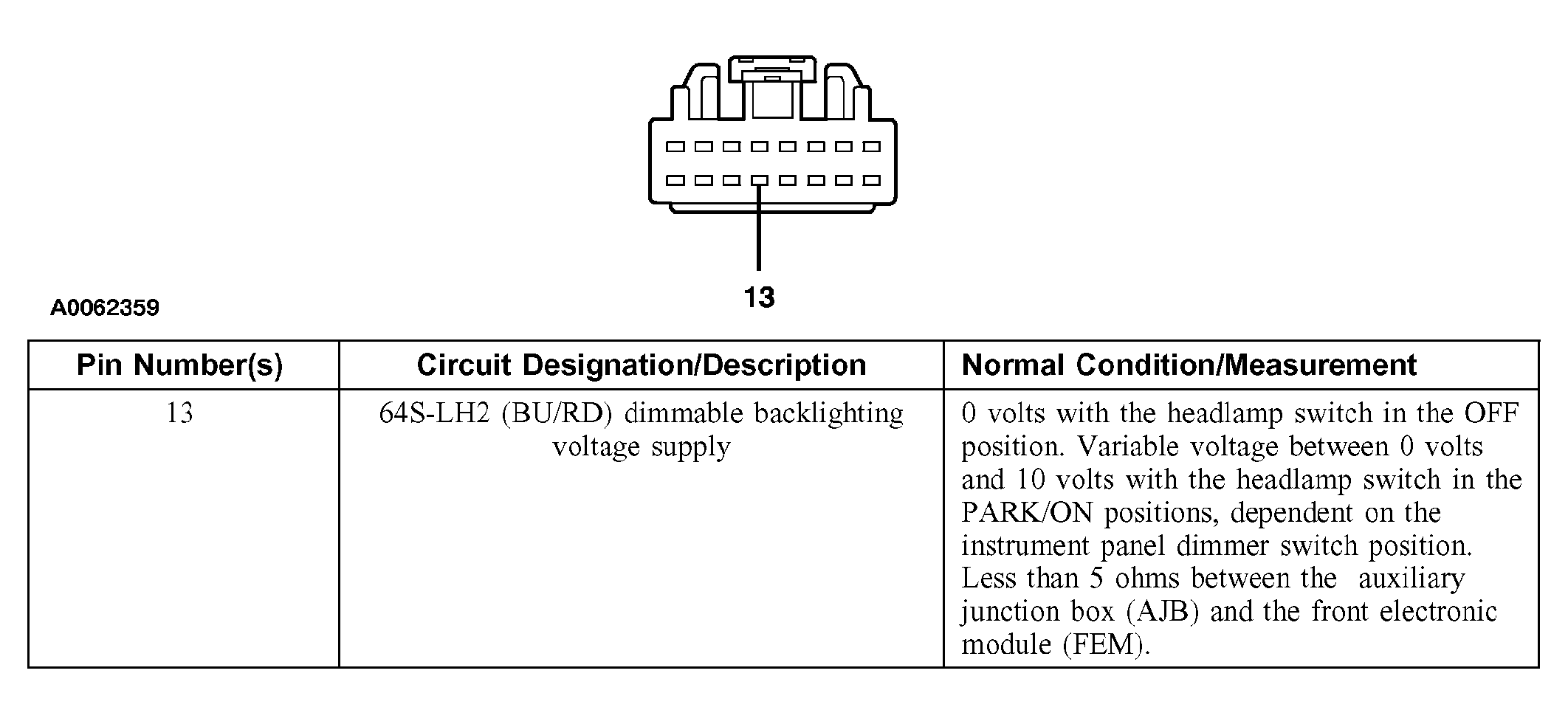

Home >> Ford >> 2005 >> Thunderbird >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Cluster And Panel Illumination >> Diagnosis And Testing >> Instrument Cluster and Panel Illumination >> Connector Circuit Reference >> Auxiliary Junction Box (AJB) C283a
