Rear Window Control Switch C566, Passenger Window Control Switch C604

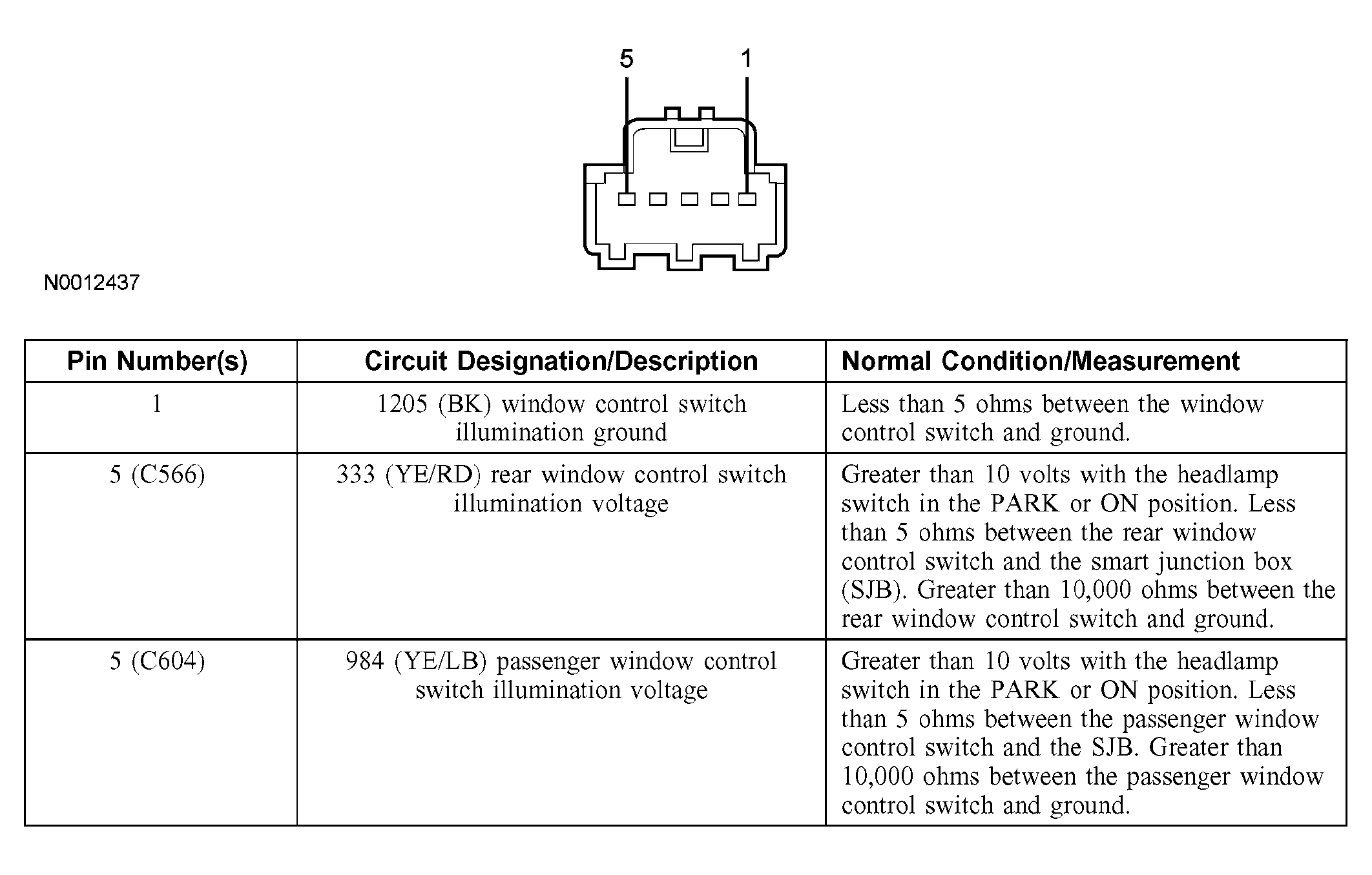

Fig 1: Identifying Rear Window Control Switch C566, Passenger Window Control Switch C604 Connector

G03986431

Courtesy of FORD MOTOR CO.
