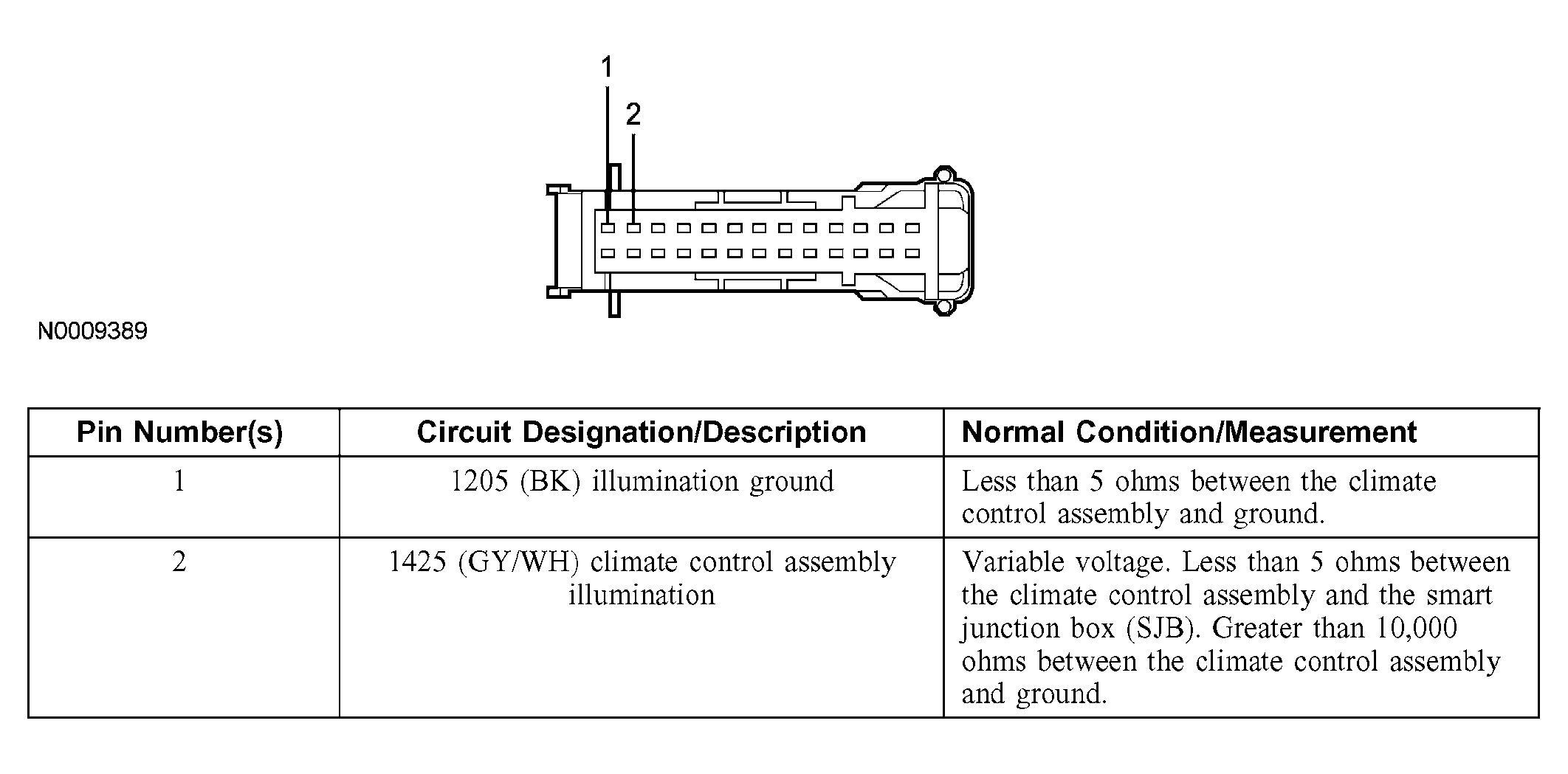

Home >> Ford >> 2005 >> Mustang Base, 2D Convertible, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Cluster And Panel Illumination >> Diagnosis And Testing >> Instrument Cluster and Panel Illumination >> Connector Circuit Reference >> Climate Control Assembly C294a
