Driveshaft - Exploded View
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

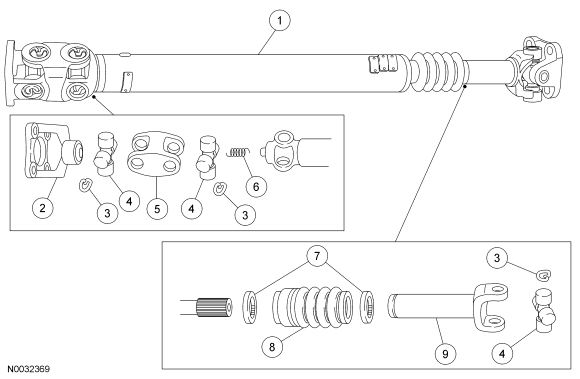

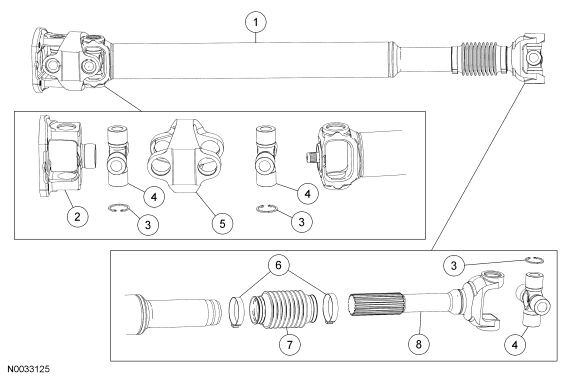

| Item | Part Number | Description |
|---|---|---|
| 1 | 4A376 | Front driveshaft |
| 2 | - | Flange yoke (double hooks) with spherical bearing assembly |
| 3 | - | Circlip (part of 4635) |
| 4 | 4635 | U-joint assembly |
| 5 | - | Double yoke |
| 6 | 3B478 | Clamp |
| 7 | 4421 | Boot |
| 8 | 4841 | Yoke shaft |
Fig 2: Exploded View Of Driveshaft Components - Rear, One-Piece Rear Wheel Drive (RWD) with Split Pin Yoke
| Item | Part Number | Description |
|---|---|---|
| 1 | 4851 | Rear axle pinion flange |
| 2 | 4635 | Universal joint (U-joint) |
| 3 | 4A254 | U-joint retainer |
| 4 | 4602 | Driveshaft |
| 5 | 4841 | Driveshaft slip yoke (automatic transmission) |
| 6 | - | Driveshaft yoke (manual transmission) |
Fig 3: Exploded View Of Driveshaft Components - Rear, One-Piece Rear Wheel Drive (RWD) with Circular Flange
| Item | Part Number | Description |
|---|---|---|
| 1 | 4635 | Universal joint (U-joint) |
| 2 | 4602 | Driveshaft |
| 3 | 4841 | Driveshaft slip yoke (automatic transmission) |
| 4 | - | Driveshaft yoke (manual transmission) |
Fig 4: Exploded View Of Driveshaft Components - Rear, One-Piece Four Wheel Drive (4WD) with Single Cardan Joint
| Item | Part Number | Description |
|---|---|---|
| 1 | 4602 | Driveshaft |
| 2 | - | Snap ring (part of 4635) |
| 3 | 4635 | Universal joint (U-joint) |
| 4 | 4841 | Driveshaft slip yoke |
| 5 | 4421 | Driveshaft slip yoke boot |
| 6 | 4K277 | Driveshaft slip yoke boot clamp |
Fig 5: Exploded View Of Driveshaft Components - Rear, One-Piece Four Wheel Drive (4WD) with Double Cardan Joint
| Item | Part Number | Description |
|---|---|---|
| 1 | 4602 | Driveshaft |
| 2 | 4782 | Driveshaft centering socket yoke |
| 3 | - | Snap ring (part of 4635) |
| 4 | 4635 | Universal joint (U-joint) |
| 5 | 4784 | Driveshaft center yoke |
| 6 | - | Spring (part of 4A376) |
| 7 | 4K277 | Driveshaft slip yoke boot clamp |
| 8 | 4421 | Driveshaft slip yoke boot |
| 9 | 4841 | Driveshaft slip yoke |

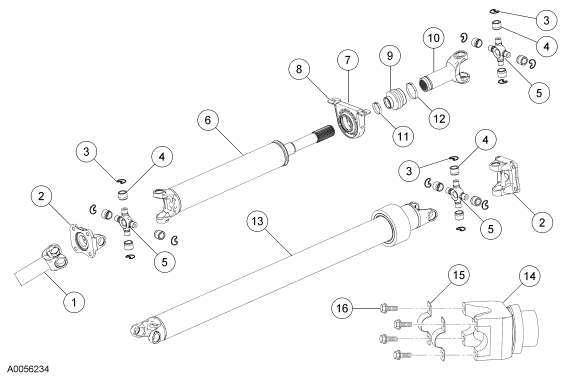

| Item | Part Number | Description |
|---|---|---|
| 1 | 4841 | Driveshaft slip yoke |
| 2 | 4A378 | Driveshaft circular flange yoke |
| 3 | - | Snap ring (part of 4635) |
| 4 | - | Bearing cap (part of 4635) |
| 5 | - | Spider (part of 4635) |
| 6 | 4K145 | Driveshaft assembly |
| 7 | - | Center bearing and insulator (part of 4800) |
| 8 | 4A499 | Driveshaft center bearing bracket |
| 9 | 4421 | Driveshaft slip yoke boot |
| 10 | 4841 | Driveshaft slip yoke |
| 11 | 4K227 | Driveshaft slip yoke boot clamp (small) |
| 12 | 4K227 | Driveshaft slip yoke boot clamp (large) |
| 13 | 4K145 | Driveshaft assembly |
| 14 | 4851 | Pinion flange |
| 15 | 4A254 | Bearing strap |
| 16 | 4N272 | Bearing strap bolt |

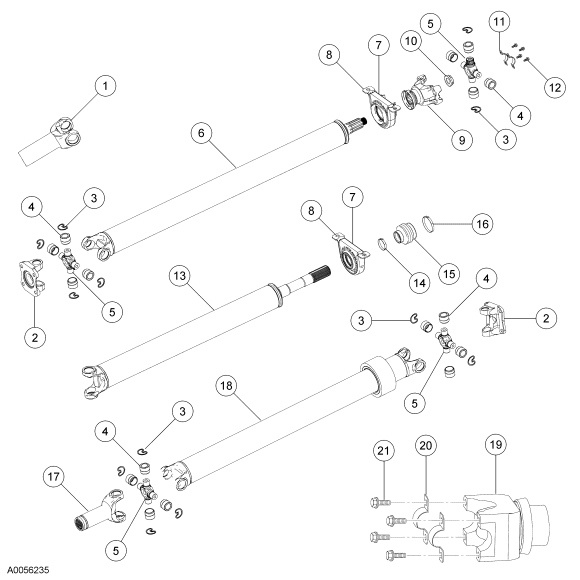

| Item | Part Number | Description |
|---|---|---|
| 1 | 4891 | Driveshaft slip yoke |
| 2 | 4A378 | Driveshaft circular flange yoke |
| 3 | - | Snap ring (part of 4635) |
| 4 | - | Bearing cup (part of 4635) |
| 5 | - | Spider (part of 4635) |
| 6 | 4817 | Driveshaft (front) |
| 7 | - | Center bearing and isolator (part of 4800) |
| 8 | 4A499 | Driveshaft center bearing bracket |
| 9 | 4851 | Driveshaft yoke |
| 10 | 4320 | Nut |
| 11 | 4A254 | Bearing strap |
| 12 | 4N272 | Bearing strap bolt |
| 13 | 4K357 | Driveshaft assembly |
| 14 | 4K227 | Driveshaft slip yoke boot clamp (small) |
| 15 | 4841 | Driveshaft slip yoke boot |
| 16 | 4K227 | Driveshaft slip yoke boot clamp (large) |
| 17 | 4841 | Driveshaft slip yoke |
| 18 | 4K185 | Driveshaft (rear) |
| 19 | 4851 | Pinion yoke |
| 20 | 4A254 | Bearing strap |
| 21 | 4N272 | Bearing strap bolt |
- Driveshafts differ in length, diameter, material, nuber of pieces and the type of slip yokes to accommodate various wheel base and powertrain combinations.
