Main Control Valve Body: Removal

WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain transmission fluid and remove the transmission fluid pan and filter. For additional information, refer to Fluid Pan, Gasket and Filter .
    2. CAUTION: Do not pull on the molded lead frame. This may cause damage to the connector ends. Carefully pry up on the locking tabs to disconnect the solenoids. Disconnect the molded lead frame from the solenoids.
  2. Disconnect the molded lead frame from the solenoids.
    1. Disconnect the shift solenoid SSA and SSB.
    2. Disconnect the torque converter clutch (TCC).
    3. Disconnect the electronic pressure control (EPC) solenoid.
    4. Disconnect the bulkhead inter-connector.

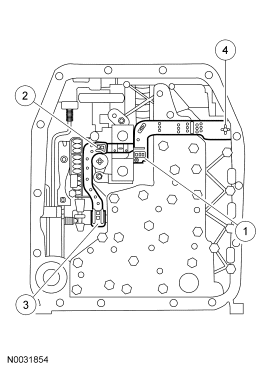

    3. Fig 1: Identifying Molded Lead Frame And Solenoids
    G04584282Courtesy of FORD MOTOR CO.
  3. Remove the manual control valve detent lever bolt and spring.
    4. Fig 2: Locating Manual Valve Detent Lever Spring & Bolt
    G04584283Courtesy of FORD MOTOR CO.
  4. Remove the 24 valve body-to-case bolts and the EPC bracket bolt.
    5. Fig 3: Locating 24 Valve Body-To-Case Bolts And EPC Bracket Bolt
    GF0003493Courtesy of FORD MOTOR CO.
  5. Remove the main control valve body and discard the pump outlet screen.
Fig 4: Identifying Pump Outlet Screen
G03888559Courtesy of FORD MOTOR CO.
