Main Control Valve Body: Assembly

WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before beginning assembly, carry out and inspect the following:

When building up subassemblies and assembling the transmission, ALWAYS use new gaskets and seals.

All fasteners must be tightened to the torque specification indicated. In addition to appearing in the section, the necessary torque measurements can be found in the General Specifications Chart.

When building up subassemblies, each component part should be lubricated with clean transmission fluid. It is also good practice to lubricate the subassemblies as they are installed in the case.

Needle bearings, thrust washers and seals should be lightly coated with clean transmission fluid during subassembly buildup or transmission assembly.

Many components and surfaces in the transmission are precision machined. Careful handling during disassembly, cleaning, inspection and assembly can prevent unnecessary damage to machined surfaces.

NOTE: Inspect the shift solenoid O-rings and TCC solenoid O-rings for damage.

Install the valve body cover plate.
1. Position the valve body cover plate gasket and cover plate.
2. Loosely install the 2 guide pin bolts.
3. Loosely install the remaining bolts.
Tighten all the bolts in the sequence shown.
- Tighten to 10 Nm (89 lb-in).

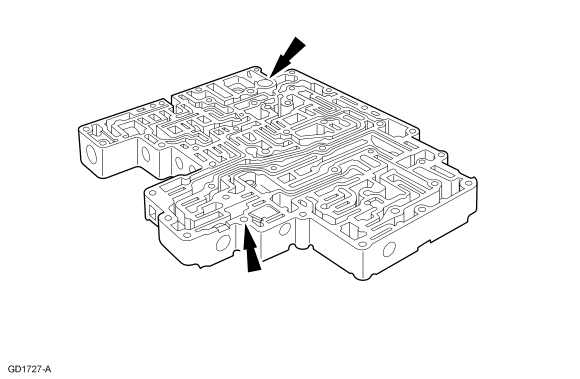

Fig 2: Main Control Valve Body Cover Plate Bolt Tightening Sequence

Courtesy of FORD MOTOR CO.

Install the 8 coasting booster valve shuttle balls.

Item	Part Number	Description
1	7E195	Check ball (B9) located in the forward clutch circuit near the 3-4 shift valve
2	7E195	Check ball (B2) located in the direct clutch circuit near the 2-3 backout valve
3	7E195	Check ball (B3) located in the overdrive and forward clutch circuits near the 1-2 shift valve
4	7E195	Check ball (B4) located in the reverse circuit near the orifice 1
5	7E195	Check ball (B5) located between the reverse, LS modulator and the low reverse servo circuits
6	7E195	Check ball (B6) located between the L, 2, 3, 4 and the torque converter clutch (TCC) circuits
7	7E195	Check ball (B7) located between the L, 2, 3, 4 and the intermediate clutch circuits
8	7E195	Check ball (B8) located between the forward clutch and the 23 BP circuits

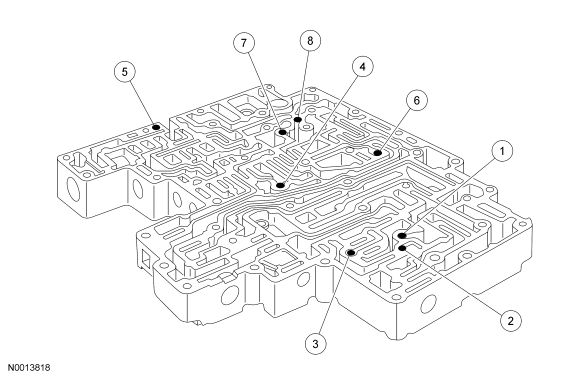

Fig 3: Locating Coasting Booster Valve Shuttle Balls

Courtesy of FORD MOTOR CO.

Install the converter drain back valve and solenoid pressure supply screen.

Fig 4: Locating Converter Drain Back Valve And Solenoid Pressure Supply Screen

Courtesy of FORD MOTOR CO.

Install the separator plate and gaskets.

Fig 5: Locating Separator Plate And Gaskets

Courtesy of FORD MOTOR CO.

Install the 2 reinforcement plate and bolts.
- Tighten to 10 Nm (89 lb-in).

Fig 6: Locating Reinforcement Plate And Bolts

Courtesy of FORD MOTOR CO.

Install the shift solenoid.
1. Position the TCC solenoid.
2. Position the shift solenoid.
3. Install the bolt.
- Tighten to 10 Nm (89 lb-in).

Fig 7: Identifying Shift Solenoid

Courtesy of FORD MOTOR CO.
