Forward Clutch Cylinder: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Dial Indicator Gauge with Holding Fixture | 100-002 (TOOL-4201-C) or equivalent | |
| Compressor, Clutch Spring | 307-096 (T81P-70235-A) | |
| Protector, Piston Seal | 307-020 (T68P-7D158-A2) | |
| Protector, Piston Seal | 307-078 (T80L-77140-A) |
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

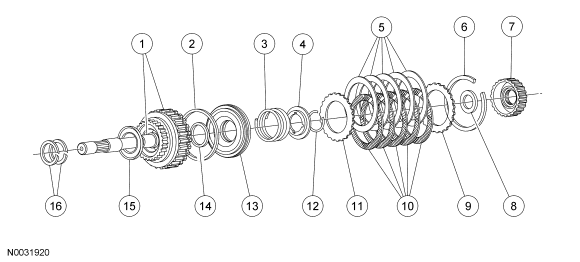

| Item | Part Number | Description |
|---|---|---|
| 1 | 7F207 | Forward clutch cylinder and shaft |
| 2 | 7A548 | Forward clutch piston outer seal |
| 3 | 7A480 | Forward clutch piston return spring |
| 4 | 7A527 | Forward clutch retainer return spring |
| 5 | 7B442 | Forward clutch external spline plates (steel) |
| 6 | 7D483 | Retaining snap ring |
| 7 | 7B067 | Forward clutch hub |
| 8 | 7F231 | No. 3 forward clutch hub front bearing |
| 9 | 7B066 | Forward clutch pressure plate |
| 10 | 7B164 | Forward clutch internal spline plates (friction) |
| 11 | 7E085 | Forward clutch pressure spring |
| 12 | 388099-S | Retaining snap ring |
| 13 | 7A262 | Forward clutch piston |
| 14 | 7C099 | Forward clutch piston inner seal |
| 15 | 7A166 | No. 2 forward clutch bearing |
