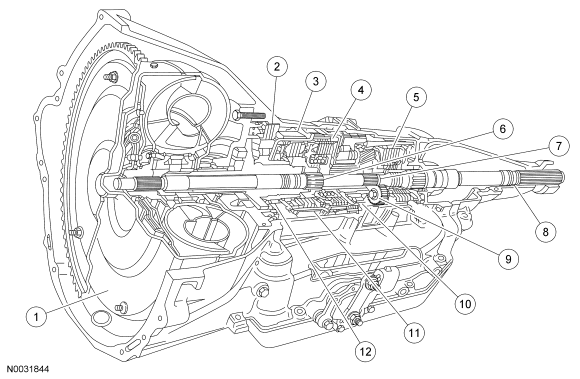

Main Components and Functions
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7902 | Torque converter |
| 2 | 7B164 | Intermediate clutch (friction) |
| 3 | 7B164 | Reverse clutch (friction) |
| 4 | 7B164 | Forward clutch (friction) |
| 5 | 7B164 | Direct clutch (friction) |
| 6 | 7F207 | Forward clutch cylinder and shaft |
| 7 | 7F351 | Shaft - intermediate stub |
| 8 | 7060 | Output shaft |
| 9 | 7A089 | Planetary one-way clutch |
| 10 | 7D095 | Reverse clutch band |
| 11 | 7F196 | Overdrive band |
| 12 | 7A089 | Intermediate one-way clutch |
