Removal and Installation

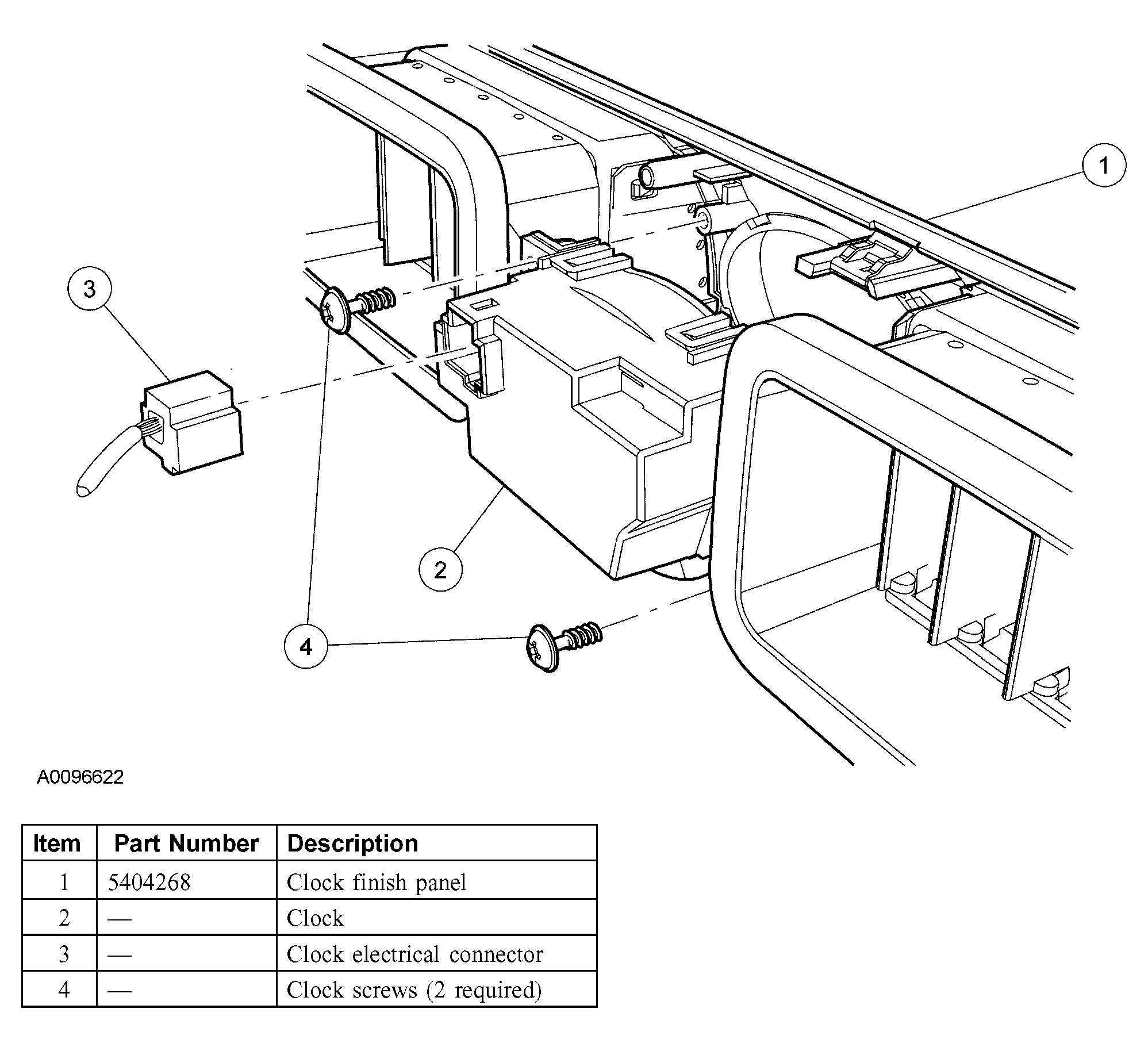

Fig 1: Removing/Installing Clock
G03992598Courtesy of FORD MOTOR CO.
  1. Remove the clock finish panel.
    • Disconnect the electrical connector.
  2. Remove the 2 screws and the clock.
  3. To install, reverse the removal procedure.
