Connector Circuit Reference

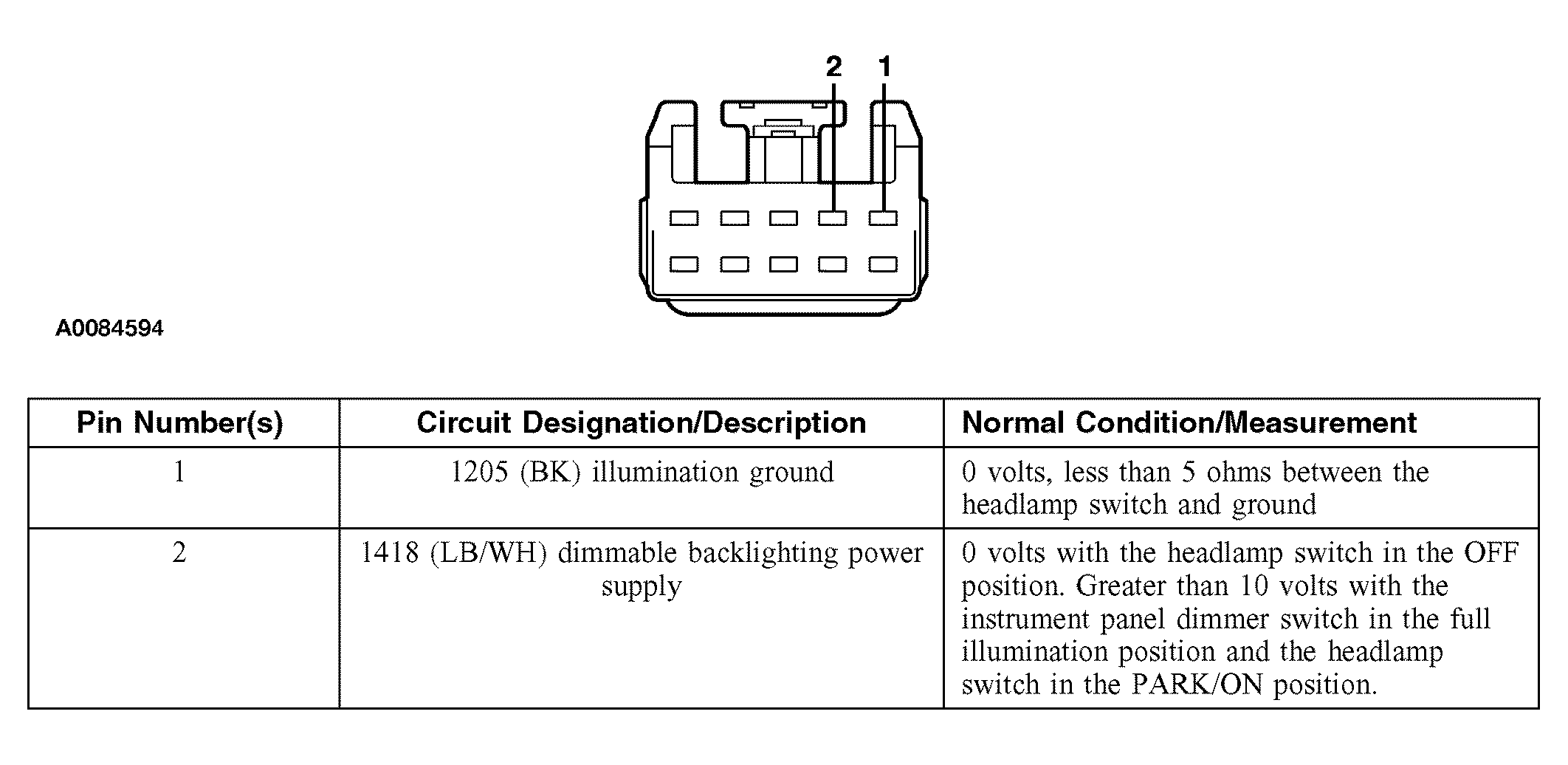

Fig 1: Identifying Headlamp Switch C205 Connector

G04005870

Courtesy of FORD MOTOR CO.

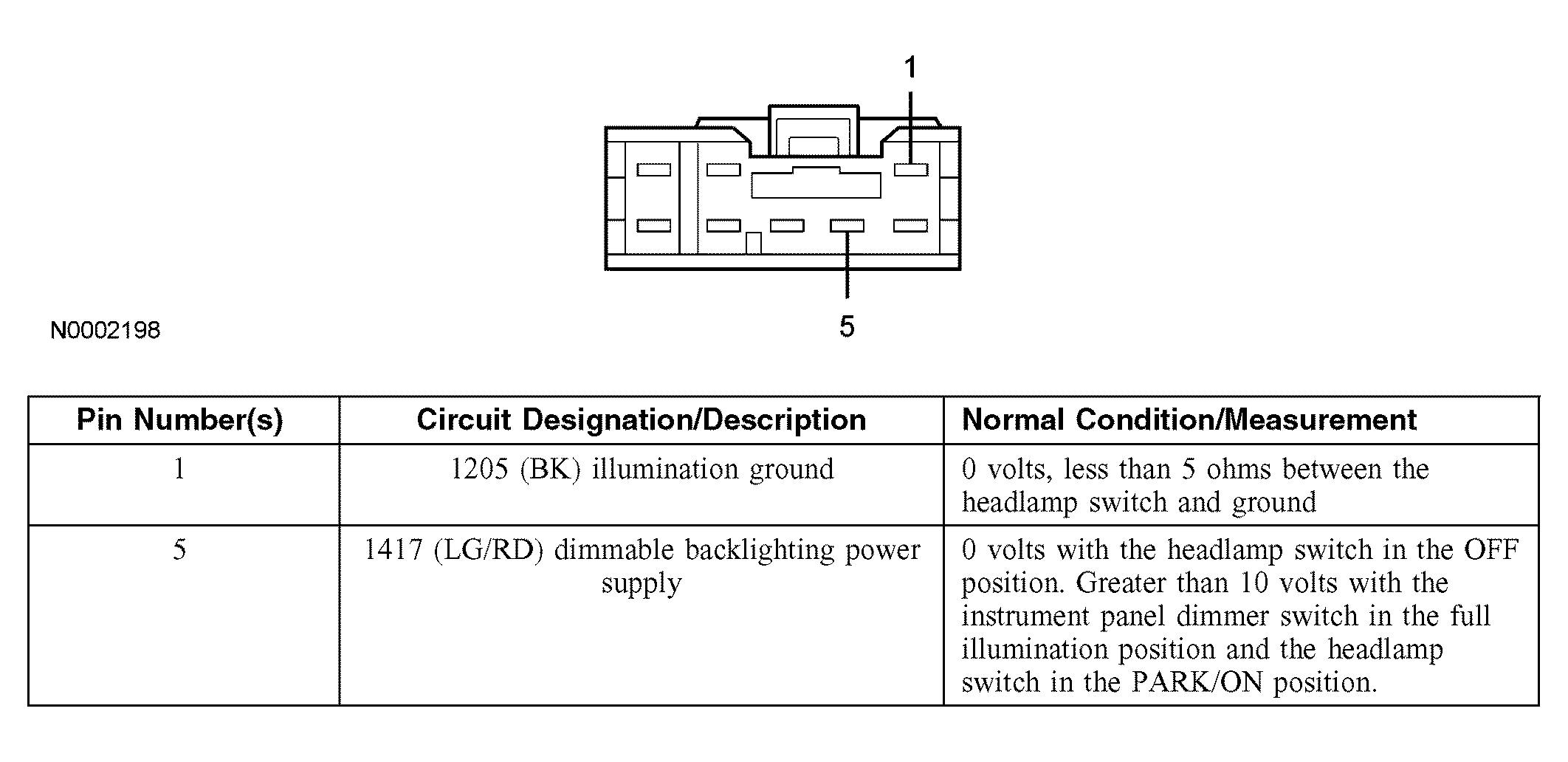

Fig 2: Identifying Clockspring C218b Connector

G04005871

Courtesy of FORD MOTOR CO.

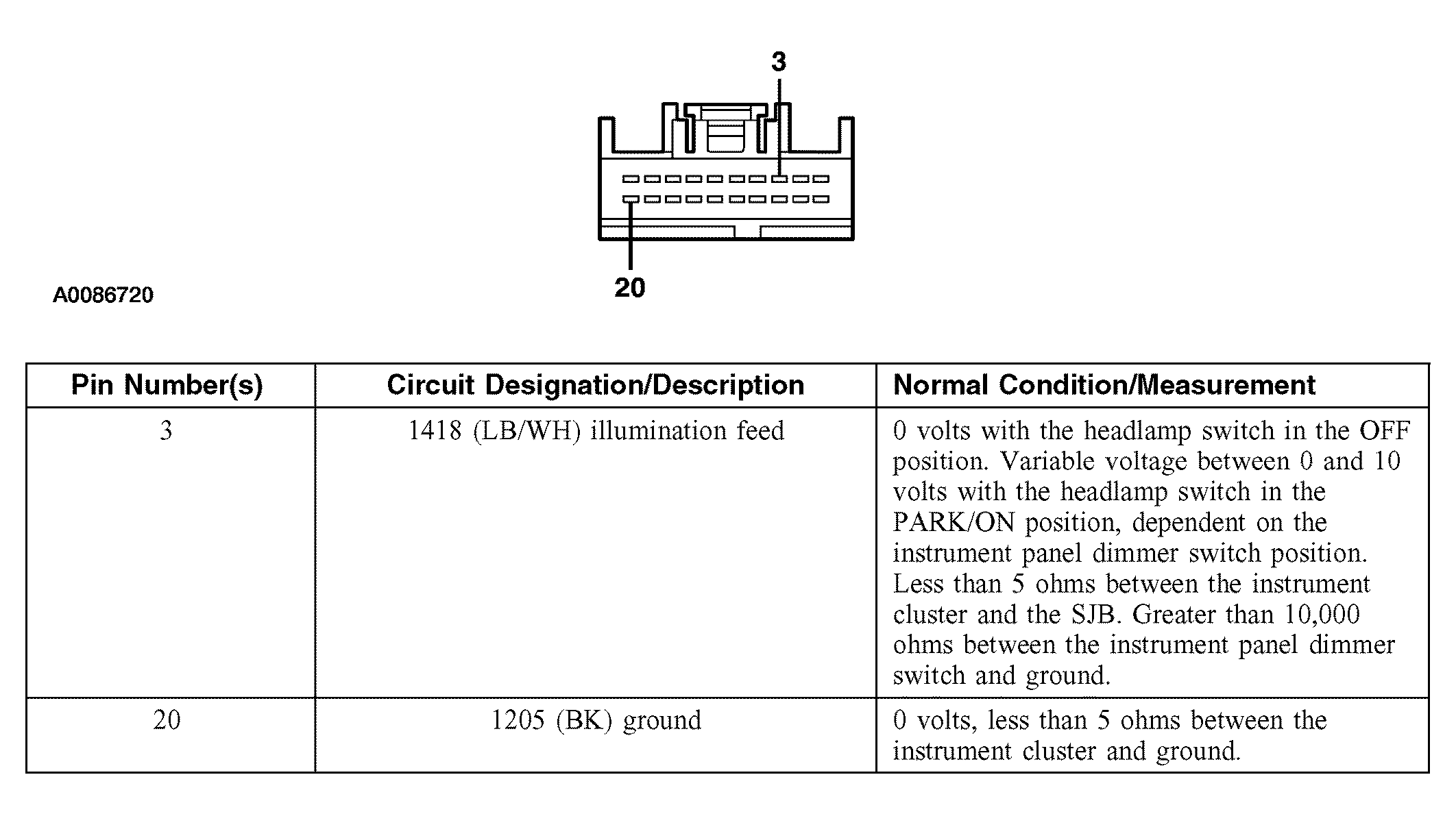

Fig 3: Identifying Instrument Cluster C220Aa Connector

G04005872

Courtesy of FORD MOTOR CO.

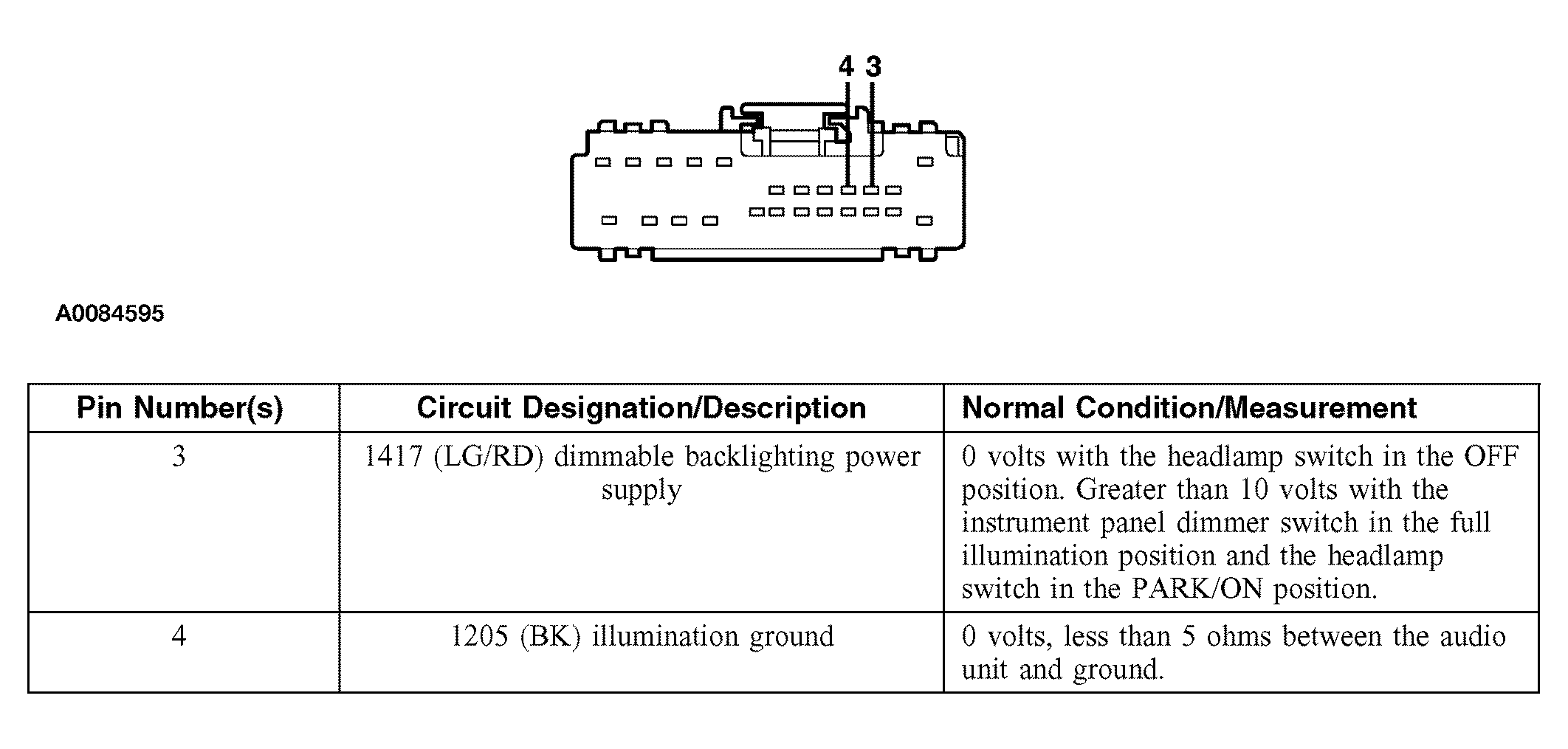

Fig 4: Identifying Audio Unit C240a Connector

G04005873

Courtesy of FORD MOTOR CO.

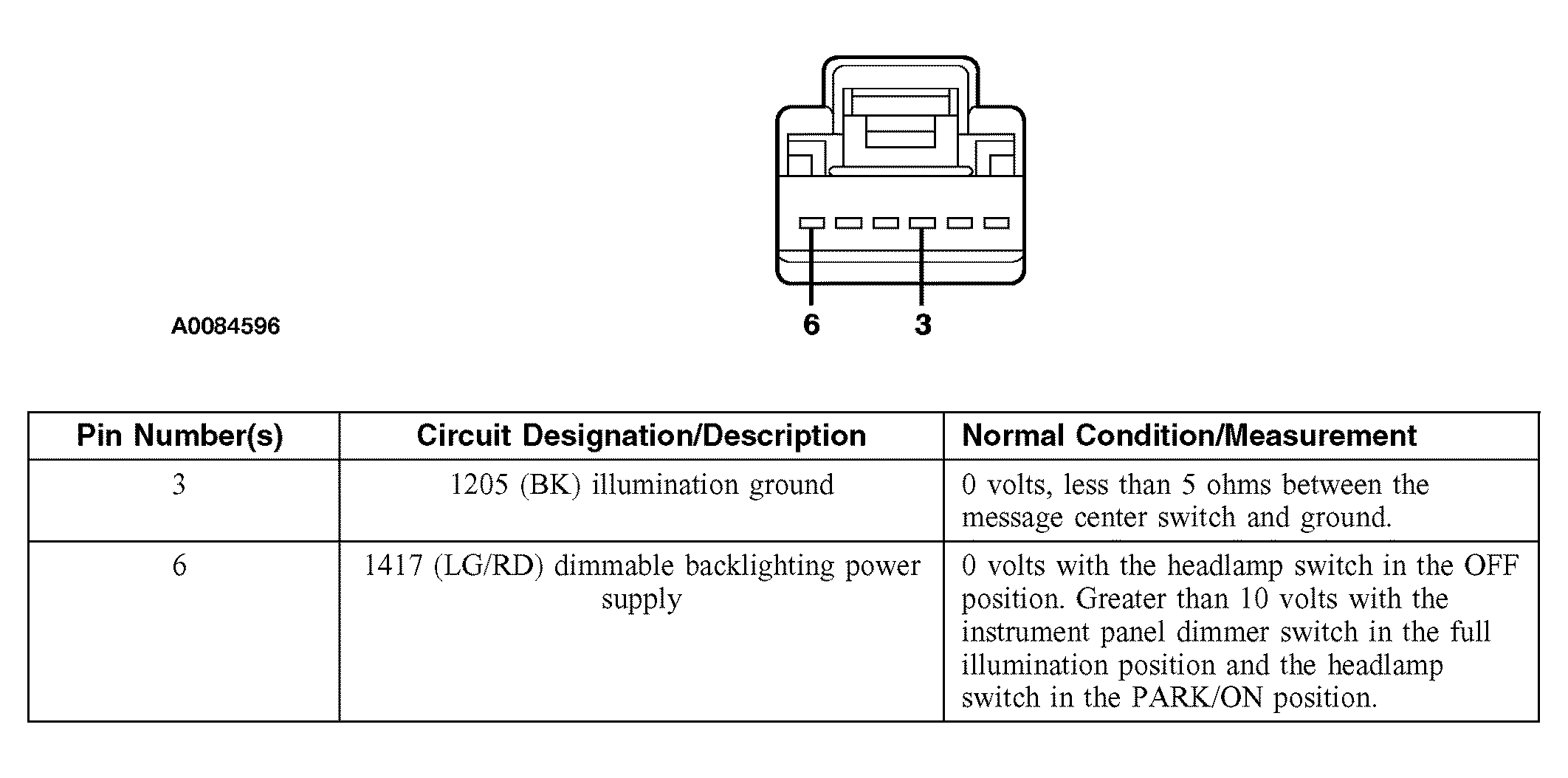

Fig 5: Identifying Message Center Switch C253 Connector

G04005874

Courtesy of FORD MOTOR CO.

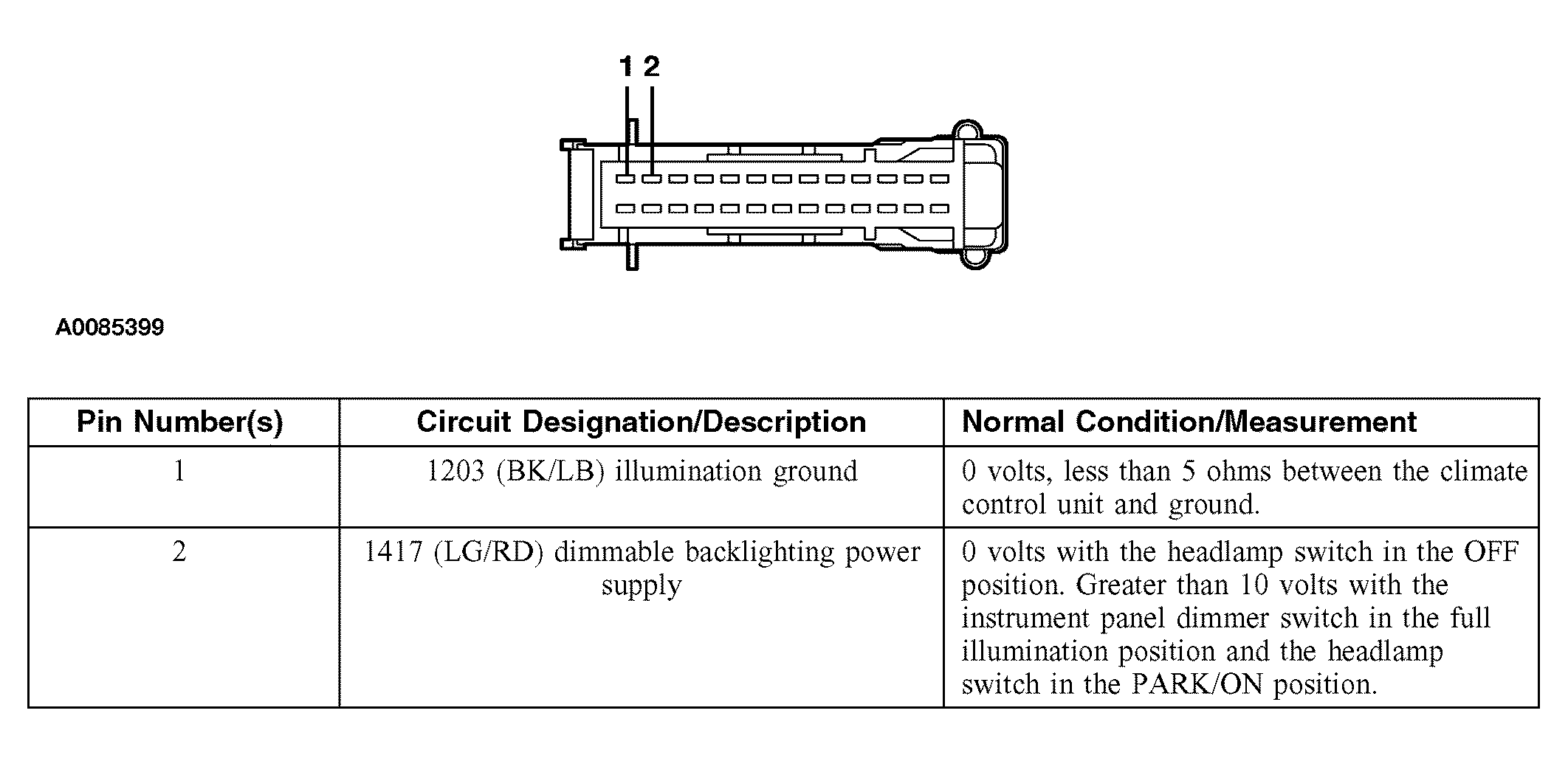

Fig 6: Identifying Climate Control C294a Connector

G04005875

Courtesy of FORD MOTOR CO.

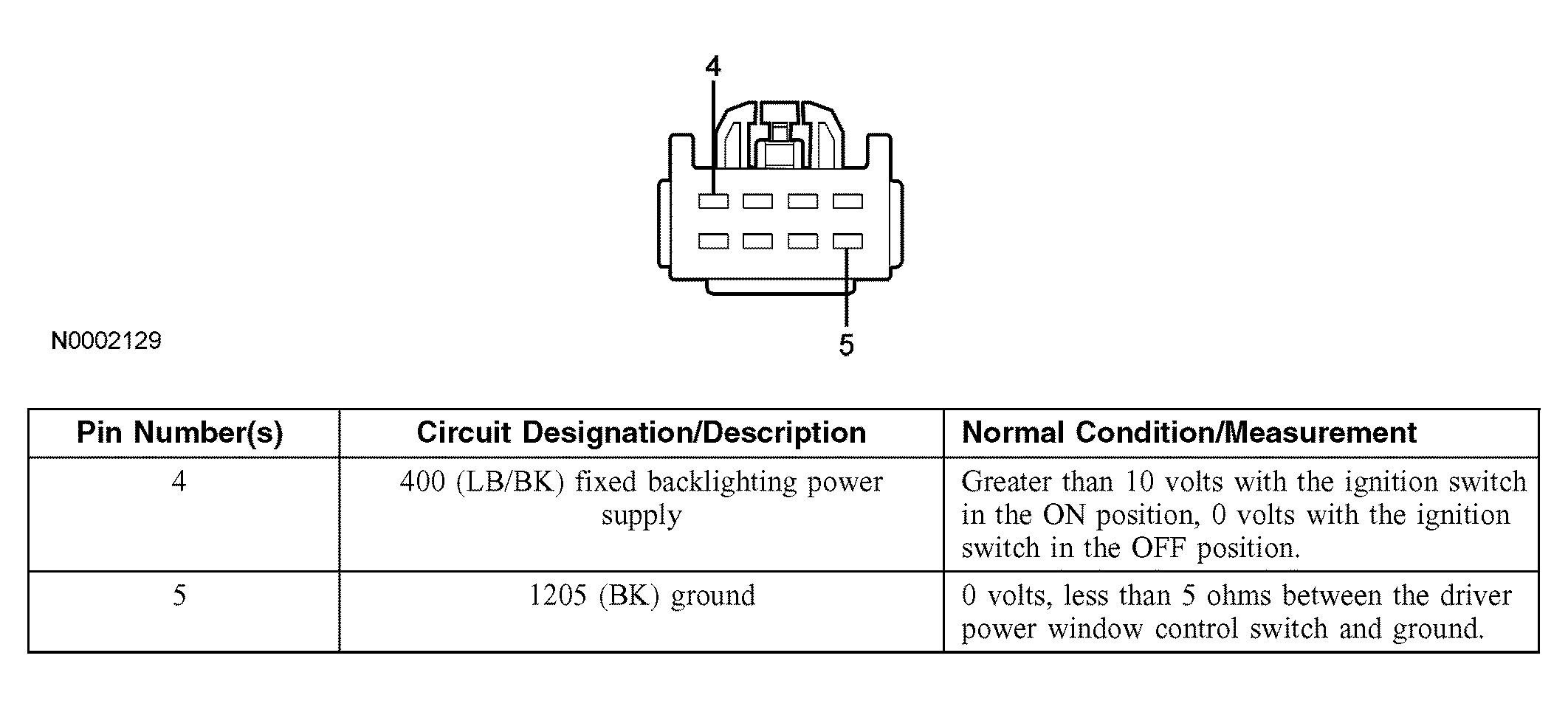

Fig 7: Identifying Driver Power Window Control Switch C508a Connector

G04005876

Courtesy of FORD MOTOR CO.

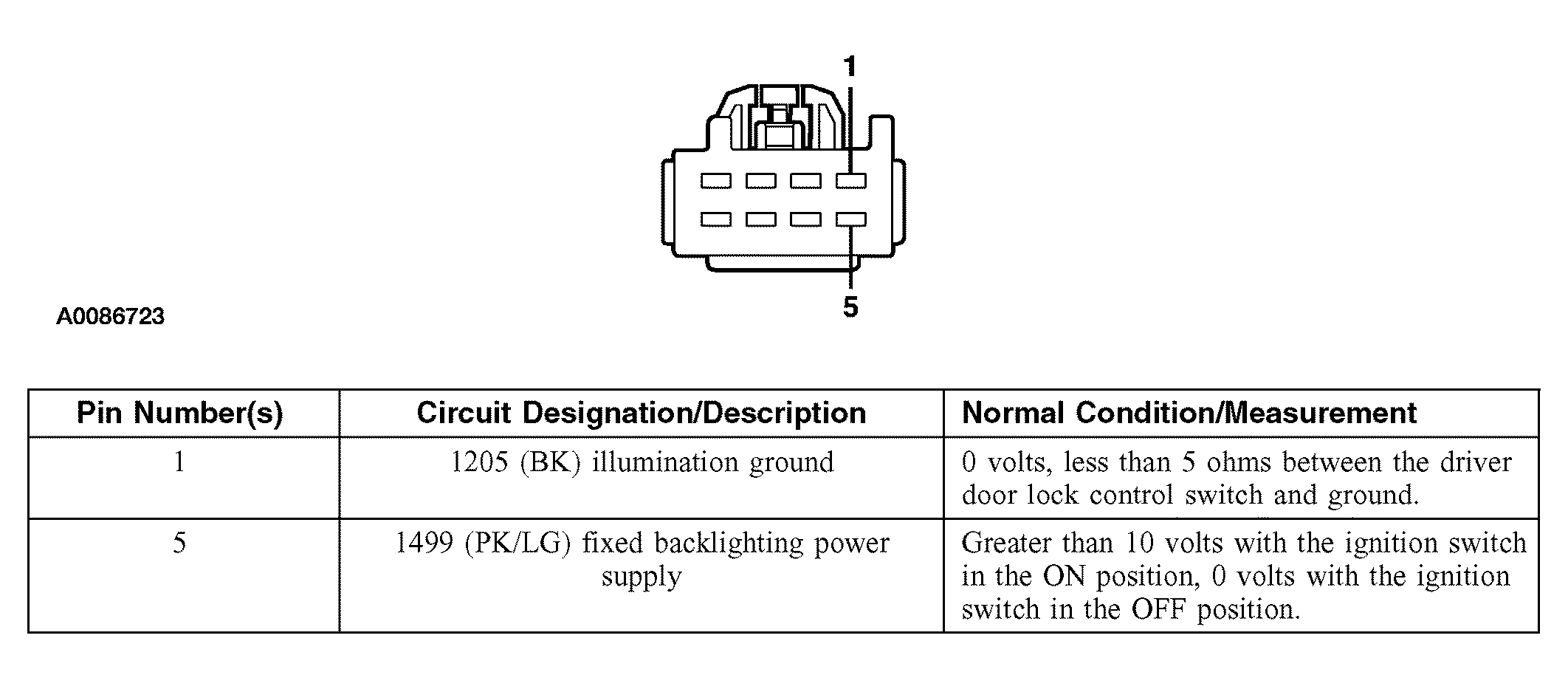

Fig 8: Identifying Driver Door Lock Control Switch C508b Connector

G04005877

Courtesy of FORD MOTOR CO.

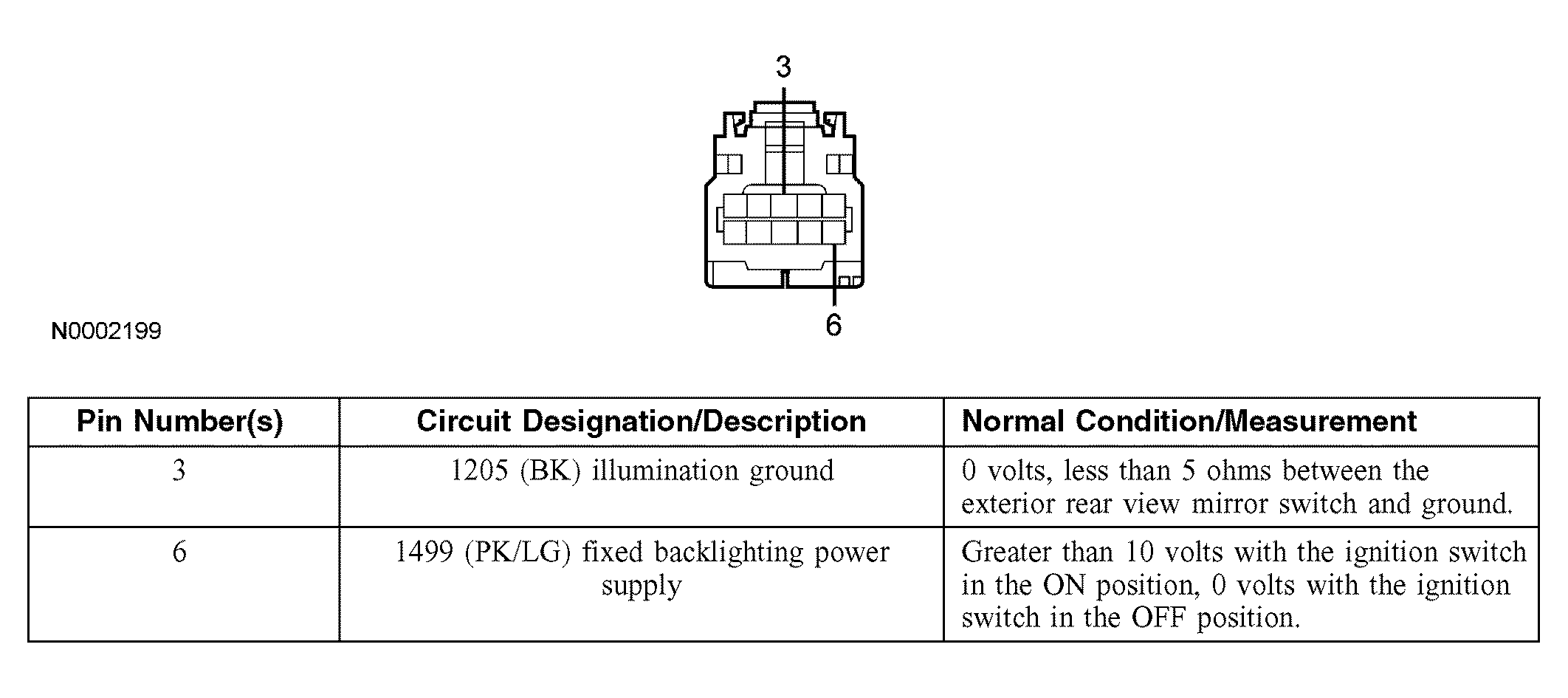

Fig 9: Identifying Exterior Rear View Mirror Switch C527 Connector

G04005878

Courtesy of FORD MOTOR CO.

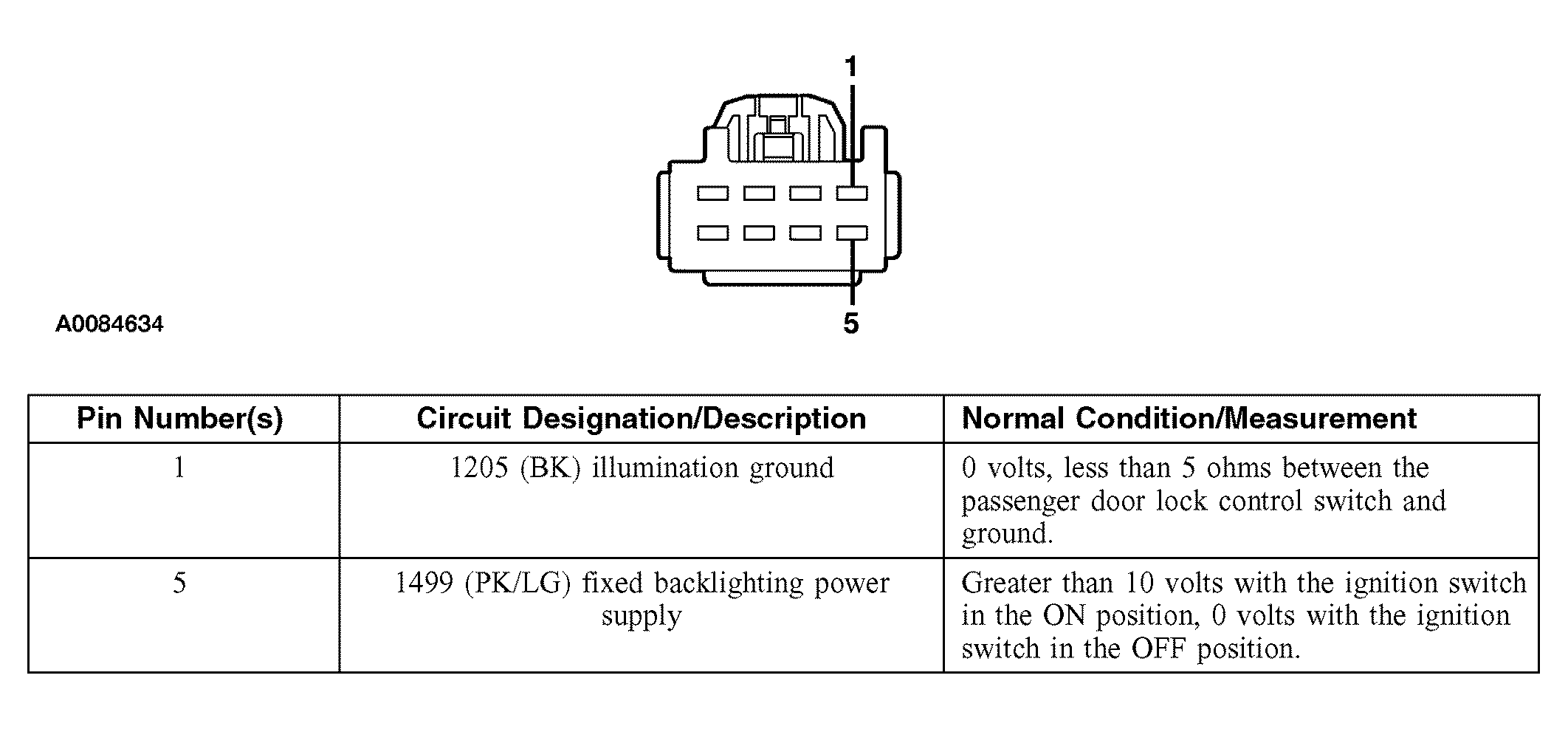

Fig 10: Identifying Passenger Door Lock Control Switch C605 Connector

G04005879

Courtesy of FORD MOTOR CO.

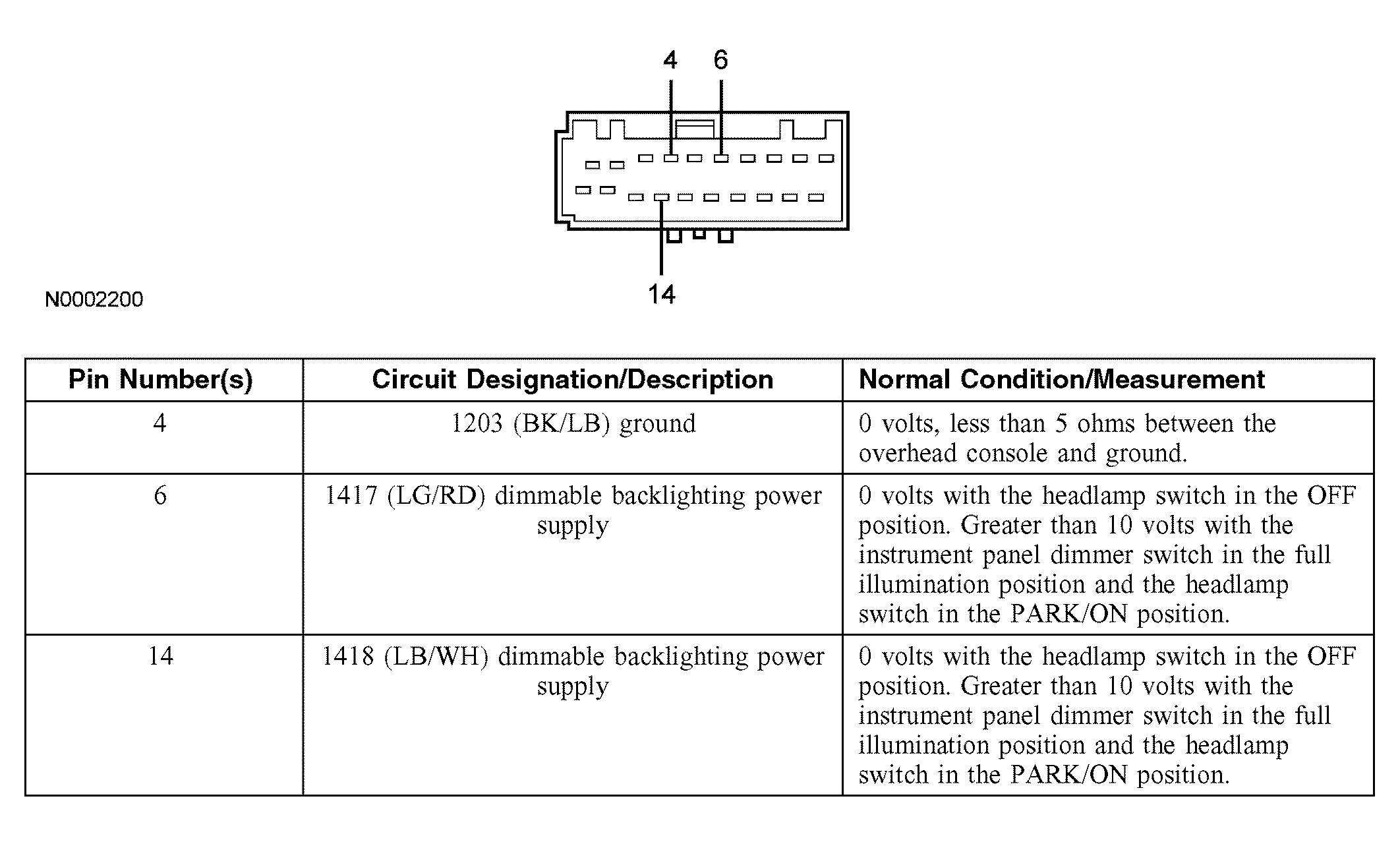

Fig 11: Identifying Overhead Console C930 Connector

G04005880

Courtesy of FORD MOTOR CO.

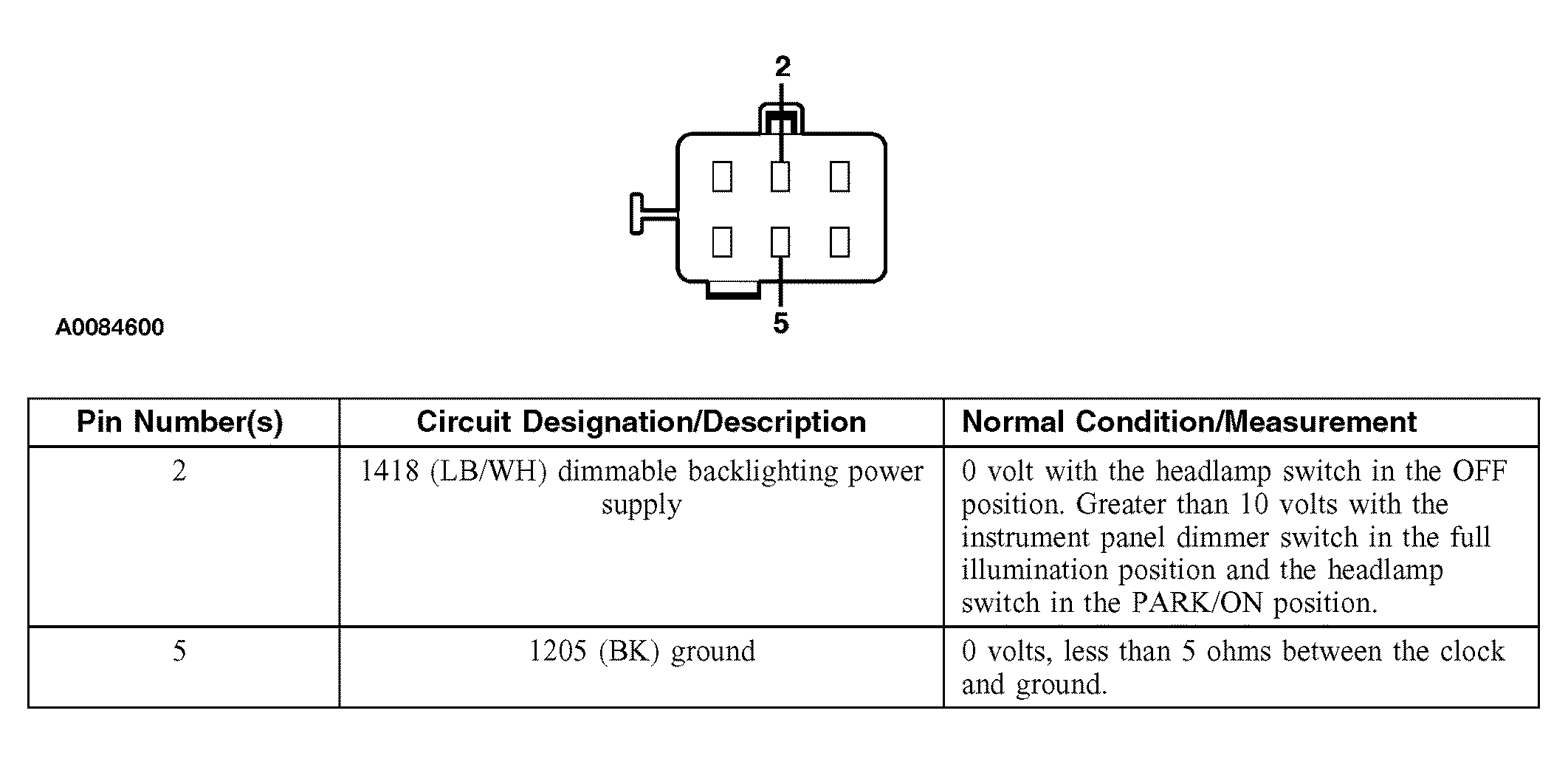

Fig 12: Identifying Clock C2016 Connector

G04005881

Courtesy of FORD MOTOR CO.

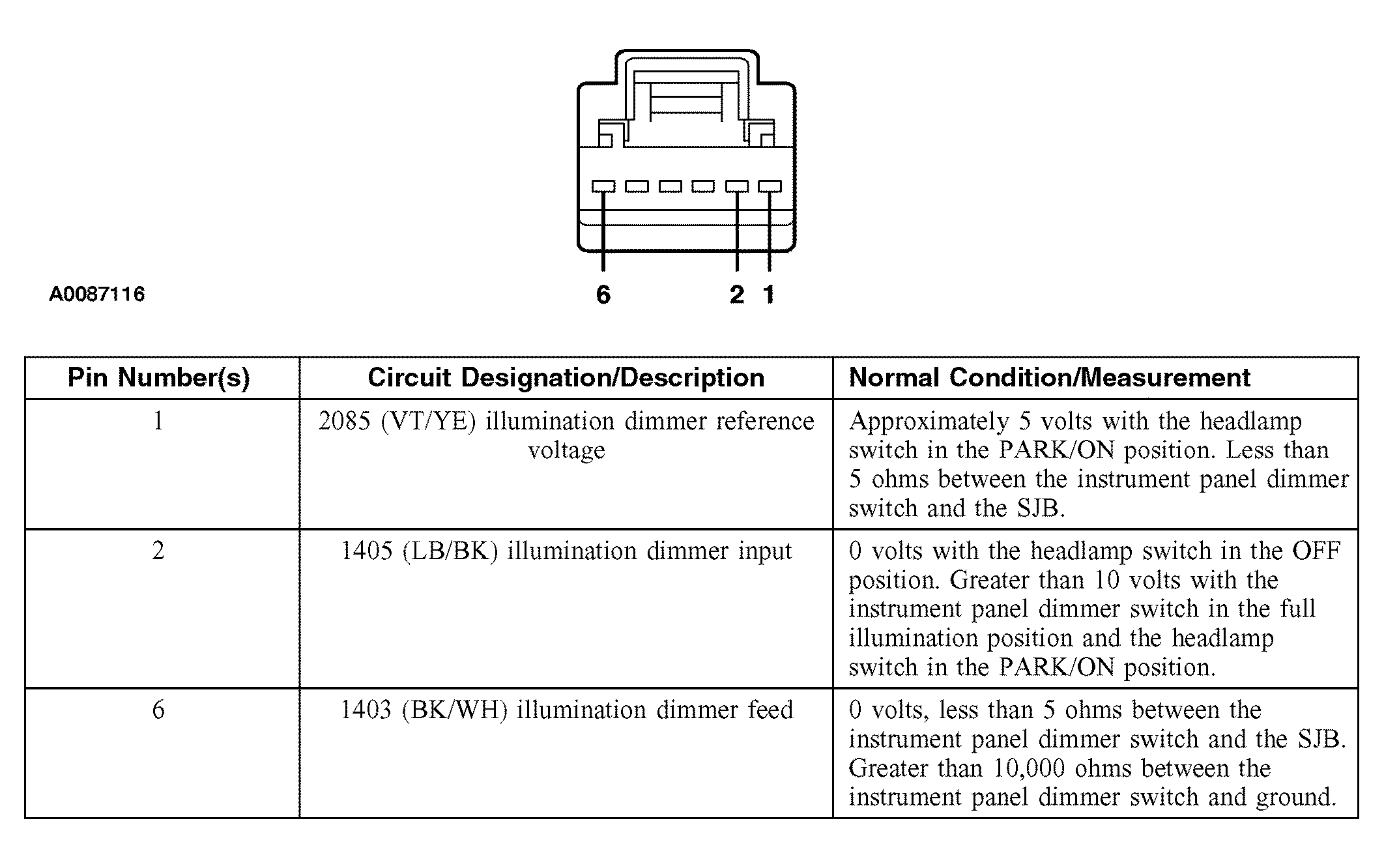

Fig 13: Identifying Instrument Panel Dimmer Switch C2065 Connector

G04005882

Courtesy of FORD MOTOR CO.

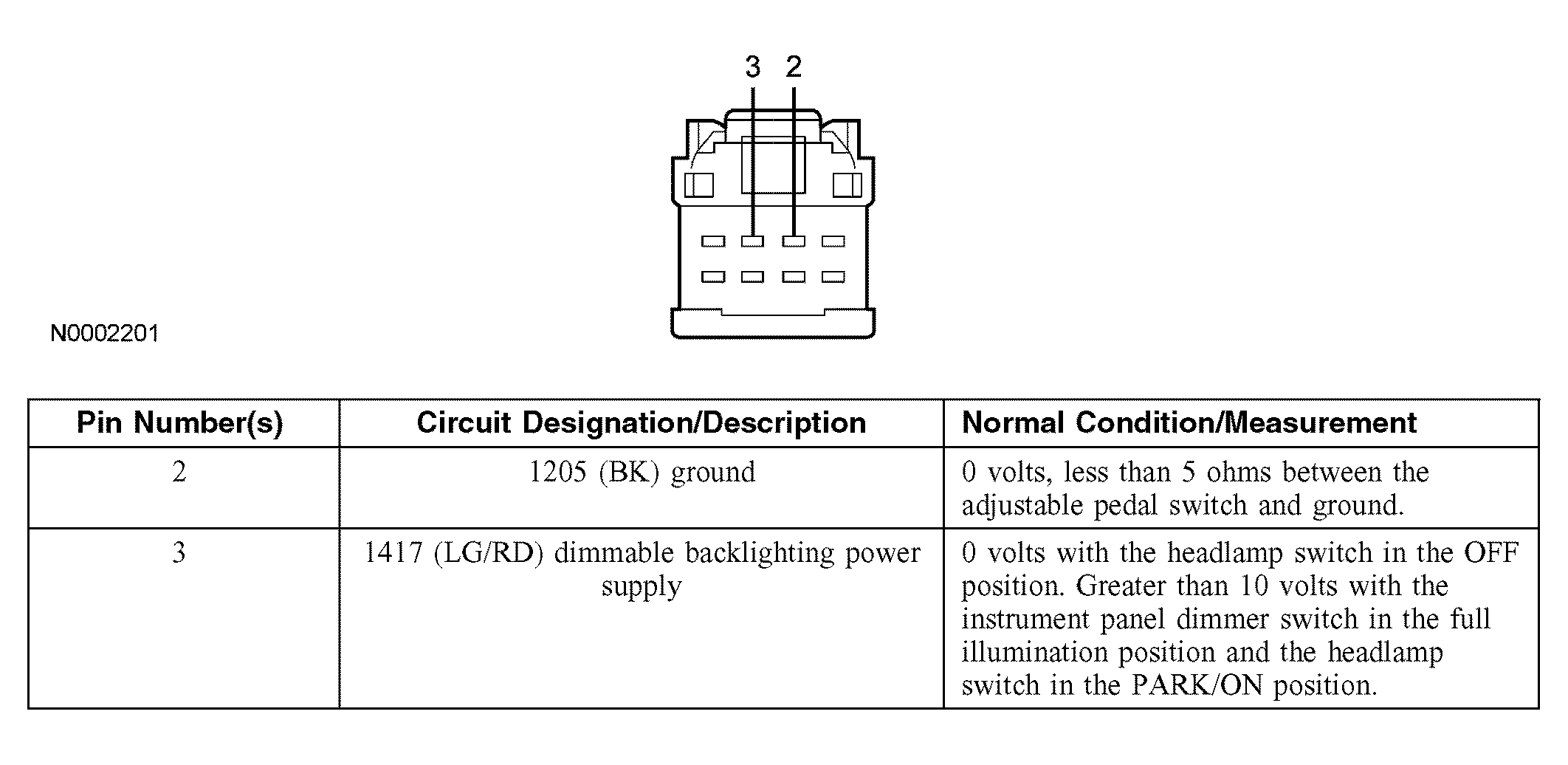

Fig 14: Identifying Adjustable Pedal Switch C2089 Connector

G04005883

Courtesy of FORD MOTOR CO.

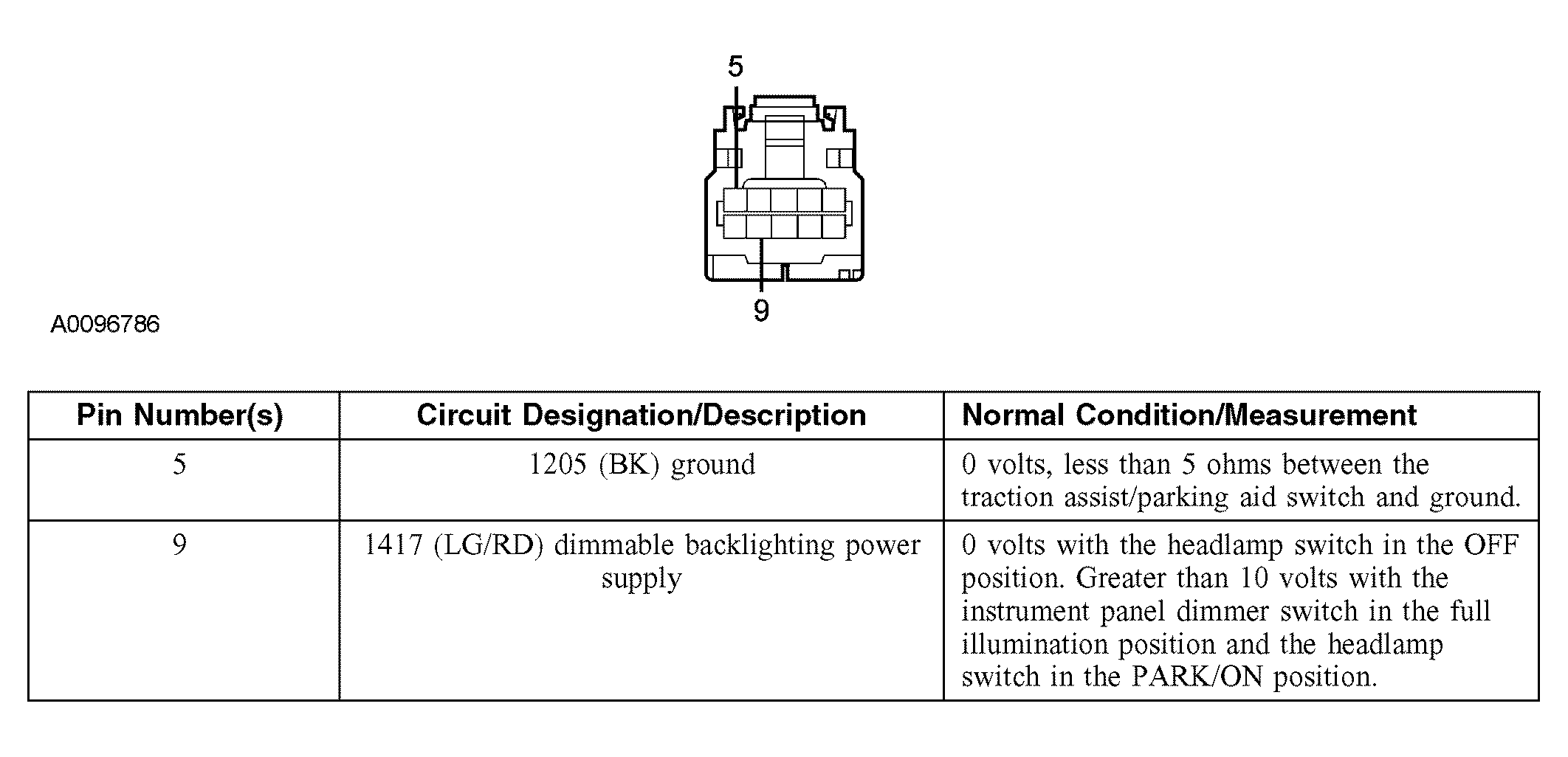

Fig 15: Identifying Traction Assist/Parking Aid Switch C2114 Connector

G04005884

Courtesy of FORD MOTOR CO.

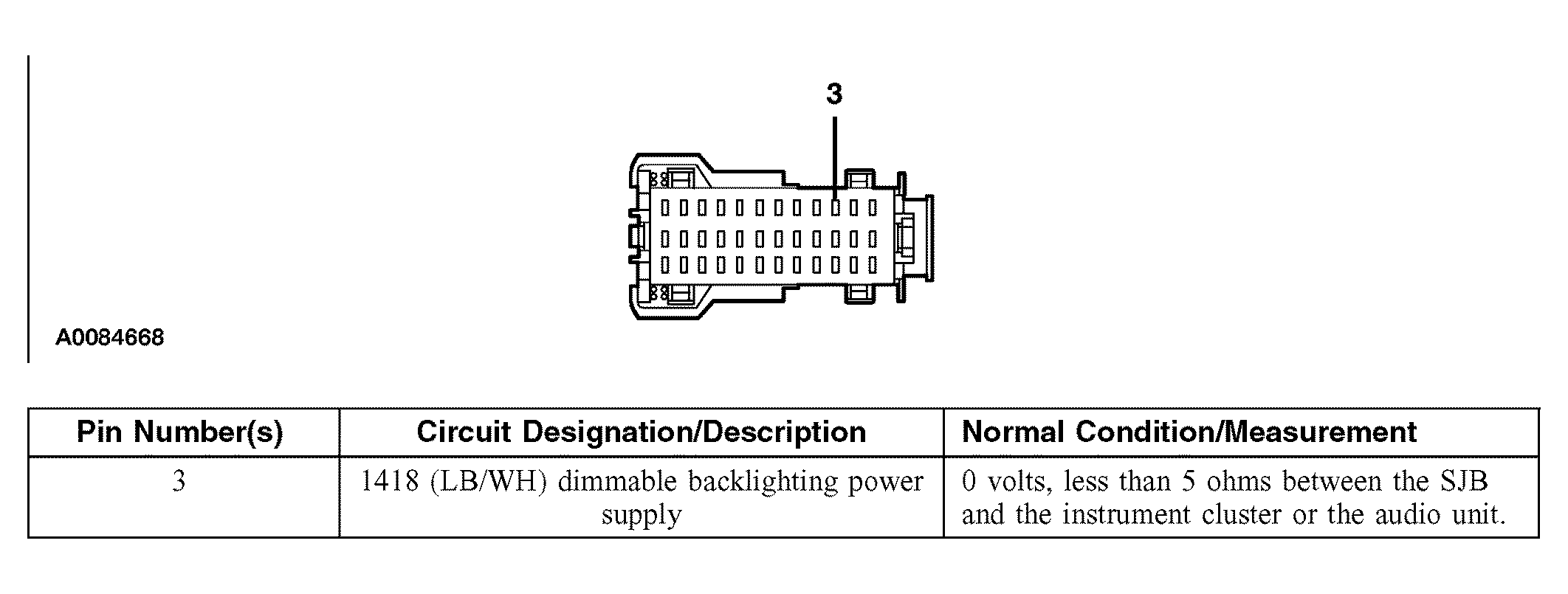

Fig 16: Identifying Smart Junction Box (SJB) C2280a Connector

G04005885

Courtesy of FORD MOTOR CO.

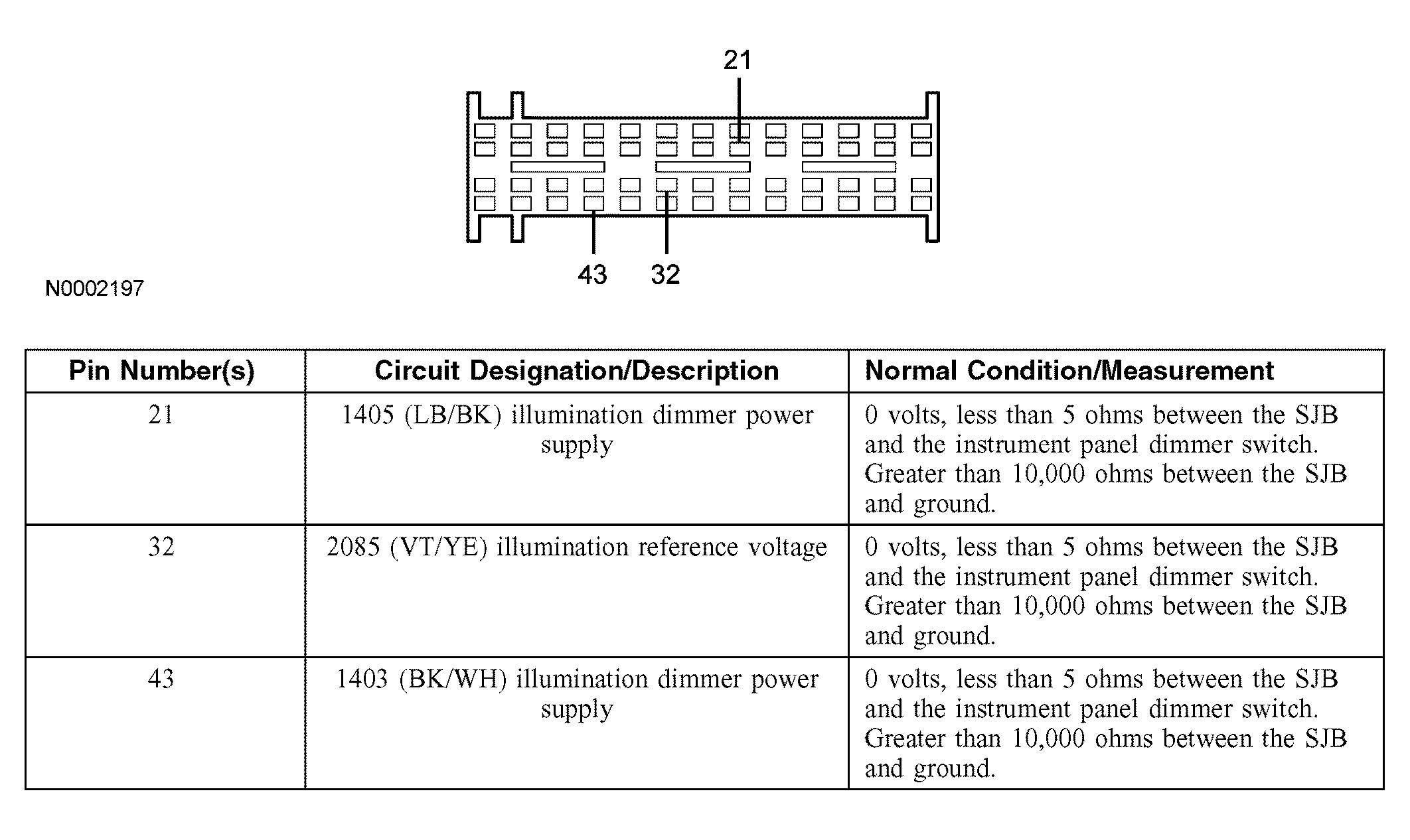

Fig 17: Identifying Smart Junction Box (SJB) C2280b Connector

G04005886

Courtesy of FORD MOTOR CO.

Fig 18: Identifying Vent Window Control Switch C2981 Connector

G04005887

Courtesy of FORD MOTOR CO.

Fig 19: Identifying Memory Set Switch C9023 Connector

G04005888

Courtesy of FORD MOTOR CO.

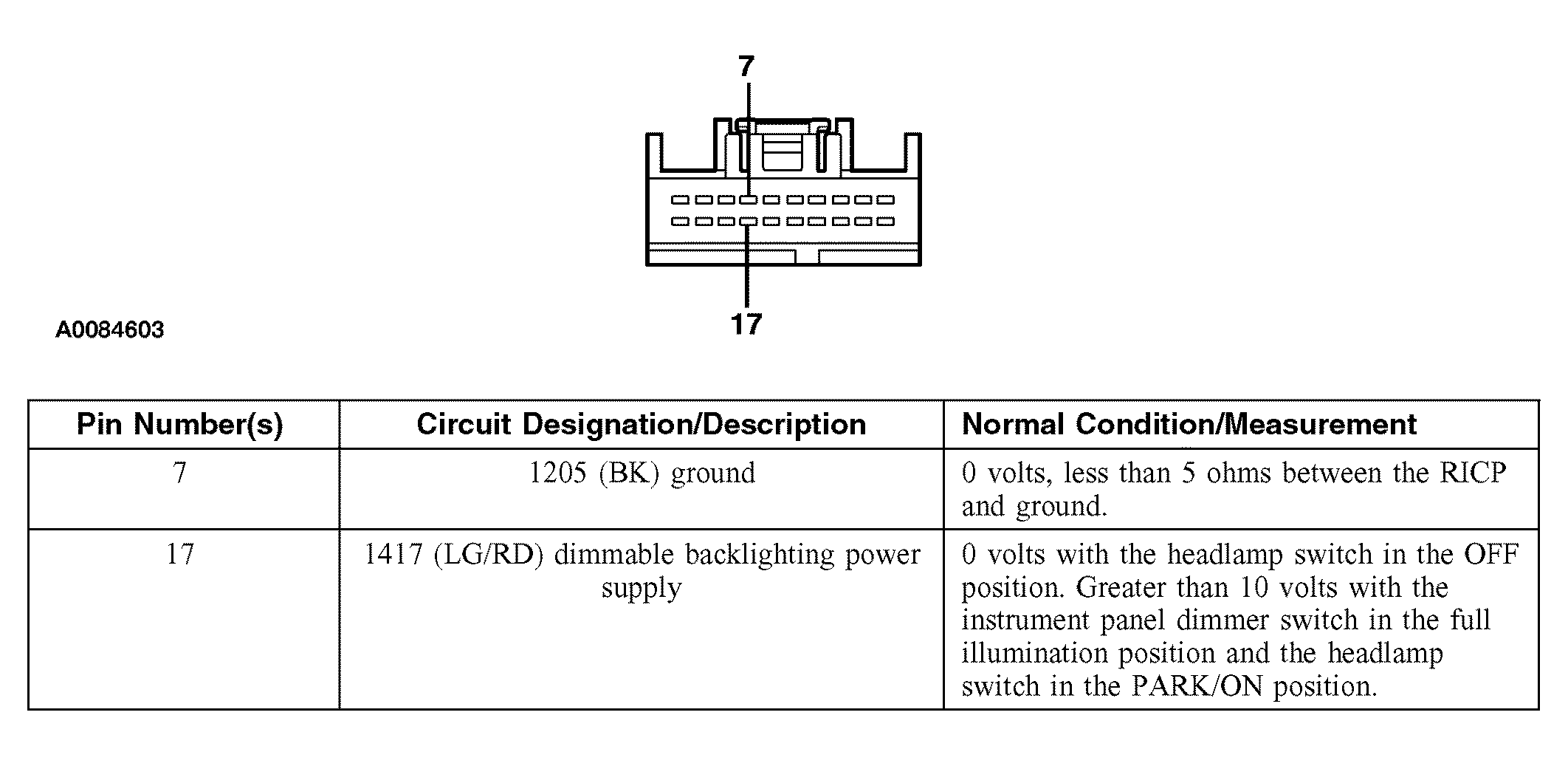

Fig 20: Identifying Rear Integrated Control Panel (RICP) C9025 Connector

G04005889

Courtesy of FORD MOTOR CO.
