Brake Pedal and Bracket: Notes

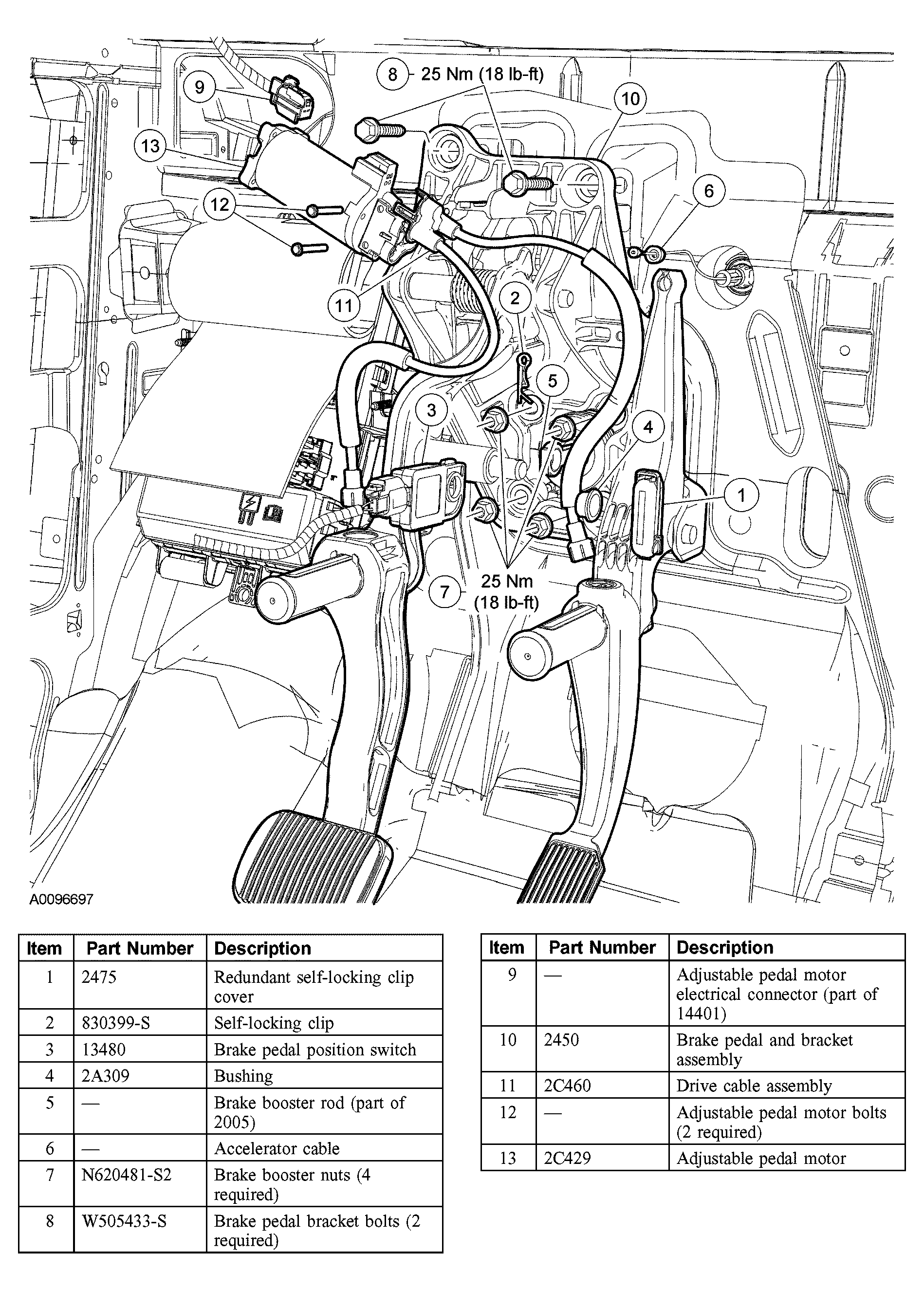

Fig 1: Identifying Brake Pedal And Bracket Component

G04000636

Courtesy of FORD MOTOR CO.
