Brake Fluid Reservoir: Material

MATERIAL SPECIFICATION

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) ESA-M6C25-A

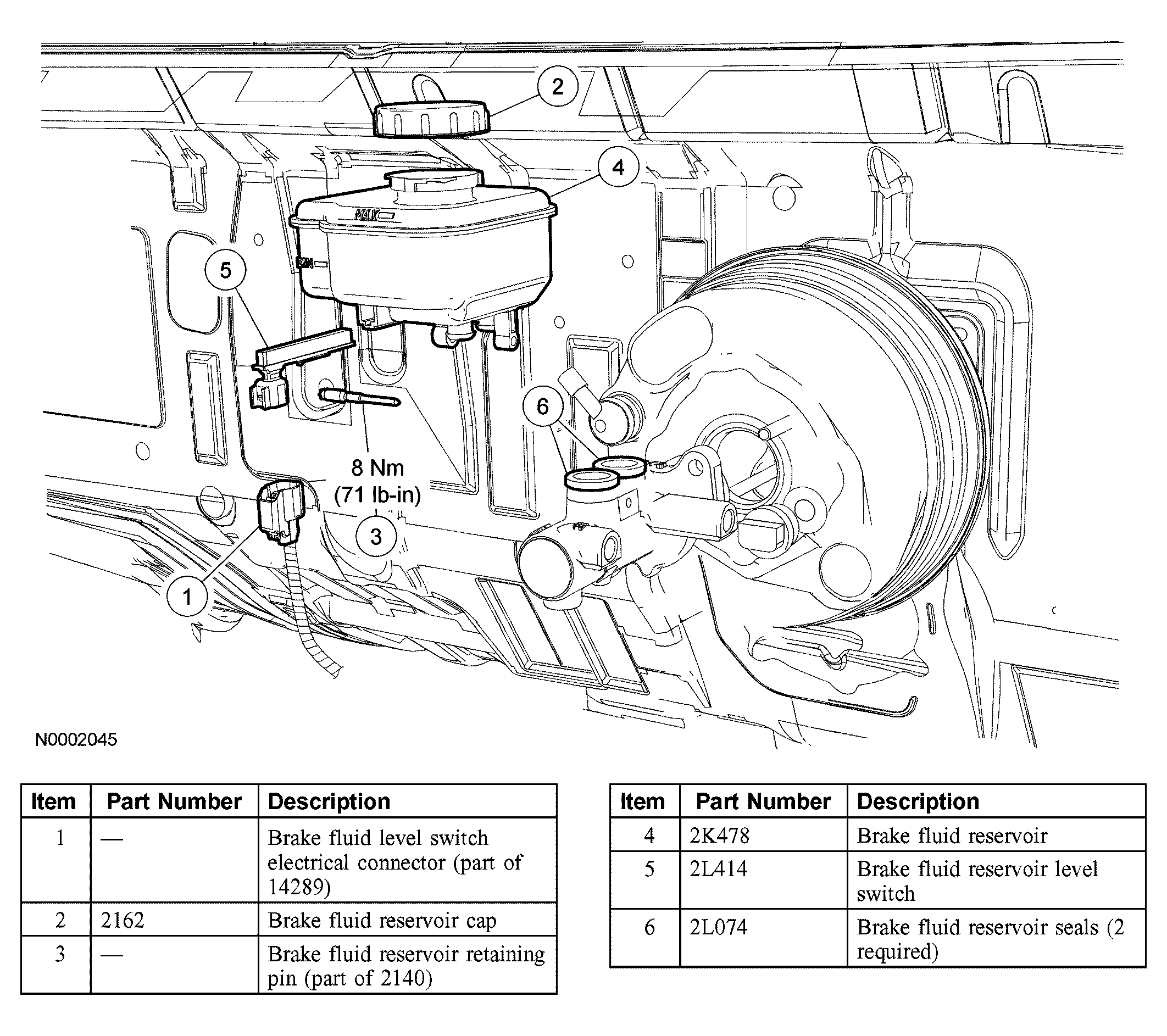

Fig 1: Identifying Brake Fluid Reservoir Component
G04000639Courtesy of FORD MOTOR CO.
