Pinpoint Test Q: The RH Turn Signal Indicator Is Never/Always On

Q1 VERIFY THE TURN SIGNAL OPERATION
- Key in ON position.
- Verify the exterior turn signal operation.
- Do the exterior turn signals operate correctly?
  - Yes : GO to Q2.
  - No : REFER to EXTERIOR LIGHTING to continue diagnosis of the turn signals.
Q2 DETERMINE THE CONDITION
- Observe the RH turn signal operation.
- Is the RH turn signal inoperative?
  - Yes : GO to Q3.
  - No : If the RH turn signal indicator is always on, GO to Q5.
Q3 CHECK CIRCUIT 49S-LG22 (BU/YE) FOR VOLTAGE
- Key in OFF position.
- Disconnect: Instrument Cluster C2220.
- Key in ON position.
- Place the multifunction switch in the RH turn signal position.
- Measure the voltage between the instrument cluster C2220 pin 10, circuit 49S-LG22 (BU/YE), harness side and ground.

  Fig 1: Measuring Voltage Between Instrument Cluster C2220 Pin 10, Circuit 49S-LG22 (BU/YE), Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- Does the voltage fluctuate between 0 and greater than 10 volts?
  - Yes : GO to Q7.
  - No : GO to Q4.
Q4 CHECK CIRCUIT 49S-LG22 (BU/YE) FOR AN OPEN OR SHORT TO GROUND
- Key in OFF position.
- Disconnect: Generic Electronic Module (GEM) C201d.
- Measure the resistance between the instrument cluster C2220 pin 10, circuit 49S-LG22 (BU/YE), harness side and the GEM C201d pin 2, circuit 49S-LG22 (BU/YE), harness side; and between the instrument cluster C2220 pin 10, circuit 49S-LG22 (BU/YE), harness side and ground.

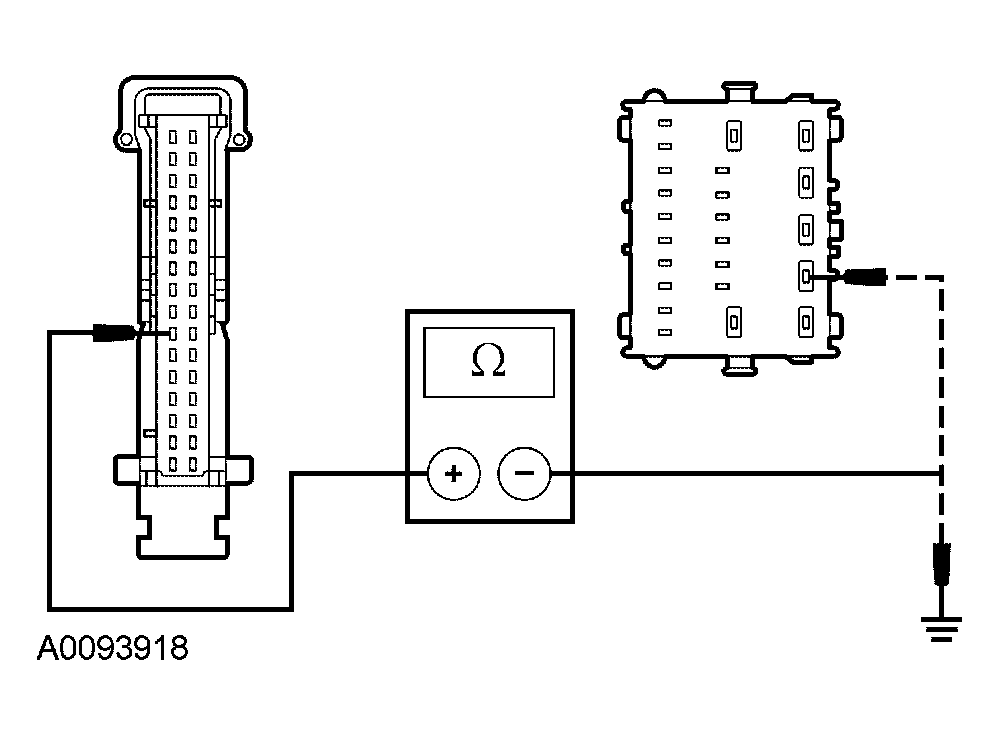

  Fig 2: Checking Circuit 49S-LG22 (BU/YE) For An Open Or Short To Ground
  Courtesy of FORD MOTOR CO.
- Is the resistance less than 5 ohms between the instrument cluster and the GEM, and greater than 10,000 ohms between the instrument cluster and ground?
  - Yes : GO to Q8.
  - No : REPAIR the circuit. TEST the system for normal operation.
Q5 CHECK CIRCUIT 49S-LG22 (BU/YE) FOR A SHORT TO POWER
- Key in OFF position.
- Disconnect: Instrument Cluster C2220.
- Key in ON position.
- Measure the voltage between the instrument cluster C2220 pin 10, circuit 49S-LG22 (BU/YE), harness side and ground.

  Fig 3: Measuring Voltage Between Instrument Cluster C2220 Pin 10, Circuit 49S-LG22 (BU/YE), Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- Is any voltage present?
  - Yes : GO to Q6.
  - No : GO to Q7.
Q6 CHECK CIRCUIT 49S-LG22 (BU/YE) FOR A SHORT
- Key in OFF position.
- Disconnect: Instrument Cluster C2220.
- Disconnect: GEM C201d.
- Key in ON position.
- Measure the voltage between the instrument cluster C2220 pin 10, circuit 49S-LG22 (BU/YE), harness side and ground.

  Fig 4: Measuring Voltage Between Instrument Cluster C2220 Pin 10, Circuit 49S-LG22 (BU/YE), Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- Is any voltage present?
  - Yes : REPAIR the circuit. TEST the system for normal operation.
  - No : GO to Q8.
Q7 CHECK FOR CORRECT INSTRUMENT CLUSTER OPERATION
- Disconnect the instrument cluster connector.
- Check for:
  - Corrosion
  - Pushed-out pins
- Connect the instrument cluster connector and make sure it seats correctly.
- Operate the system and determine if the concern is still present.
- Is the concern still present?
  - Yes : INSTALL a new instrument cluster. REFER to INSTRUMENT CLUSTER . TEST the system for normal operation.
  - No : The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR the DTCs. TEST the system for normal operation.
Q8 CHECK FOR CORRECT GEM OPERATION
- Disconnect all the GEM connectors.
- Check for:
  - Corrosion
  - Pushed-out pins
- Connect all the GEM connectors and make sure they seat correctly.
- Operate the system and determine if the concern is still present.
- Is the concern still present?
  - Yes : INSTALL a new GEM. REFER to MULTIFUNCTION ELECTRONIC MODULES . TEST the system for normal operation.
  - No : The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR the DTCs. TEST the system for normal operation.
