Removal and Installation

All vehicles

Position the instrument panel lower panel aside.
- Remove the screws.
- Release the fastener.
Fig 1: Locating Instrument Panel Lower Panel Bolts - With Torque Specification
Courtesy of FORD MOTOR CO.
Disconnect the hood release cable and the data link connector (DLC) from the instrument panel lower panel and remove the lower panel.
- Loosen the hood release cable nut.
Fig 2: Loosening Hood Release Cable Nut
Courtesy of FORD MOTOR CO.
Disconnect the electrical connectors and twist to remove the following switches:
1. Speed control deactivation switch (if equipped)
2. Stop lamp switch
3. Clutch position switch (if equipped)
Fig 3: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.

Vehicles with manual transaxle

NOTE: The clutch position switch bracket is shown removed for clarity.

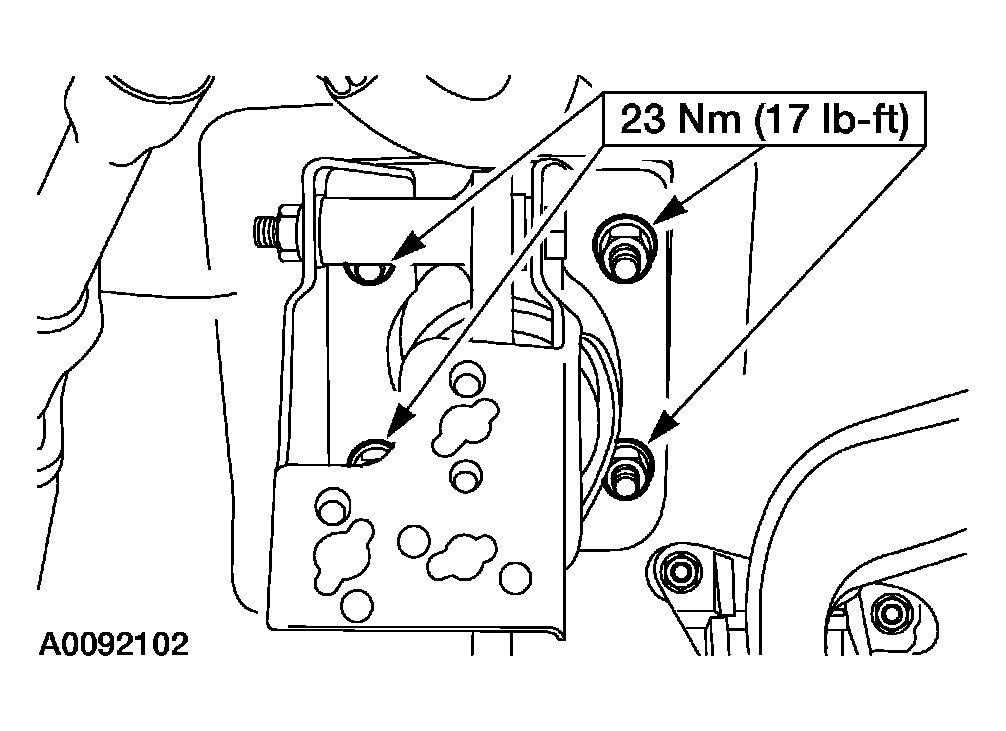

Fig 4: Removing Clutch Master Cylinder From Pedal Bracket

Courtesy of FORD MOTOR CO.

Remove the clutch master cylinder from the pedal bracket.
1. Remove the clip.
2. Remove the bolts.
Remove the clutch master cylinder actuating rod from the clutch pedal.

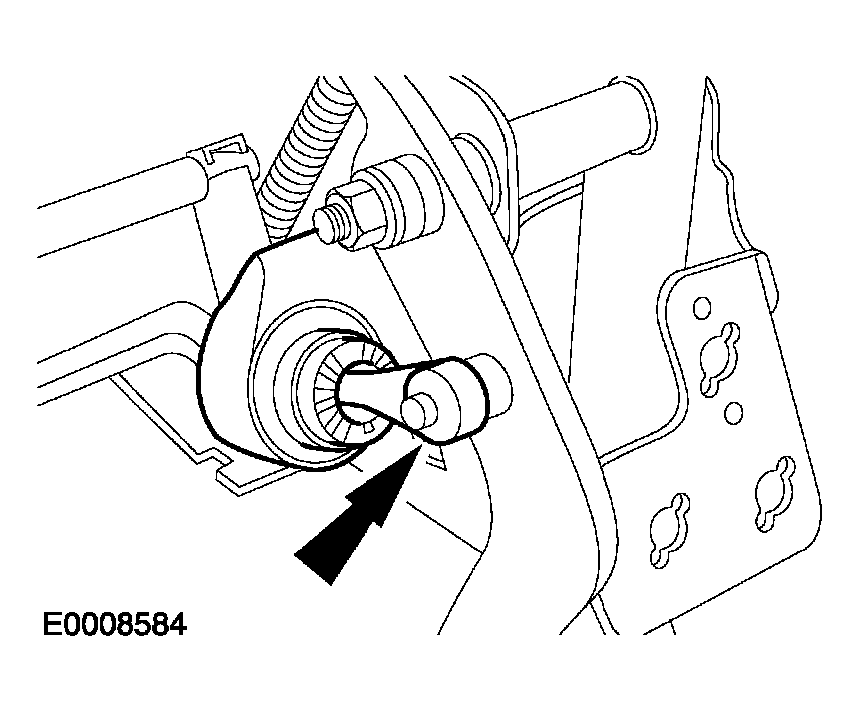

Fig 5: Removing Clutch Master Cylinder Actuating Rod From Clutch Pedal
Courtesy of FORD MOTOR CO.

All vehicles
Remove the brake booster retaining nuts.

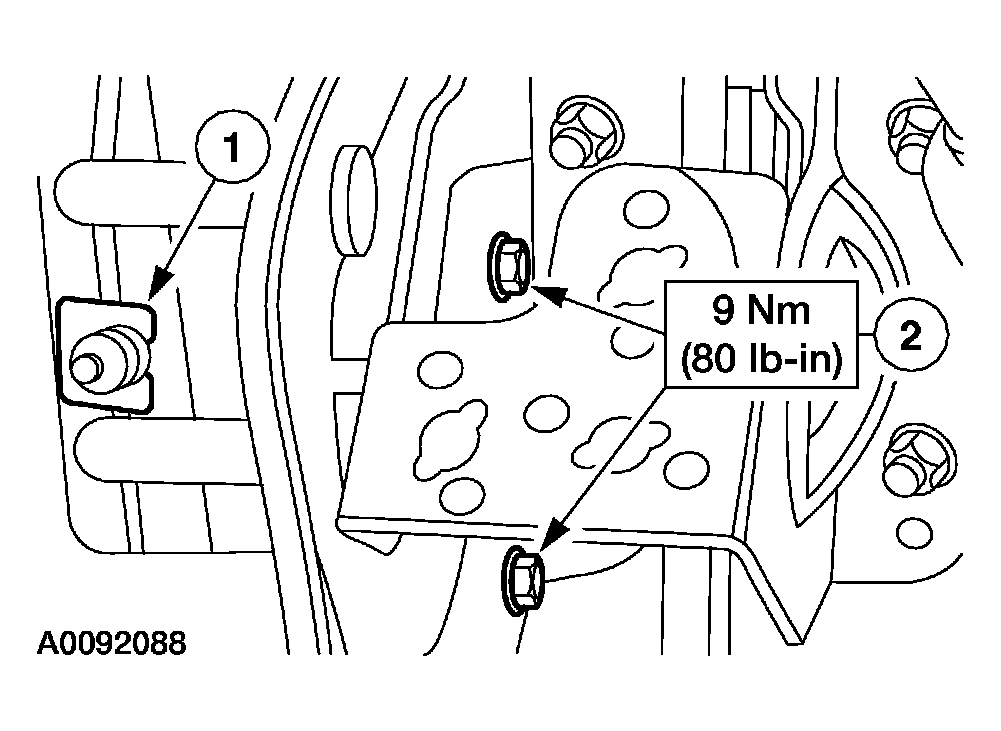

Fig 6: Removing Brake Booster Retaining Nuts
Courtesy of FORD MOTOR CO.
Remove the brake booster actuating rod from the brake pedal.
1. Apply the brake pedal.
2. Disengage the tab.
3. Remove and discard the brake booster actuating rod pin.

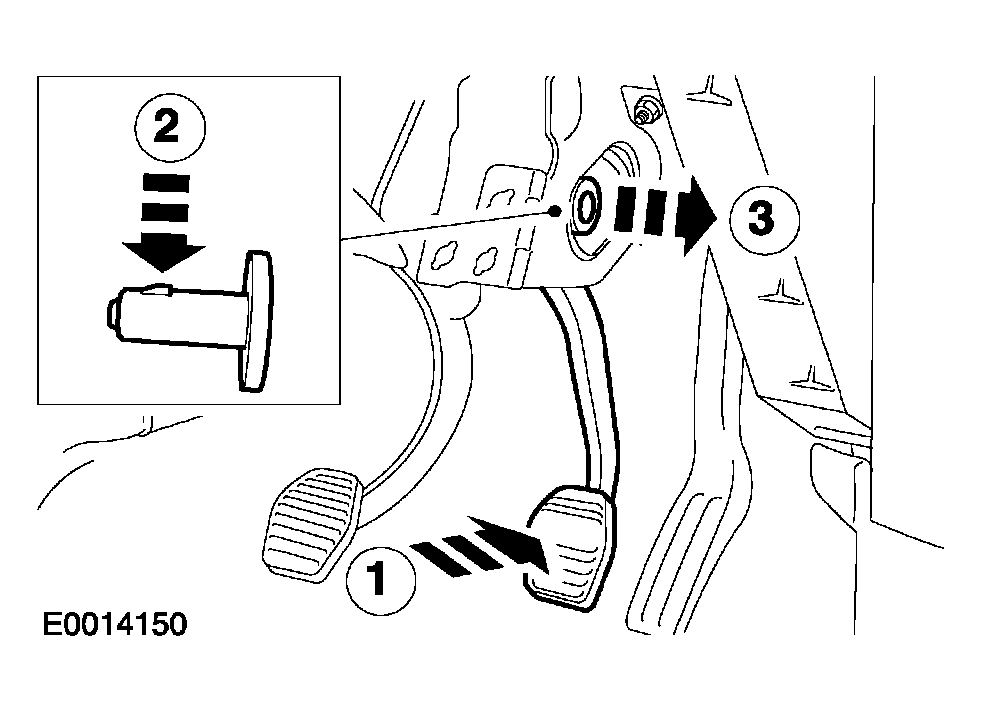

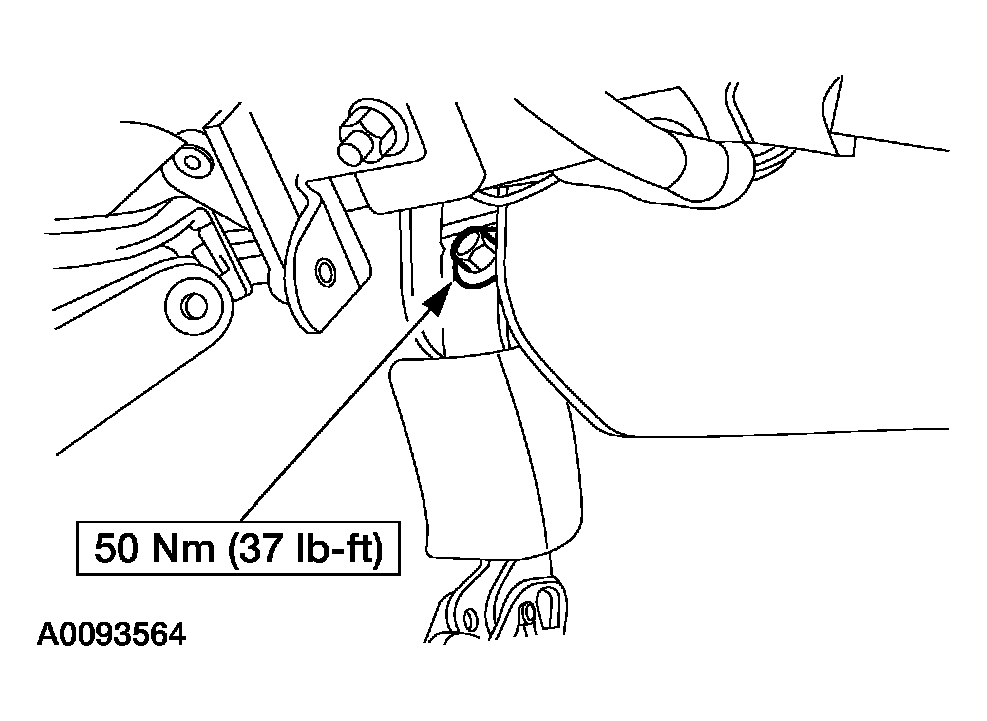

Fig 7: Removing Brake Booster Actuating Rod From Brake Pedal
Courtesy of FORD MOTOR CO.

Vehicles with automatic transaxle
Remove the brake pedal retractor arm retaining bolt.
- Remove the air duct, if necessary.
Fig 8: Removing Brake Pedal Retractor Arm Retaining Bolt
Courtesy of FORD MOTOR CO.

All vehicles
Remove the brake pedal bracket.

CAUTION: Install a new brake booster actuating rod pin.

NOTE: Make sure the brake pedal locates into the brake booster actuating rod clevis.
