Removal and Installation

WARNING: All safety belt assemblies including retractors, belt tension sensor (BTS), if equipped, buckles, shoulder belt height adjusters (if equipped) child safety seat tether attachments and attaching hardware should be inspected after any collision. All new belt assemblies should be installed unless a qualified technician finds the assemblies show no damage and operate correctly. Belt assemblies not in use during a collision should also be inspected and new assemblies installed if either damage or incorrect operation is noted.

Lift the rear seat cushion.
Detach the rear safety belt lower anchor bolt.

Fig 1: Detaching Rear Safety Belt Lower Anchor Bolt
Courtesy of FORD MOTOR CO.
Fold down the rear seat backrest.

CAUTION: Do not attempt to remove the safety belt retractor trim cover.

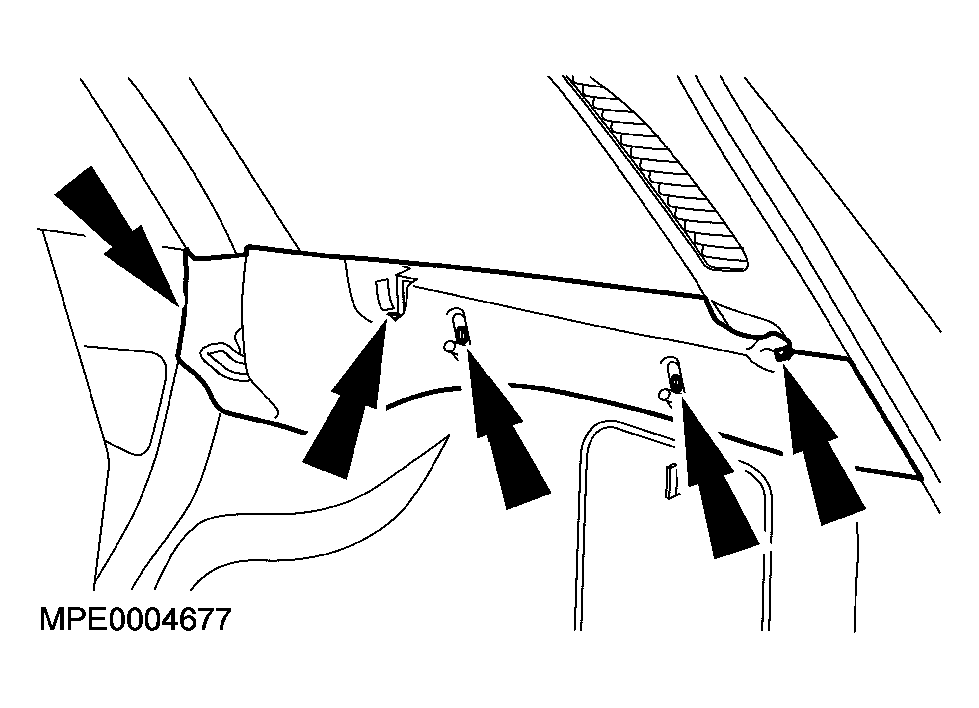

Fig 2: Removing Load Space Upper Trim Panel

Courtesy of FORD MOTOR CO.

Remove the load space upper trim panel.
- Remove the screws.
- Feed the safety belt webbing through the load space upper trim panel.

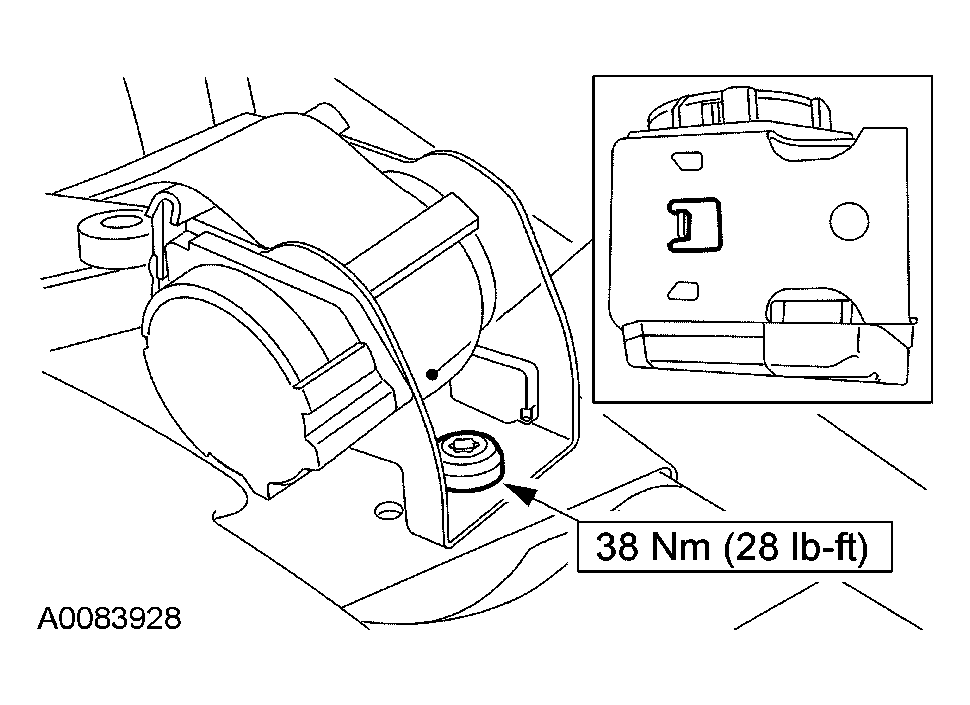

Remove the rear safety belt retractor anchor bolt.

Fig 3: Removing Rear Safety Belt Retractor Anchor Bolt
Courtesy of FORD MOTOR CO.

CAUTION: Make sure the safety belt retractor locator tab is correctly located.

To install, reverse the removal procedure.
Check the active restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
