Removal and Installation
WARNING:
All safety belt assemblies including retractors, belt tension sensor (BTS), if equipped, buckles, shoulder belt height adjusters (if equipped) child safety seat tether attachments and attaching hardware should be inspected after any collision. All new belt assemblies should be installed unless a qualified technician finds the assemblies show no damage and operate correctly. Belt assemblies not in use during a collision should also be inspected and new assemblies installed if either damage or incorrect operation is noted.

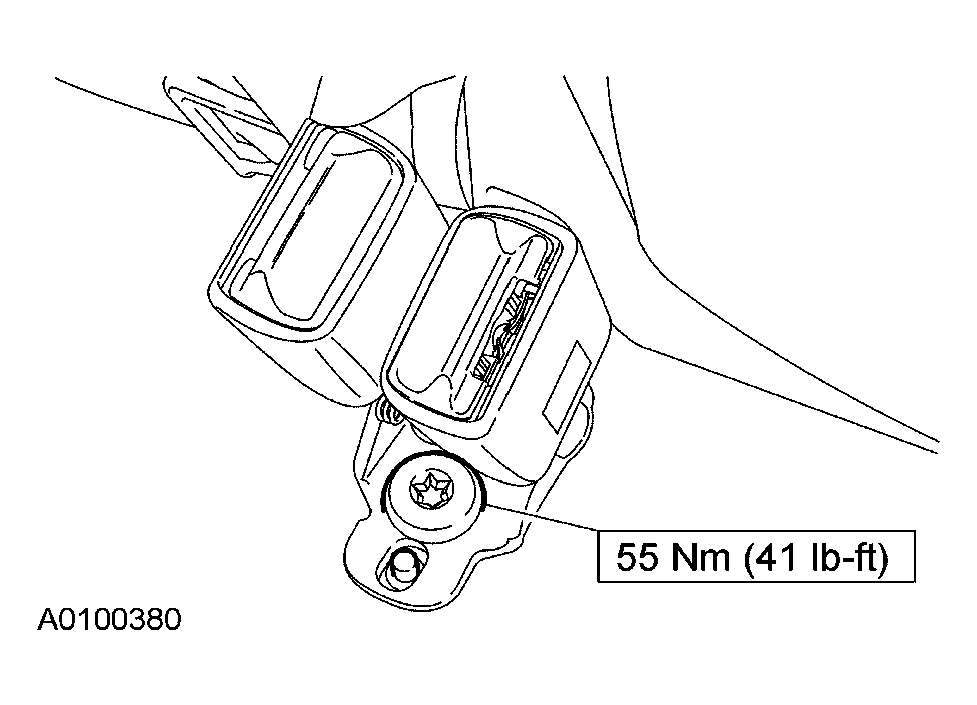

- Lift the rear seat cushion and remove the rear safety belt buckle anchor bolt.
- To install reverse the removal procedure.
- Check the active restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
NOTE:
Make sure the safety belt buckle is correctly positioned on the locator dowel.
