Removal and Installation

WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.

WARNING: To reduce the risk of personal injury, do not use any memory saver devices.

NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.

NOTE: Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.

NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

Depower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
Carefully release the clips and remove the passenger air bag deactivation indicator (PAD)/hazard switch assembly and climate control registers.

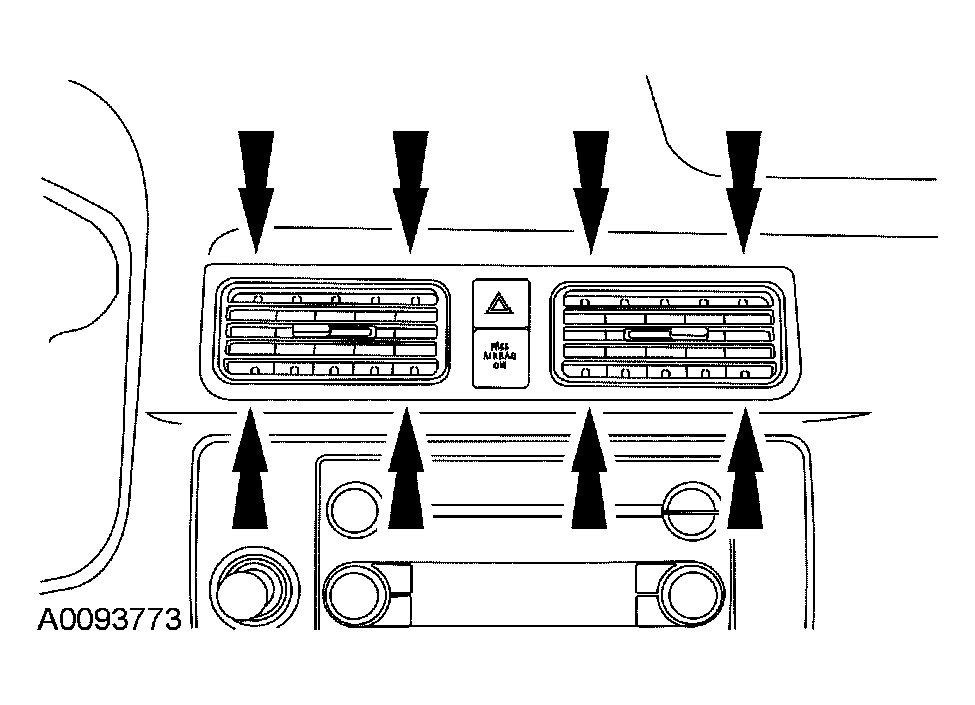

Fig 1: Removing Passenger Air Bag Deactivation Indicator (PAD)/Hazard Switch Assembly And Climate Control Registers
Courtesy of FORD MOTOR CO.
Release the red deterrent tab and disconnect the electrical connector.

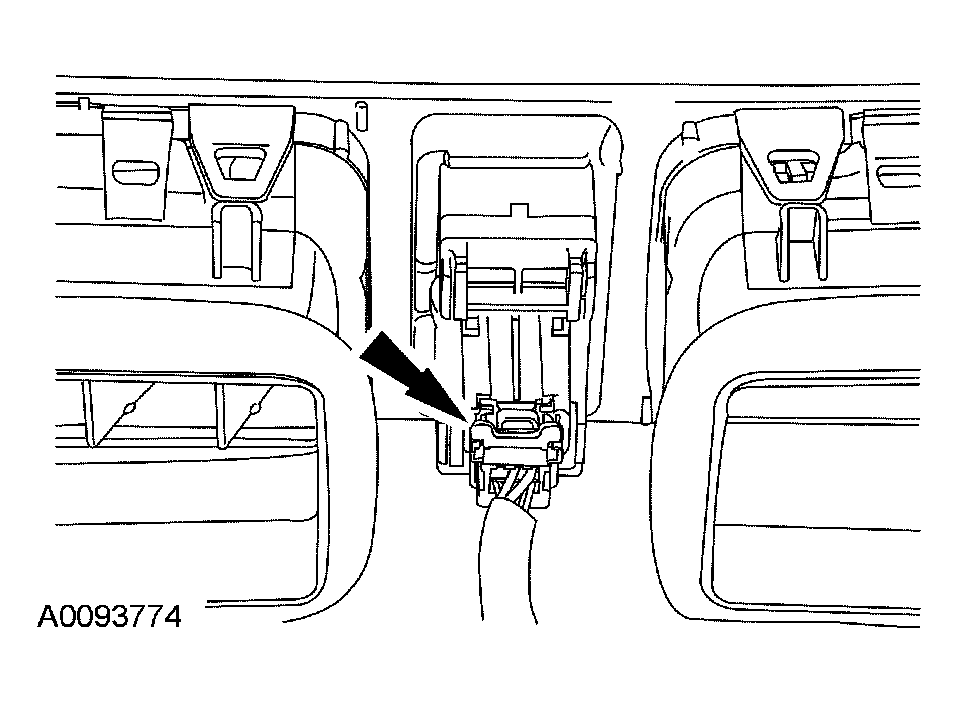

Fig 2: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Release the tabs and remove the PAD indicator from the climate control register assembly.

Fig 3: Removing PAD Indicator From Climate Control Register Assembly
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
