Pinpoint Test X: DTC B1916 - Air Bag Driver Circuit Module Short To Battery Fault
NOTE:
Most faults are due to connector and/or wiring concerns. Carry out a thorough Inspection and Verification before proceeding with the Pinpoint Test.
- X1 CHECK FOR CONTINUOUS AND ON-DEMAND DTCs WARNING: Restraint system diagnostic tools are for service only. Tools must be removed prior to operating the vehicle over the road. Failure to remove restraint system diagnostic tools could result in injury and possible violation of vehicle safety standards.WARNING: Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.WARNING: The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.NOTE: After diagnosing or repairing an SRS, the restraint system diagnostic tools must be removed before operating the vehicle over the road.NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- Enter the following diagnostic mode on the scan tool: On-Demand Self Test.
- Enter the following diagnostic mode on the scan tool: Retrieve/Record Continuous DTCs.
- Was DTC B1916 retrieved during the on-demand self test?
- X2 CHECK CIRCUIT 15S-JA8 (GN/RD) AND CIRCUIT 91S-JA8 (BK/OG) FOR A SHORT TO VOLTAGE BETWEEN THE RCM AND THE DRIVER AIR BAG MODULE
- Key in OFF position.
- Depower the system. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- Remove the driver air bag module. Refer to DRIVER AIR BAG MODULE .
- Disconnect: RCM C2041a and C2041b.
- Repower the system. Do not prove out the system at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- Key in ON position.
- Measure the voltage between driver air bag module electrical connector pin 3, circuit 15S-JA8 (GN/RD), clockspring side and ground; and between driver air bag module electrical connector pin 4, circuit 91S-JA8 (BK/OG), clockspring side and ground.
- Are the voltages less than 0.2 volt?

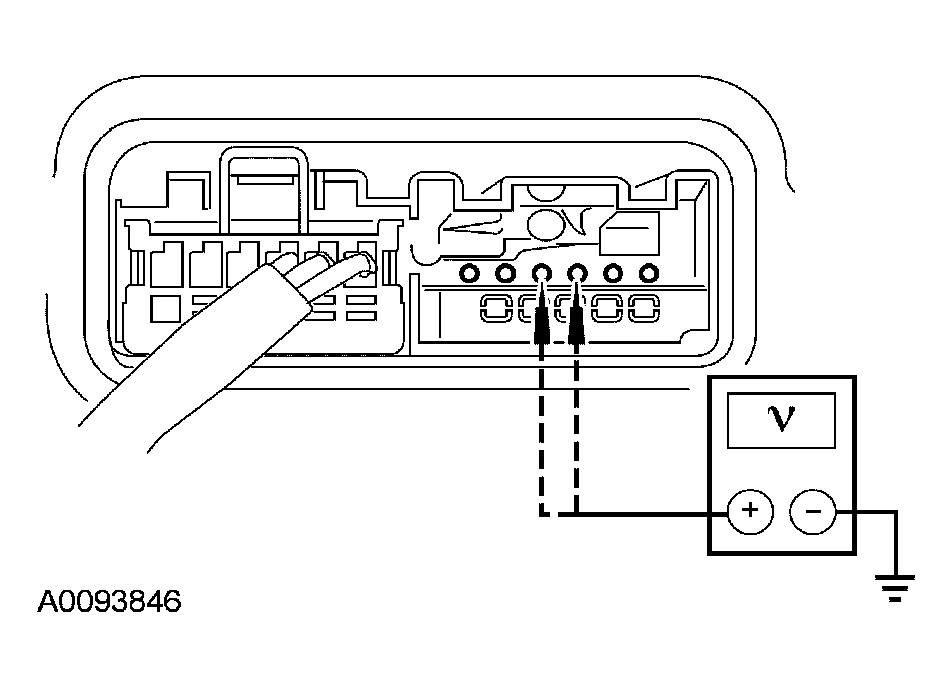

CAUTION: Take care not to damage the pins when probing the clockspring.Fig 1: Checking Circuit 15S-JA8 (GN/RD) And Circuit 91S-JA8 (BK/OG) For A Short To Voltage Between RCM And Driver Air Bag ModuleCourtesy of FORD MOTOR CO.
- Yes : INSTALL and CONFIGURE a new RCM. Refer to RESTRAINTS CONTROL MODULE (RCM) . GO to X4.
- No : GO to X3.
- X3 CHECK CIRCUIT 15S-JA8 (GN/RD) AND CIRCUIT 91S-JA8 (BK/OG) FOR A SHORT TO VOLTAGE BETWEEN THE RCM AND THE CLOCKSPRING
- Key in OFF position.
- Depower the system. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- Disconnect: Clockspring C2274.
- Repower the system. Do not prove out the system at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- Key in ON position.
- Measure the voltage between clockspring C2274 pin 9, circuit 15S-JA8 (GN/RD), harness side and ground; and between clockspring C2274 pin 8, circuit 91S-JA8 (BK/OG), harness side and ground.
- Are the voltages less than 0.2 volt?
- Yes : INSTALL a new clockspring. Refer to CLOCKSPRING . GO to X6.
- No : Due to the shorting bar feature in the electrical connector, the fault can exist in either circuit. Do not remove or defeat the shorting bar.
REPAIR circuit 15S-JA8 (GN/RD) or circuit 91S-JA8 (BK/OG). GO to X6.
- X4 CONFIRM THE RCM FAULT NOTE: Make sure all restraint system diagnostic tools, sensor electrical connectors and the RCM electrical connectors are connected before carrying out the on-demand self test. If not, erroneous DTCs will be recorded
- Key in OFF position.
- Depower the system. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- Connect: Restraint System Diagnostic Tools 501-110 to Driver Air Bag Module Electrical Connector.
- Connect: RCM C2041a and C2041b.
- Repower the system. Do not prove out the system at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- Enter the following diagnostic mode on the scan tool: On-Demand Self Test.
- Was DTC B1916 retrieved during the on-demand self test?
- Yes : INSTALL and CONFIGURE a new RCM. Refer to RESTRAINTS CONTROL MODULE (RCM) . GO to X5.
- No : CHECK for causes of the intermittent fault. ATTEMPT to recreate the hard fault by flexing the wire harness and cycling the ignition key frequently. REPAIR any intermittent concerns found. GO to X5.
- X5 CHECK FOR AN INTERMITTENT FAULT
- Key in OFF position.
- Depower the system. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- Remove the driver air bag module. Refer to DRIVER AIR BAG MODULE .
- Connect: Restraint System Diagnostic Tool 501-110 to Driver Air Bag Module Electrical Connector.
- Repower the system. Do not prove out the system at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- Enter the following diagnostic mode on the scan tool: On-Demand Self Test.
- Was the DTC B1916 retrieved during the on-demand self test?
- Yes
: This is a hard fault. The fault condition is now present. This fault cannot be cleared until it is corrected and the DTC is no longer retrieved during the on-demand self test.
CHECK for causes of the intermittent fault at or near the driver air bag module connector. REPAIR any intermittent concerns found.
If an intermittent concern was found and repaired, GO to X6.
If an intermittent concern was not found and repaired, GO to X2.
- No : CHECK for causes of the intermittent fault. ATTEMPT to recreate the hard fault by flexing the wire harness and cycling the ignition key frequently. REPAIR any intermittent concerns found. GO to X6.
- X6 CHECK FOR ADDITIONAL DTCs
- Refer to the continuous DTCs recorded during Step X1.
- Were any continuous DTCs retrieved during Step X1?
- Yes : Do not clear any DTCs until all DTCs have been resolved. GO to the RESTRAINTS CONTROL MODULE (RCM) DIAGNOSTIC TROUBLE CODE (DTC) Table for pinpoint test direction.
- No : RECONNECT the system. If previously directed to deactivate the system, REACTIVATE the system. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION . REPOWER the system. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING . PROVE OUT the system. CLEAR all DTCs.
