Clutch and Clutch Field Coil: Removal

  1. Remove the A/C compressor (19703). For additional information, AIR CONDITIONING (A/C) COMPRESSOR .
  2. Remove the A/C clutch disc and hub retaining bolt.
    1. Hold the A/C clutch disc and hub with the special tool.
    2. Remove the bolt.
    Fig 1: Removing A/C Clutch Disc And Hub Retaining Bolt
    G03952015Courtesy of FORD MOTOR CO.
  3. Remove the A/C clutch disc and hub.
    1. Thread an 8 x 1.25 mm bolt into the A/C clutch disc and hub spacer to force it from the compressor shaft.
    2. Lift the A/C clutch disc and hub and the A/C clutch disc and hub spacer from the compressor shaft.
    Fig 2: Removing A/C Clutch Disc And Hub
    G03976520Courtesy of FORD MOTOR CO.
  4. Remove the pulley snap ring.

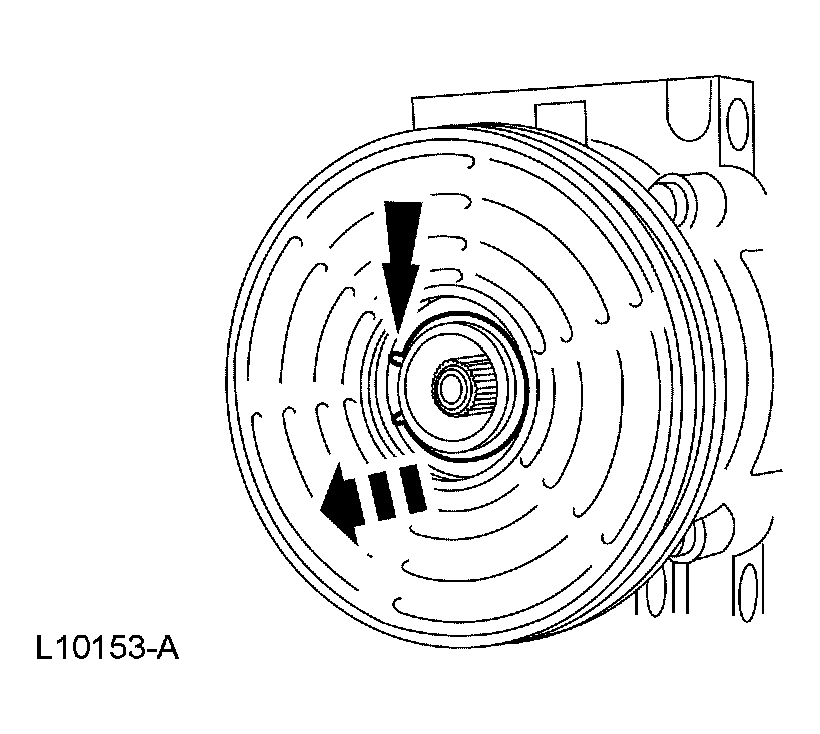

    Fig 3: Removing Pulley Snap Ring
    G03902439Courtesy of FORD MOTOR CO.
  5. Remove the A/C clutch pulley.
    1. Install the special tool.
    2. Remove the A/C clutch pulley.

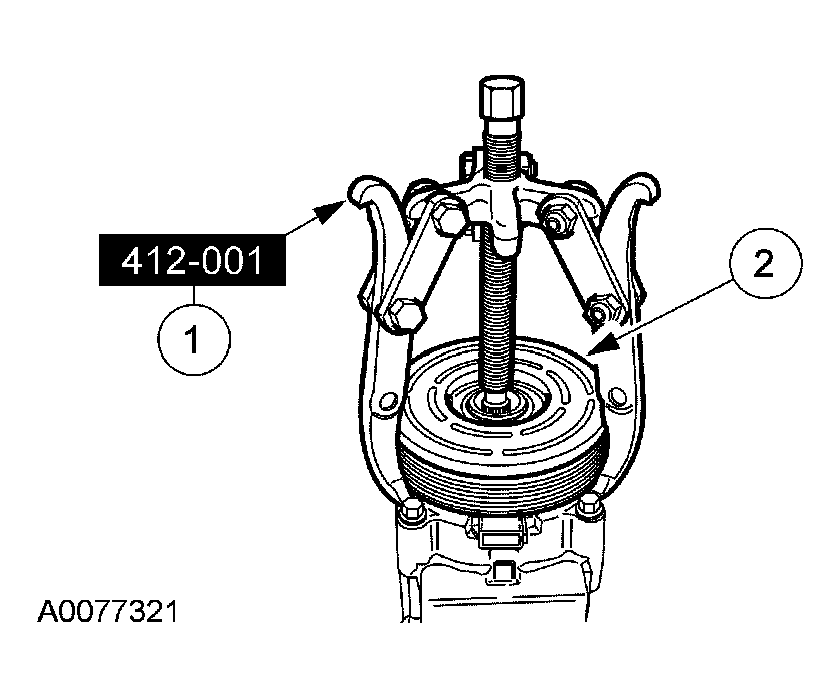

    Fig 4: Removing A/C Clutch Pulley
    G03910472Courtesy of FORD MOTOR CO.
    6. CAUTION: Do not use air tools. The A/C clutch field coil can be easily damaged.

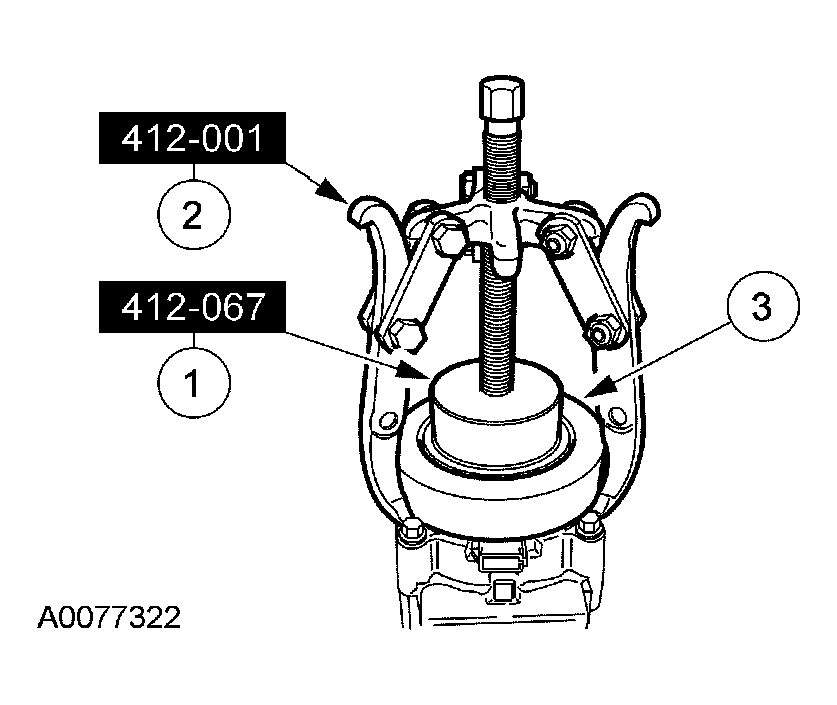

    Fig 5: Removing A/C Clutch Field Coil
    G03910473Courtesy of FORD MOTOR CO.
  6. Remove the A/C clutch field coil.
    1. Install the special tool on the nose opening of the A/C compressor.
    2. Install the special tool.
    3. Remove the A/C clutch field coil.
