Crankshaft Rear Seal with Retainer Plate: Removal

  1. Remove the flywheel or flexplate. For additional information, refer to FLYWHEEL  or FLEXPLATE .
    2. CAUTION: If the oil pan is not removed damage to the rear seal retainer joint can occur.
  2. Remove the oil pan. For additional information, refer to OIL PAN .
  3. Remove the bolts and the crankshaft rear oil seal.

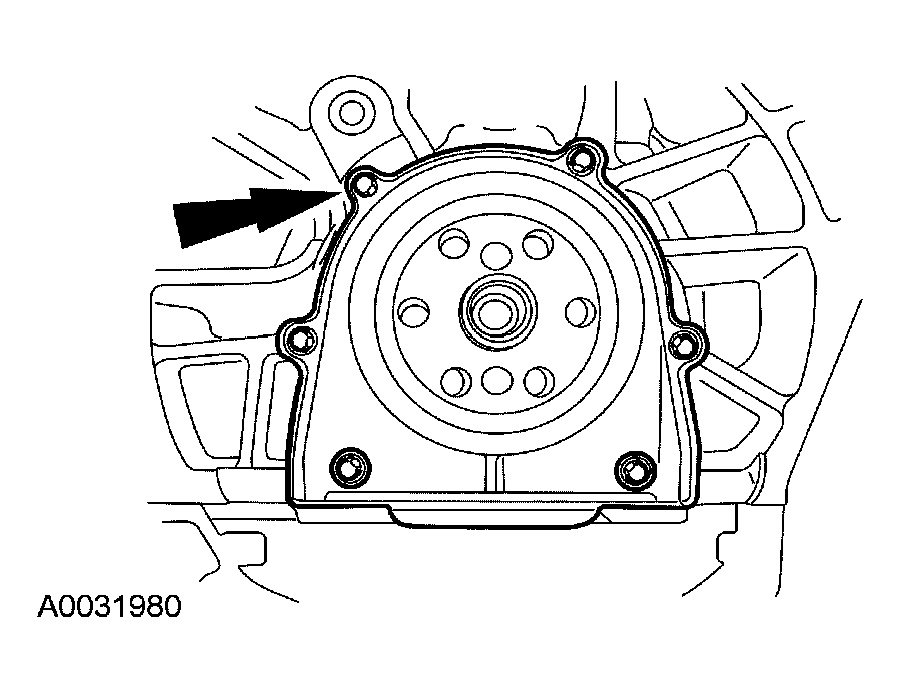

Fig 1: Removing Bolts And Crankshaft Rear Oil Seal
G03950578Courtesy of FORD MOTOR CO.
