Crankshaft Rear Seal with Retainer Plate: Installation

  1. Install the crankshaft rear oil seal on the Crankshaft Rear Main Oil Seal Installer.
  2. Install the Crankshaft Rear Main Oil Seal Installer and the crankshaft rear oil seal on the crankshaft.
    • Tighten the bolts in the sequence shown to 10 Nm (89 lb-in).

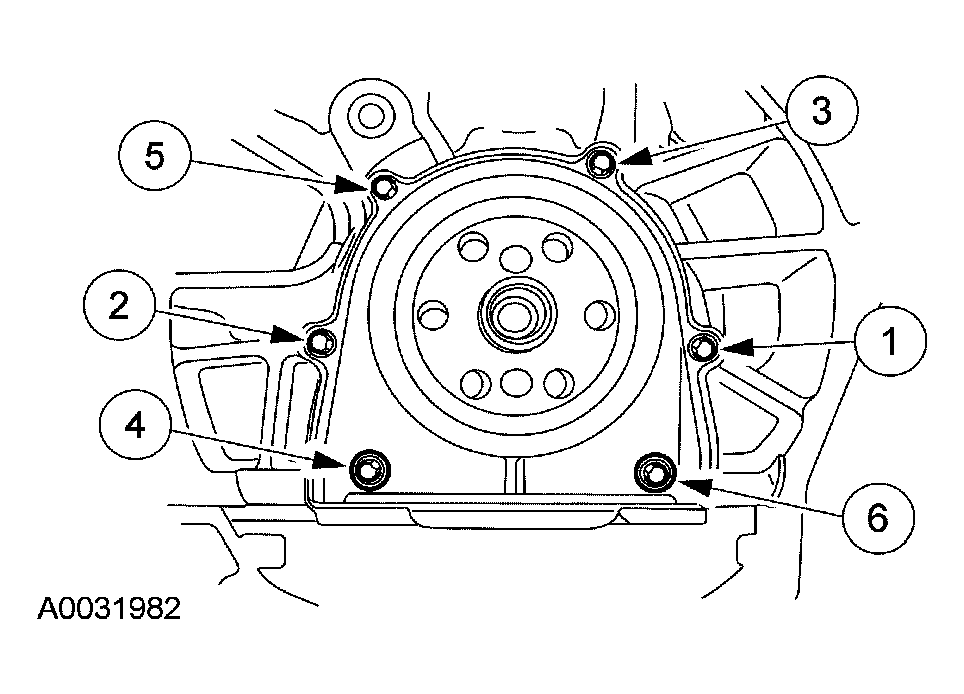

    Fig 1: Identifying Tightening Sequence Of Crankshaft Rear Oil Seal Bolts
    G03950579Courtesy of FORD MOTOR CO.
  3. Remove the Crankshaft Rear Main Oil Seal Installer.
  4. Install the oil pan. For additional information, refer to OIL PAN .
  5. Install the flywheel or flexplate. For additional information, refer to FLYWHEEL  or FLEXPLATE .
