Removal and Installation

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
    2. NOTE: The fan shroud and electric cooling fans are serviced as an assembly.
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Disconnect the dual electric cooling fan electrical connectors.

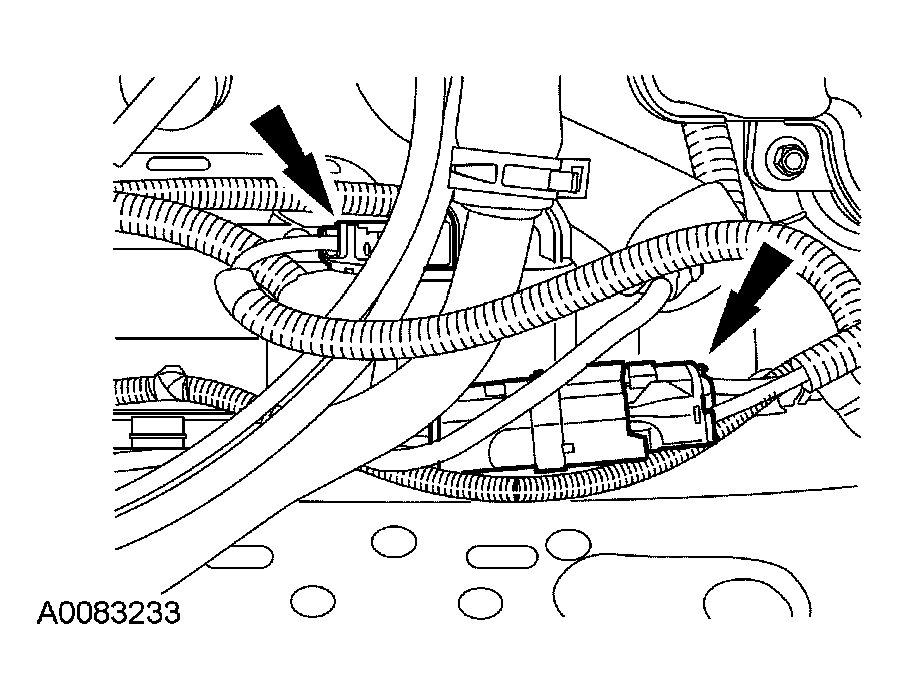

    Fig 1: Disconnecting Dual Electric Cooling Fan Electrical Connectors
    G03950518Courtesy of FORD MOTOR CO.
  4. Lift and remove the cooling fan motors and shroud from the retainer brackets and lower from the vehicle.
    Fig 2: Lifting And Removing Cooling Fan Motors And Shroud From Retainer Brackets
    G03950519Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
