One-Touch Window Relay (Except 3-Door)

NOTE: One-touch window relay (except 3-door) is located in driver door, behind trim panel. See Fig 1.

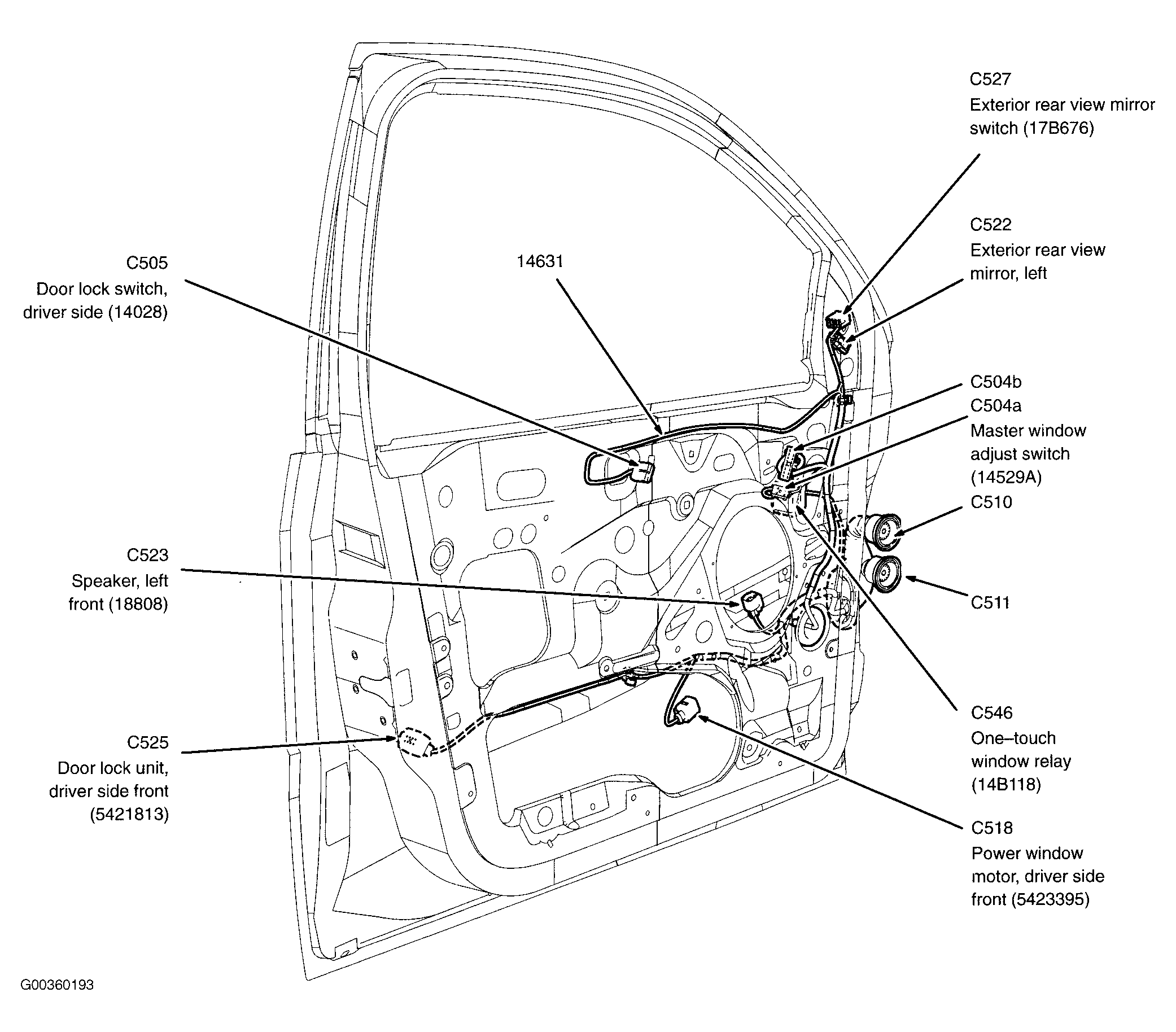

Fig 1: Driver's Door (Except 3-Door), Components And Relays
G00360193Courtesy of FORD MOTOR CO.
DRIVER'S DOOR (EXCEPT 3-DOOR) RELAY IDENTIFICATION

RELAY NUMBER RELAY DESCRIPTION
C546 One-Touch Window Relay (148118)
