Luggage Compartment Lid Release Relay (4-Door)

NOTE: Luggage compartment lid release relay is located in left side of luggage compartment. See Fig 1.

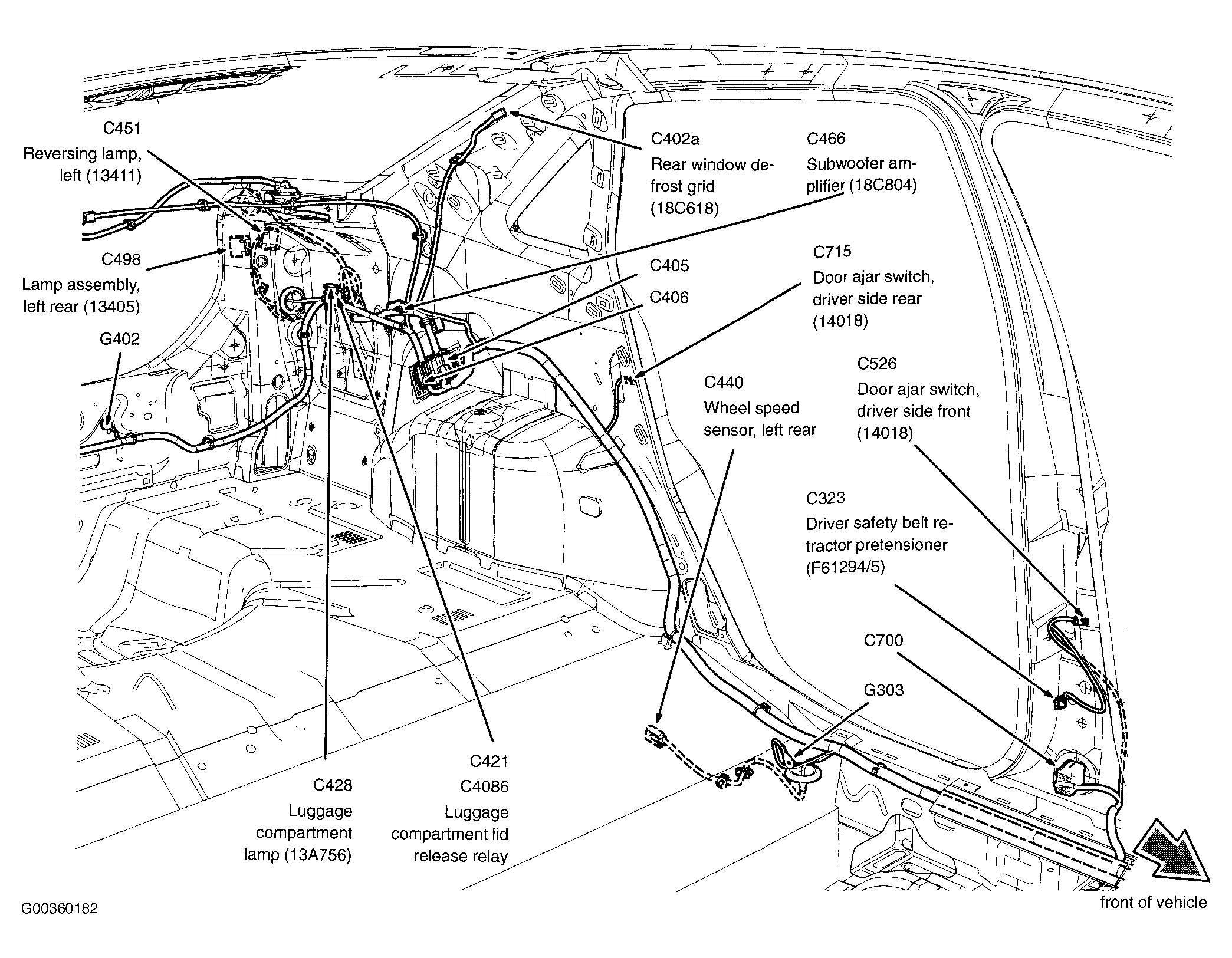

Fig 1: Left Rear Of Vehicle (4-Door), Components And Relays
G00360182Courtesy of FORD MOTOR CO.
LEFT REAR OF VEHICLE (4-DOOR) RELAY IDENTIFICATION

RELAY NUMBER RELAY DESCRIPTION
C421 C4086 Luggage Compartment Lid Release Relay
