Removal and Installation

  1. Release the parking brake.
  2. Remove the wheel and tire. For additional information, refer to WHEELS AND TIRES .
  3. Remove the parking brake cable from the brake caliper.
    1. Pull back the parking brake lever.
    2. Disconnect the cable from the parking brake lever.
    3. Remove the cable conduit retaining clip.
    4. Remove the cable from the brake caliper.

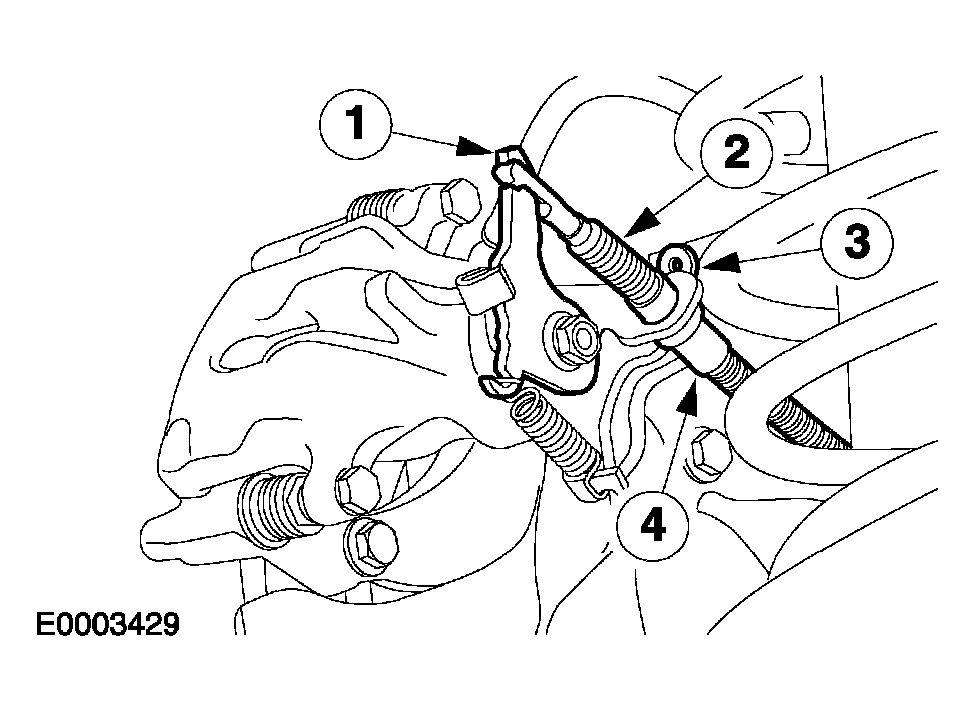

    Fig 1: Removing Parking Brake Cable From Brake Caliper
    G03950059Courtesy of FORD MOTOR CO.
  4. Remove the brake caliper and anchor plate from the wheel knuckle.

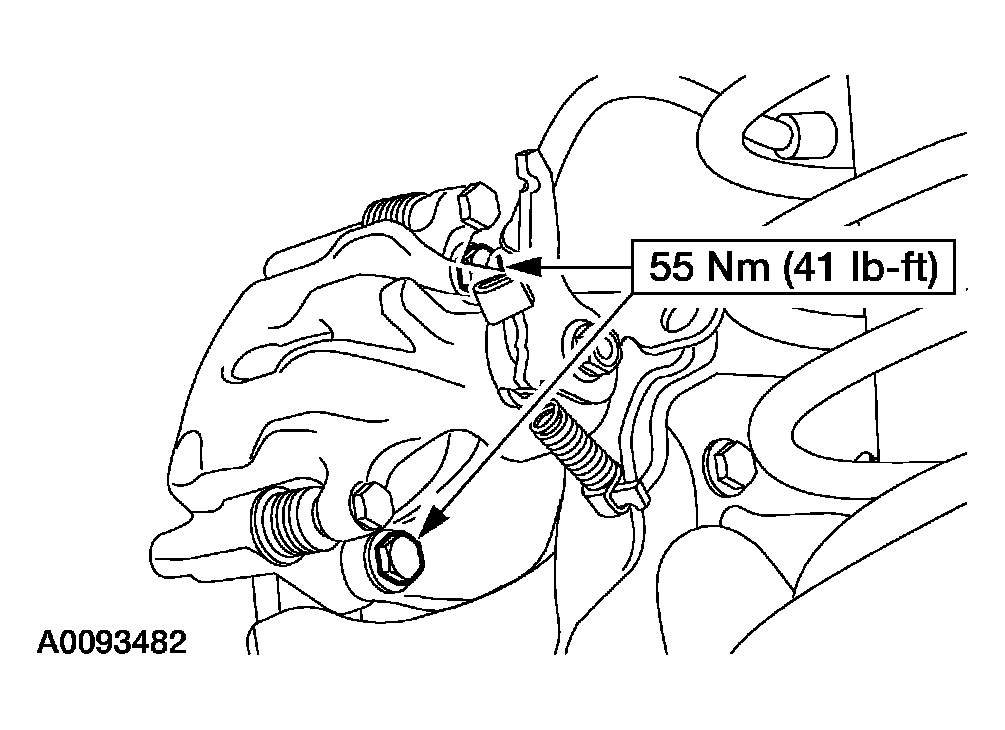

    Fig 2: Removing Brake Caliper And Anchor Plate From Wheel Knuckle
    G03950064Courtesy of FORD MOTOR CO.
  5. Remove the brake disc.
    • Remove the retaining clip (if equipped).

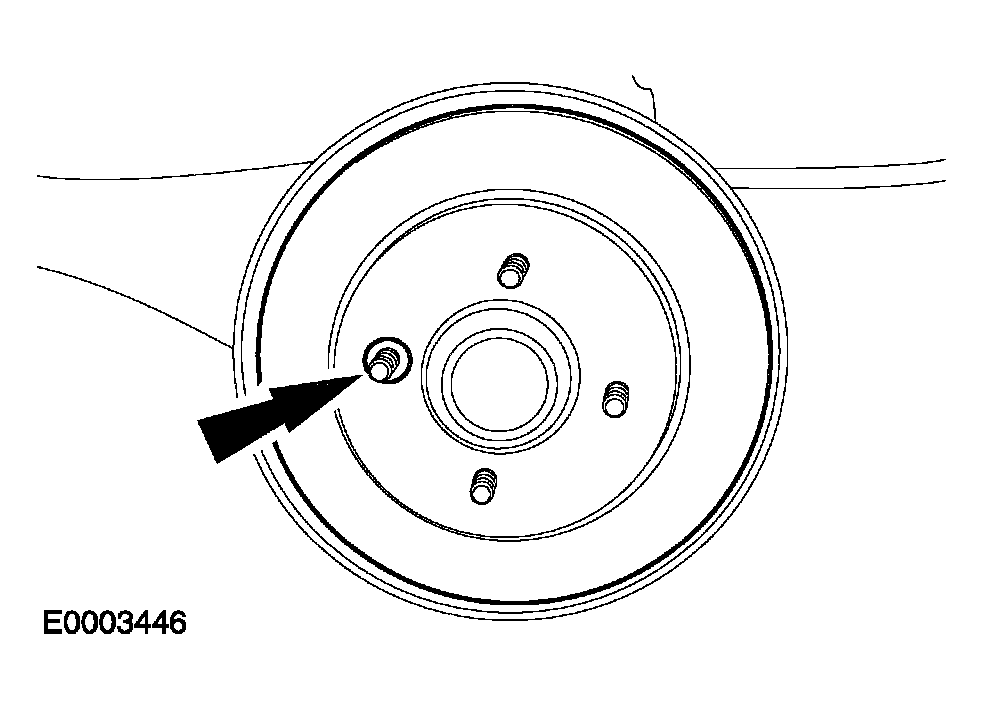

    Fig 3: Removing Retaining Clip And Brake Disc
    G03950065Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
  7. Adjust the parking brake cable. For additional information, refer to PARKING BRAKE AND ACTUATION .
