Removal and Installation

    All vehicles

  1. Remove the wheel hub and spindle.

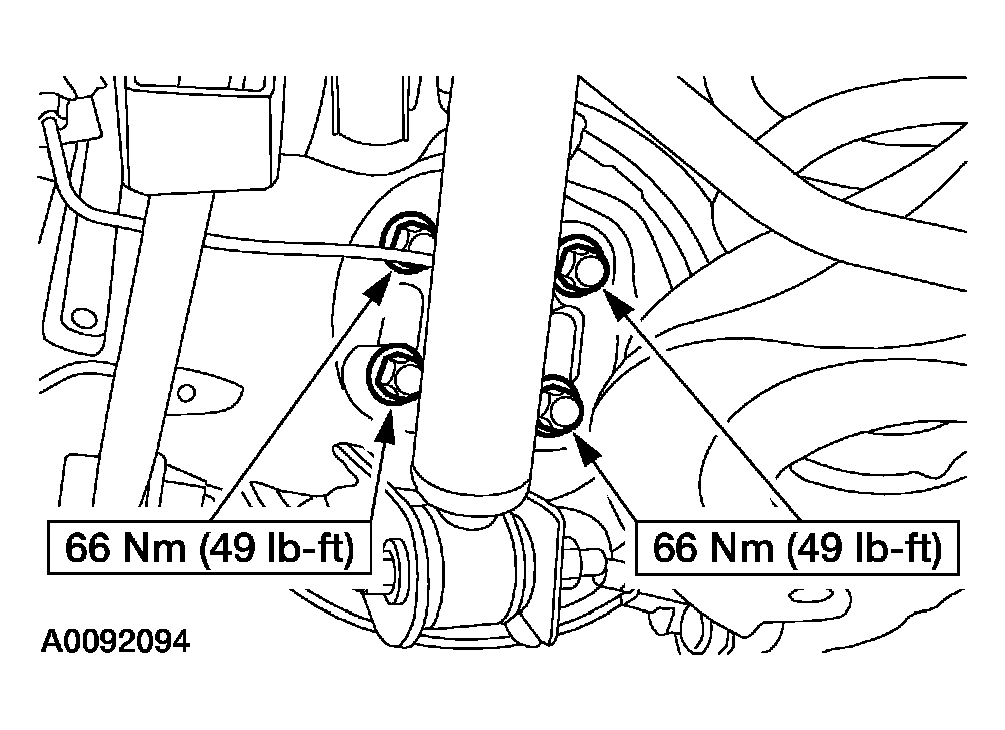

    Fig 1: Removing Wheel Hub And Spindle
    G03950066Courtesy of FORD MOTOR CO.

    2. Vehicles with anti-lock brakes

  2. Disconnect the rear wheel speed sensor.

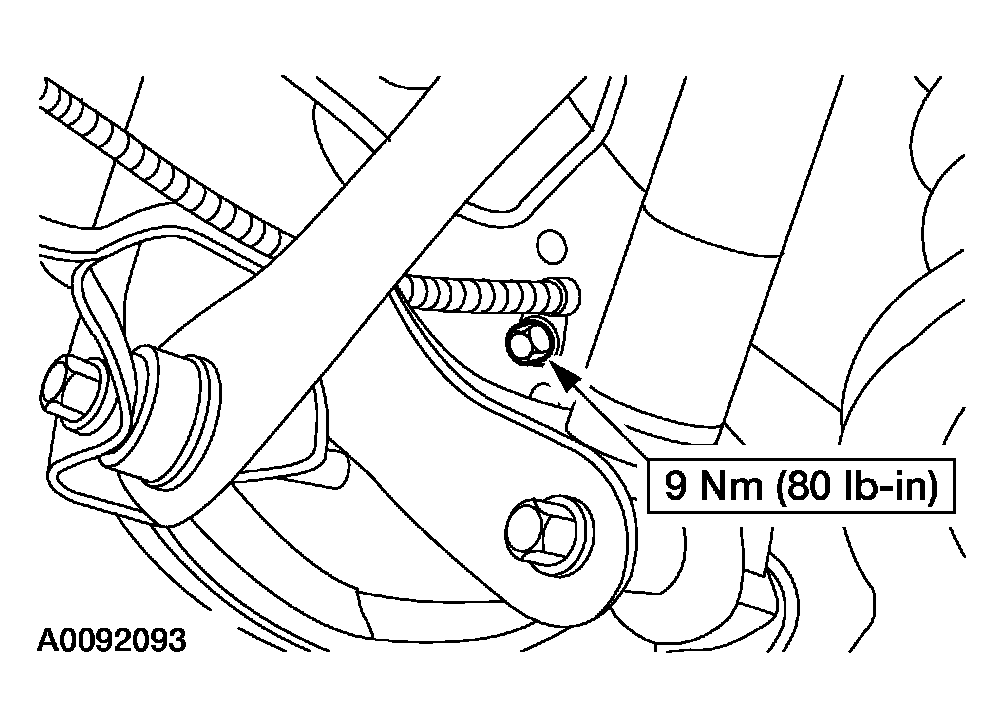

    Fig 2: Disconnecting Rear Wheel Speed Sensor
    G03950067Courtesy of FORD MOTOR CO.

    3. All vehicles

  3. Remove the brake disc shield.
    • Drill out the rivets.
    4. CAUTION: Make sure all mating surfaces are free of foreign material and debris.
  4. To install, reverse the removal procedure.
