Removal and Installation

WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.

CAUTION: Do not allow the brake master cylinder reservoir to run dry during the bleeding operation. Keep the brake master cylinder reservoir filled with the specified brake fluid. Never reuse the brake fluid that has been drained from the hydraulic system.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

Remove the wheel and tire. For additional information, refer to WHEELS AND TIRES .
Loosen the flexible brake hose fitting.

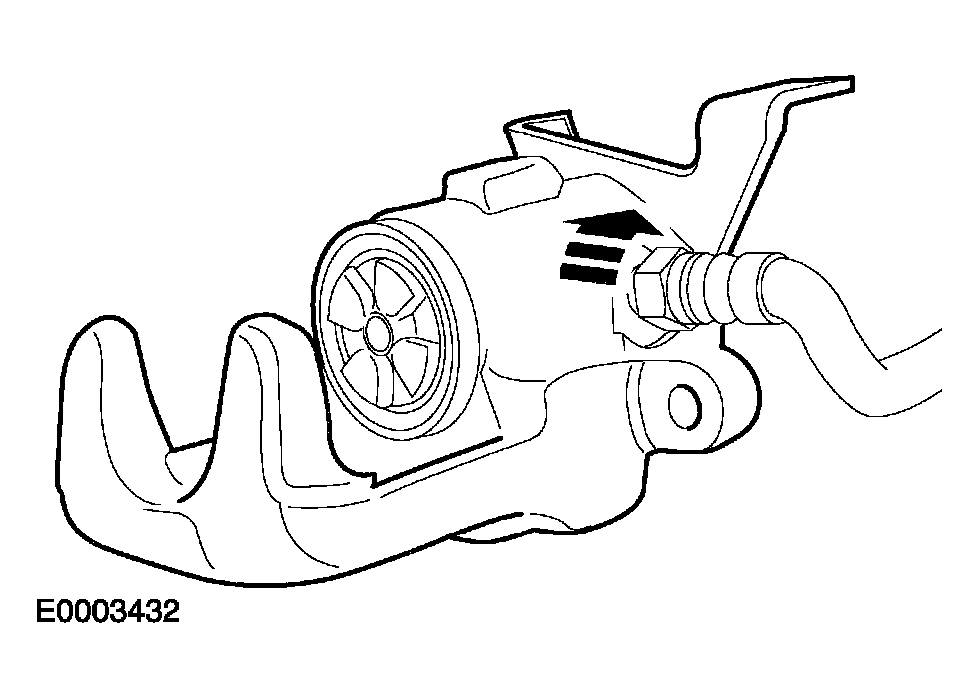

Fig 1: Loosening Flexible Brake Hose Fitting
Courtesy of FORD MOTOR CO.
Remove the rear brake pads. For additional information, refer to BRAKE PADS .

CAUTION: Cap the brake hose to prevent fluid loss and dirt contamination.

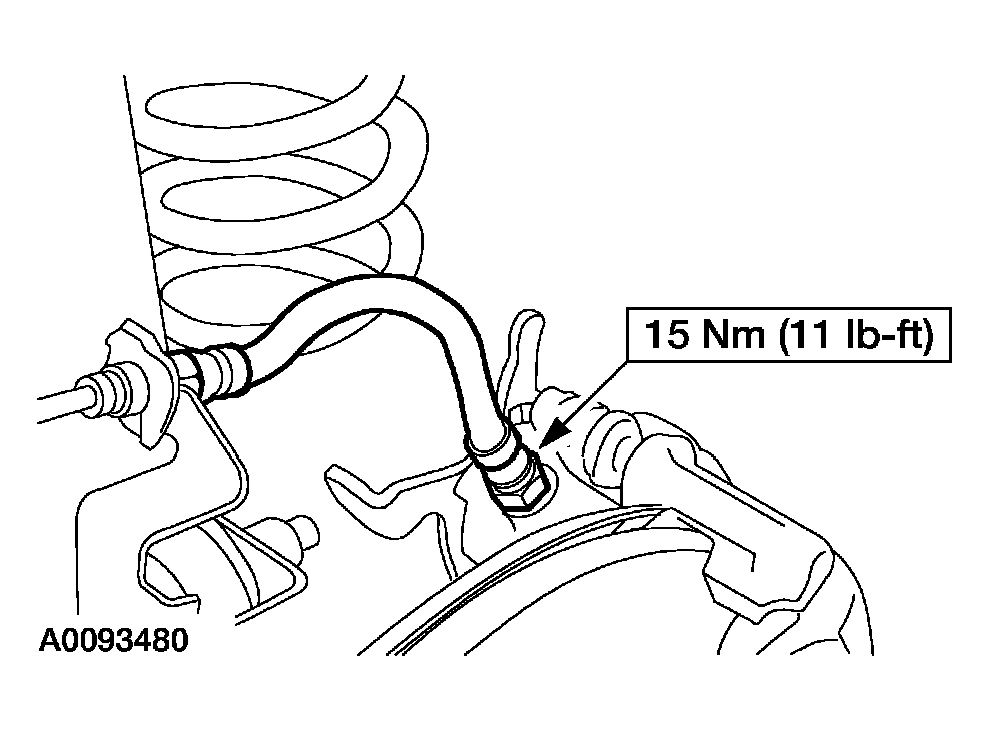

Fig 2: Disconnecting Caliper From Flexible Brake Hose

Courtesy of FORD MOTOR CO.

Disconnect the caliper from the flexible brake hose.
To install, reverse the removal procedure.
Bleed the brake system. For additional information, refer to BRAKE SYSTEM-GENERAL INFORMATION .
