Removal and Installation

Remove the headliner. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the load space floor covering.

Fig 1: Removing Load Space Floor Covering
Courtesy of FORD MOTOR CO.
Detach the scuff plate from the liftgate opening panel.

Fig 2: Detaching Scuff Plate From Liftgate Opening Panel
Courtesy of FORD MOTOR CO.
Remove the C-pillar lower trim panel.

Fig 3: Removing C-Pillar Lower Trim Panel
Courtesy of FORD MOTOR CO.
Detach the load space trim panel from the rear quarter trim panel.

Fig 4: Detaching Load Space Trim Panel From Rear Quarter Trim Panel
Courtesy of FORD MOTOR CO.

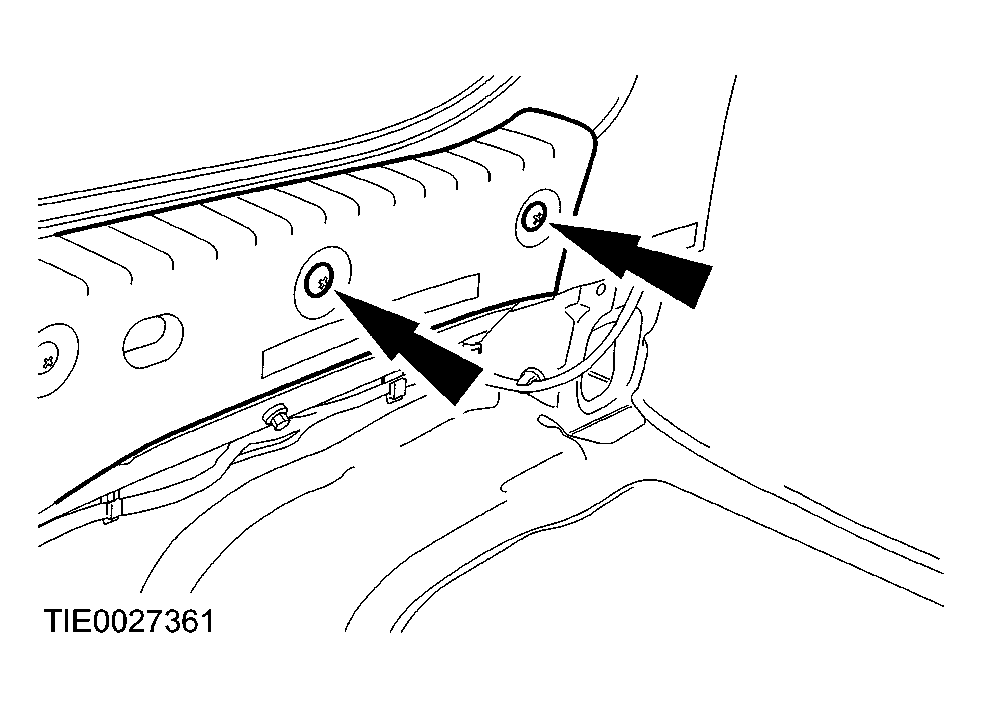

Remove the rear parcel shelf support.

Fig 5: Removing Rear Parcel Shelf Support
Courtesy of FORD MOTOR CO.

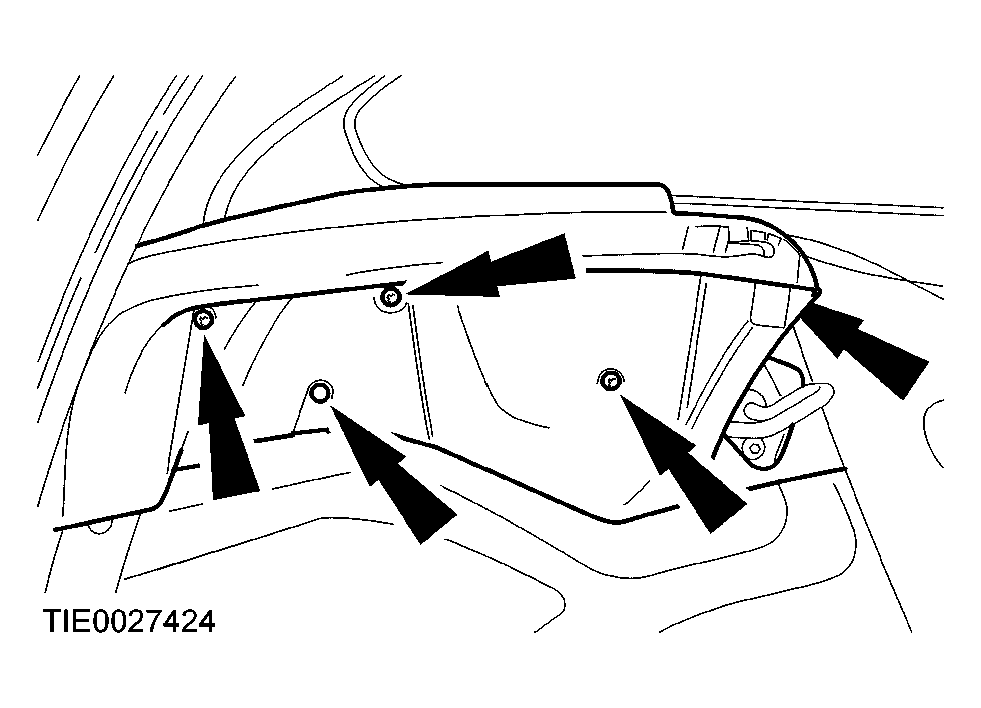

Remove the load space trim panel.

Fig 6: Removing Load Space Trim Panel
Courtesy of FORD MOTOR CO.

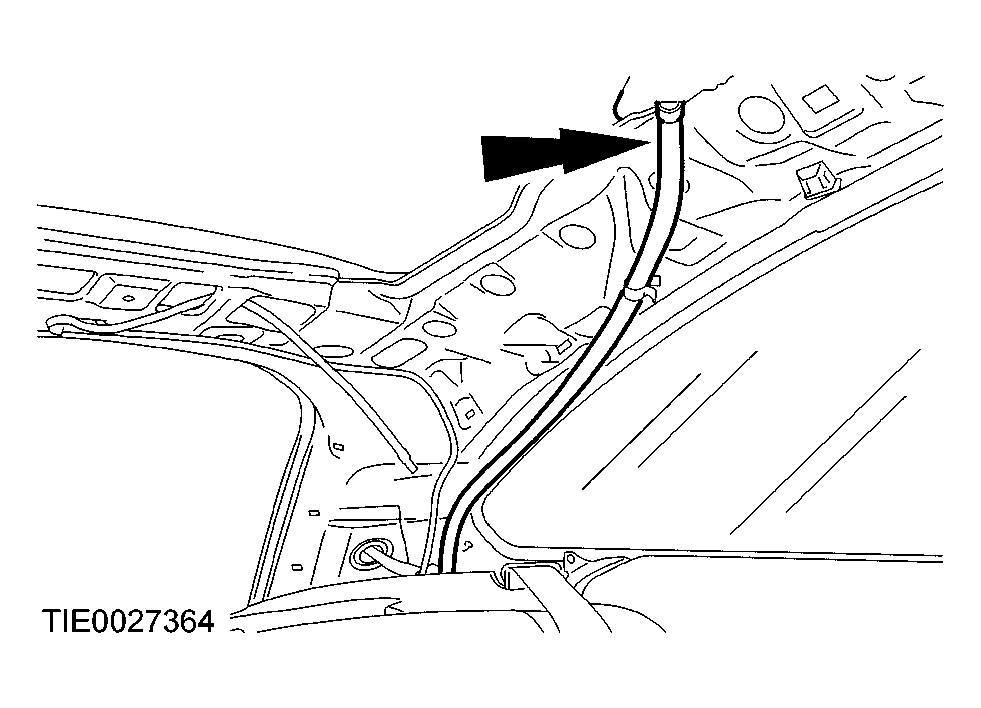

Detach the drain hose from the roof opening panel.

Fig 7: Detaching Drain Hose From Roof Opening Panel
Courtesy of FORD MOTOR CO.

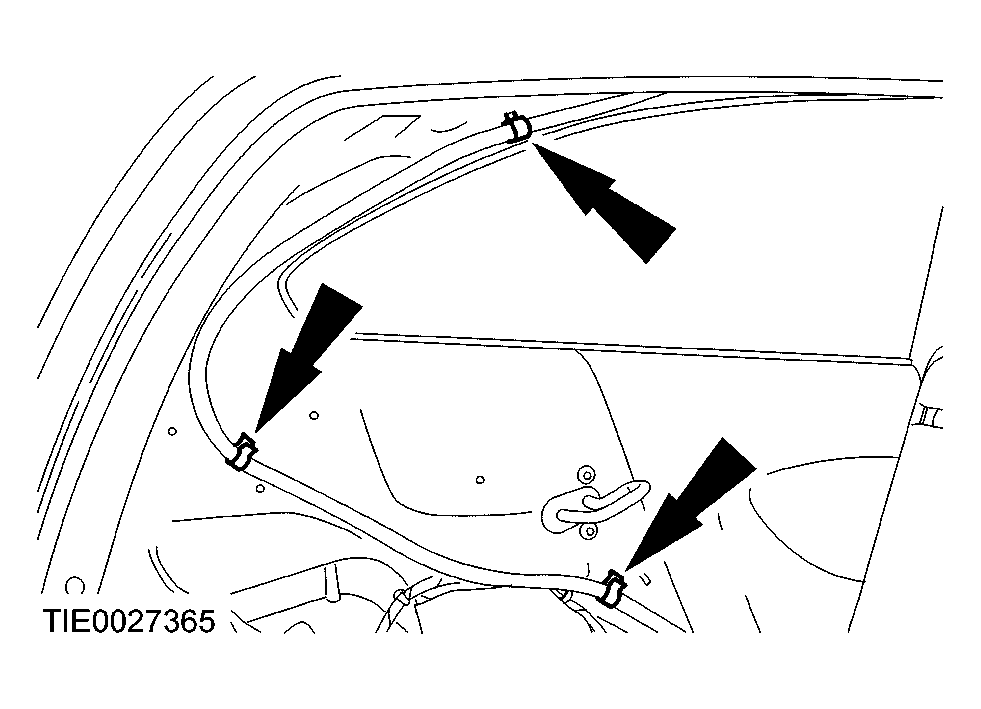

Remove the rear drain hose.
- Detach the clips.
Fig 8: Removing Rear Drain Hose
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
