Removal and Installation

Remove the headliner. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Detach the drain hose from the roof opening panel.

Fig 1: Detaching Drain Hose From Roof Opening Panel
Courtesy of FORD MOTOR CO.
Detach the A-pillar lower trim panel from the A-pillar.

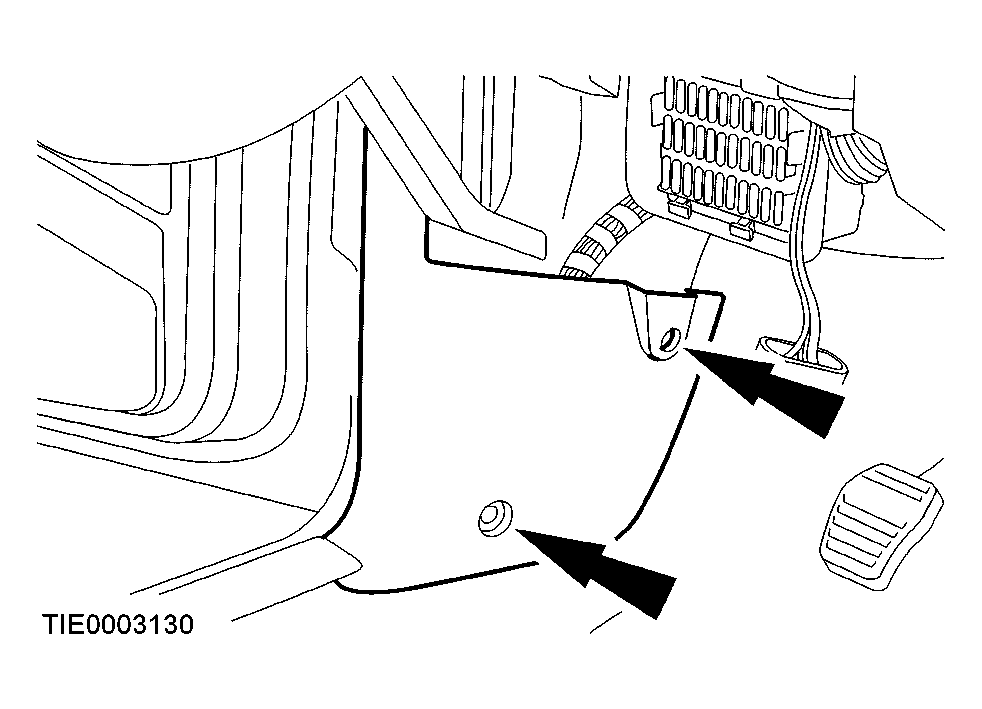

Fig 2: Detaching A-Pillar Lower Trim Panel From A-Pillar
Courtesy of FORD MOTOR CO.

NOTE: Left-hand side drain hose.

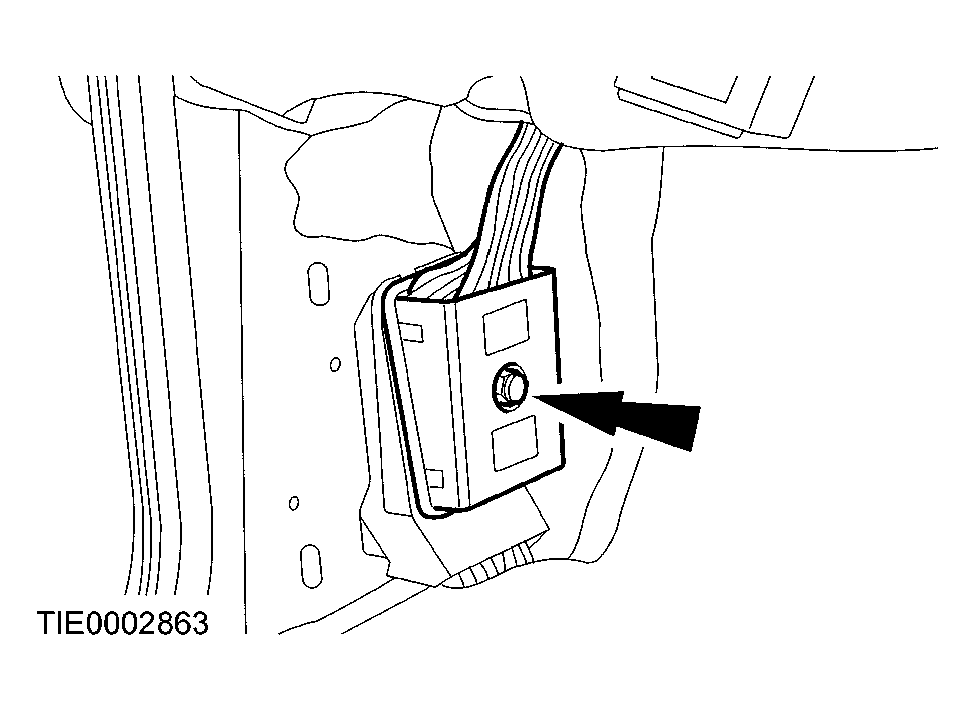

Fig 3: Disconnecting Auxiliary Junction Box Electrical Connector

Courtesy of FORD MOTOR CO.

NOTE: Left-hand side drain hose.

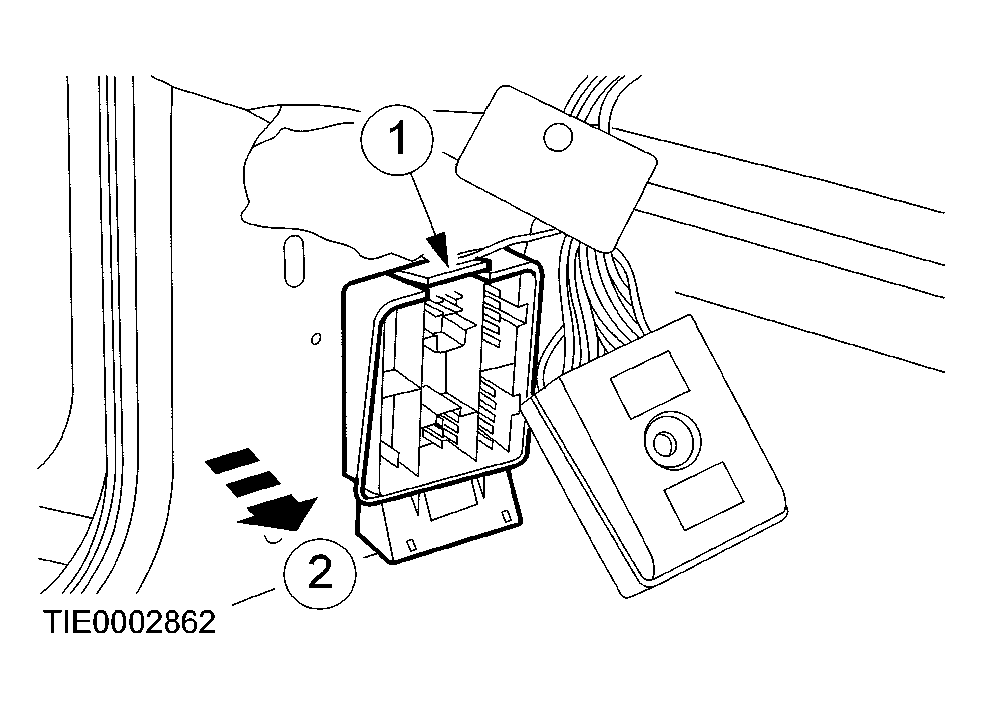

Fig 4: Detaching Auxiliary Junction Box From A-Pillar

Courtesy of FORD MOTOR CO.

Detach the auxiliary junction box from the A-pillar.
1. Release the clip.
2. Detach the junction box.

NOTE: Right-hand side drain hose.

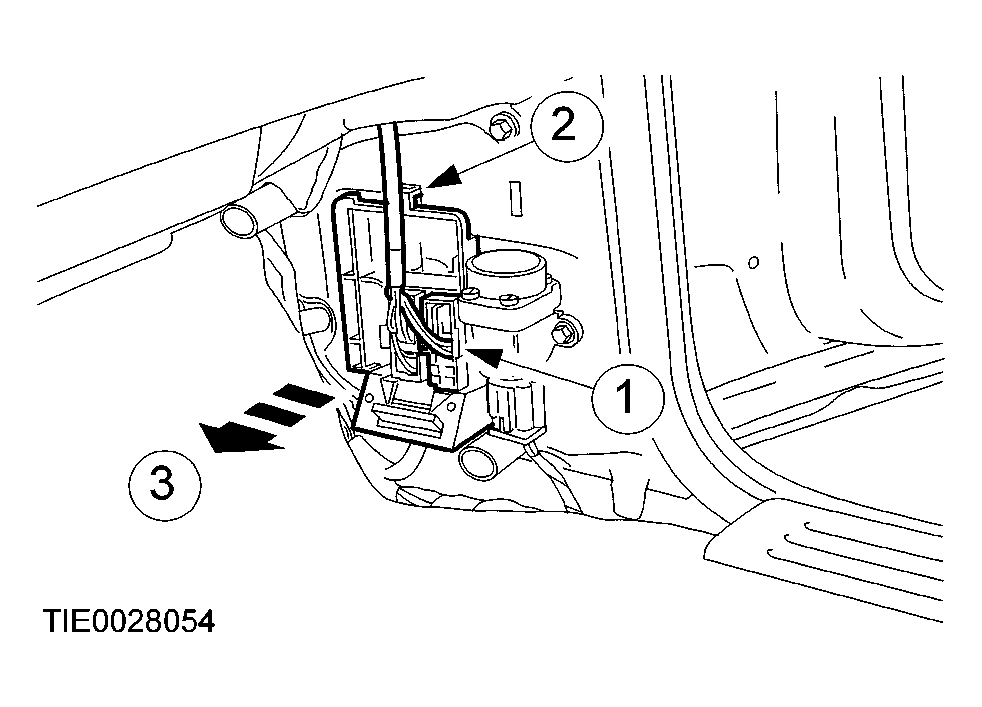

Fig 5: Detaching Auxiliary Junction Box From A-Pillar

Courtesy of FORD MOTOR CO.

Detach the auxiliary junction box from the A-pillar.
1. Disconnect the electrical connector.
2. Release the clip.
3. Detach the junction box.
Attach a suitable length of draw cord to the roof opening panel end of the drain hose, and secure the free end of the cord to the vehicle.
Remove the front drain hose.
- Pull the drain hose down through the A-pillar.

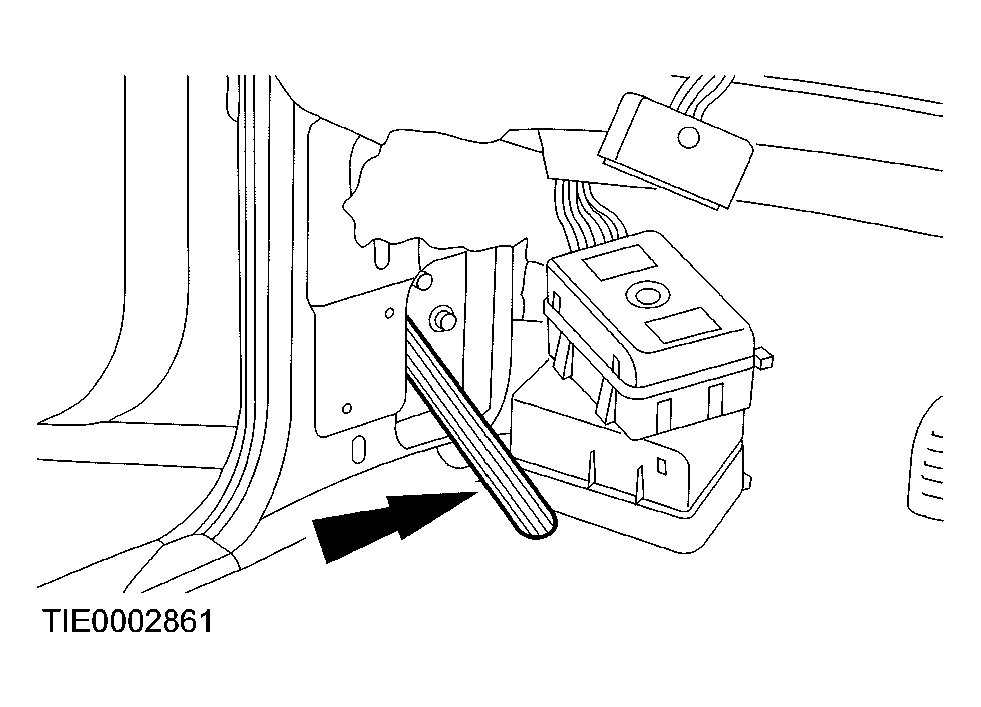

Fig 6: Pulling Drain Hose Down Through A-Pillar
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
