Removal and Installation

  1. Remove the rear bumper cover. For additional information, refer to REAR BUMPER COVER - WAGON  or REAR BUMPER COVER - 3-DOOR/4-DOOR/5-DOOR .
  2. Remove the rear bumper.
    1. Remove the nuts.
    2. Remove the bumper spacers (if equipped).

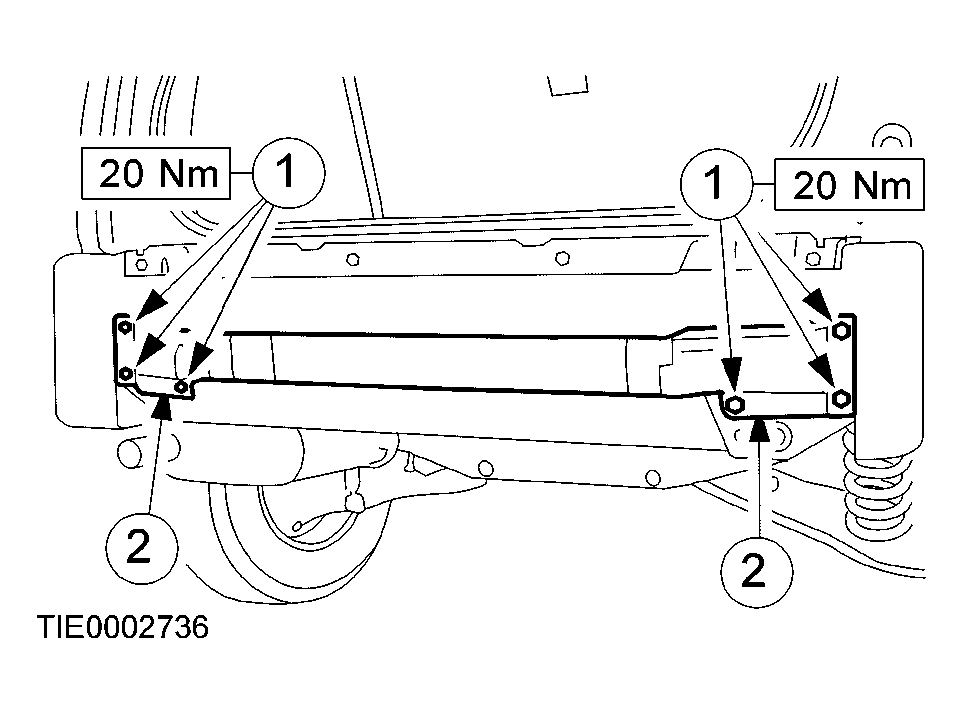

    Fig 1: Removing Bumper Spacers
    G03953293Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
