Removal and Installation

  1. Remove the upper pin-type retainers.

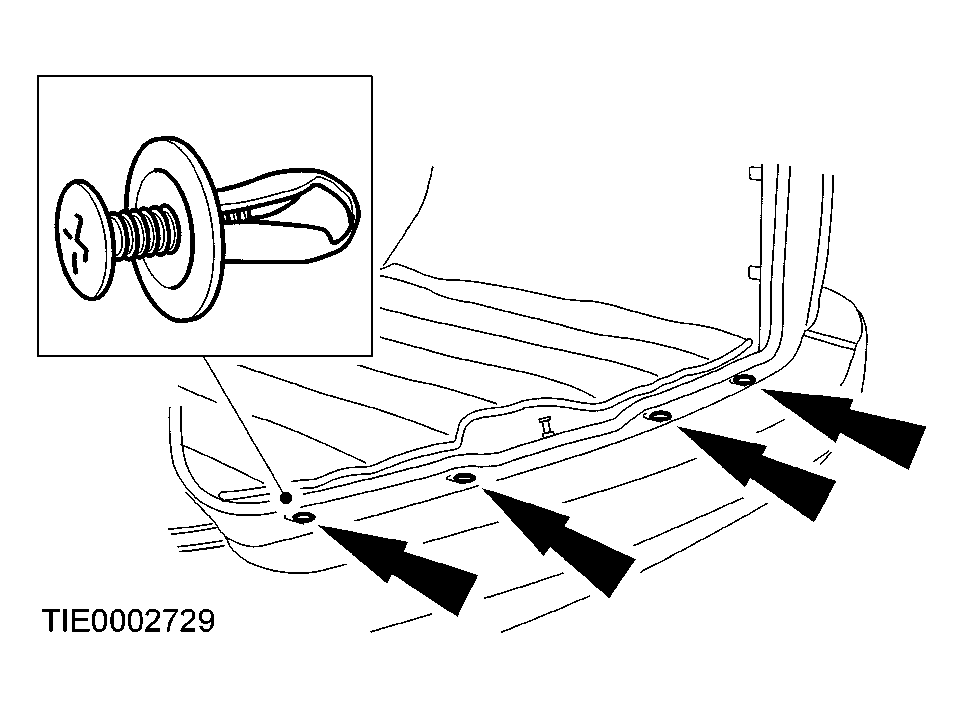

    Fig 1: Removing Upper Pin-Type Retainers
    G03953294Courtesy of FORD MOTOR CO.
  2. Position the loadspace side trim panel inserts aside.
    Fig 2: Positioning Loadspace Side Trim Panel Inserts
    G03953295Courtesy of FORD MOTOR CO.
  3. Remove the bumper side retaining nut on both sides.
    Fig 3: Removing Bumper Side Retaining Nut On Both Sides
    G03953296Courtesy of FORD MOTOR CO.
  4. Raise and support the vehicle. For additional information, refer to JACKING AND LIFTING .
    5. NOTE: Install new pin-type retainers during assembly.
    Fig 4: Removing And Discard Pin-Type Retainers (1 Each Side) And Position Splash Shield Aside
    G03953297Courtesy of FORD MOTOR CO.
  5. Remove and discard the 2 pin-type retainers (1 each side) and position the splash shield aside.
  6. Remove the 2 nuts (1 each side).

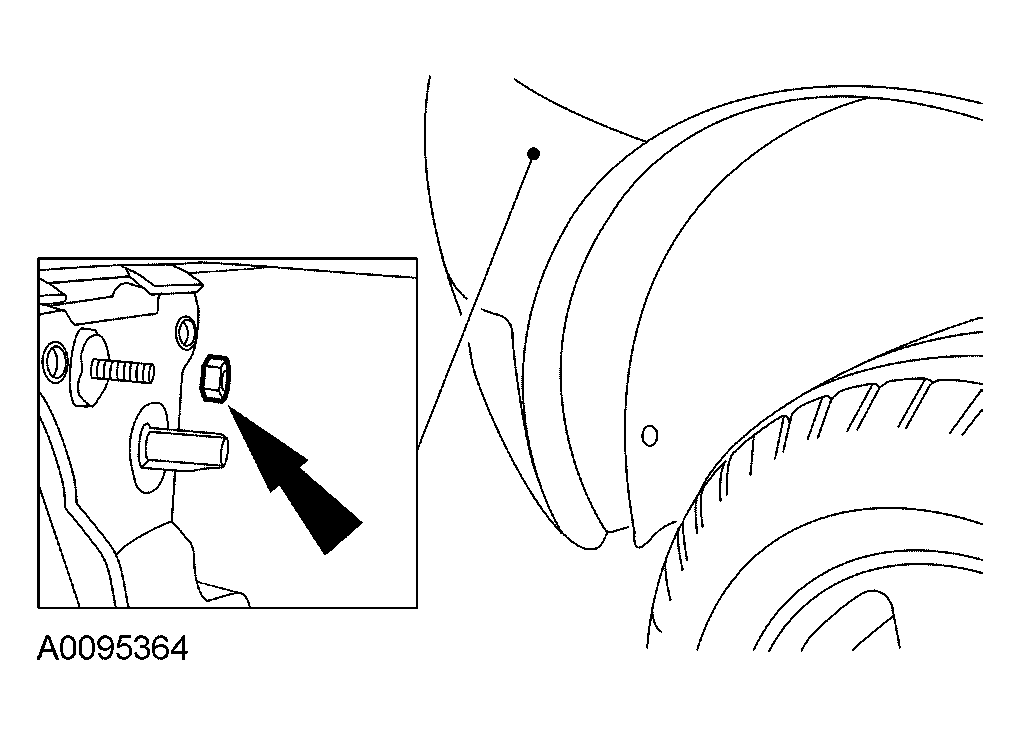

    Fig 5: Removing 2 Nuts
    G03953298Courtesy of FORD MOTOR CO.
  7. Remove the lower pin-type retainers.

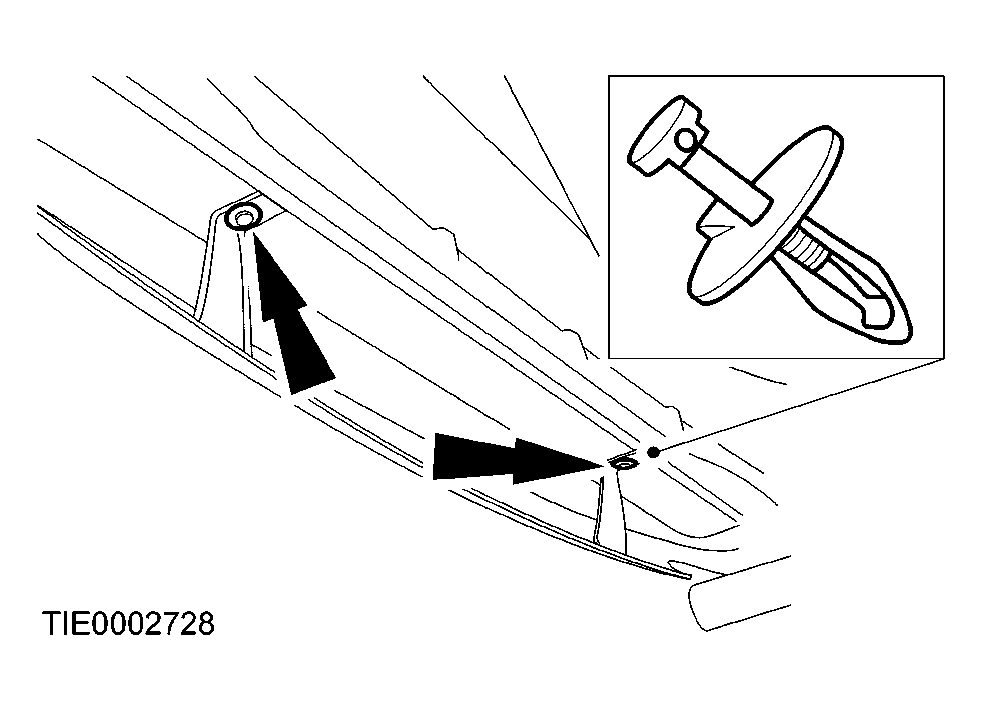

    Fig 6: Removing Lower Pin-Type Retainers
    G03953299Courtesy of FORD MOTOR CO.
  8. Remove the 2 side support bracket pin-type retainers.

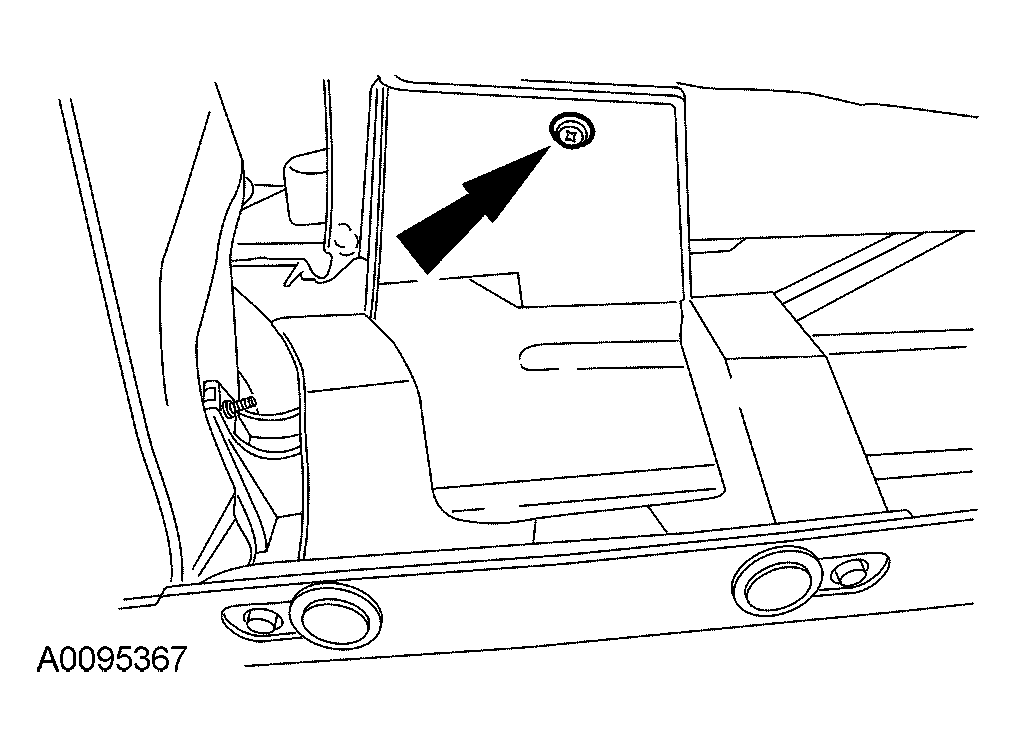

    Fig 7: Removing 2 Side Support Bracket Pin-Type Retainers
    G03953300Courtesy of FORD MOTOR CO.
  9. Lower the vehicle.
    10. CAUTION: The bumper ends must be pulled away from the fenders to prevent damage to the paint work.
    Fig 8: Removing Rear Bumper Cover
    G03953301Courtesy of FORD MOTOR CO.
  10. Remove the rear bumper cover.
    • Release the clips.
  11. To install, reverse the removal procedure.
