Removal and Installation

  1. Remove the 2 nuts and the 2 wiper pivot arms.

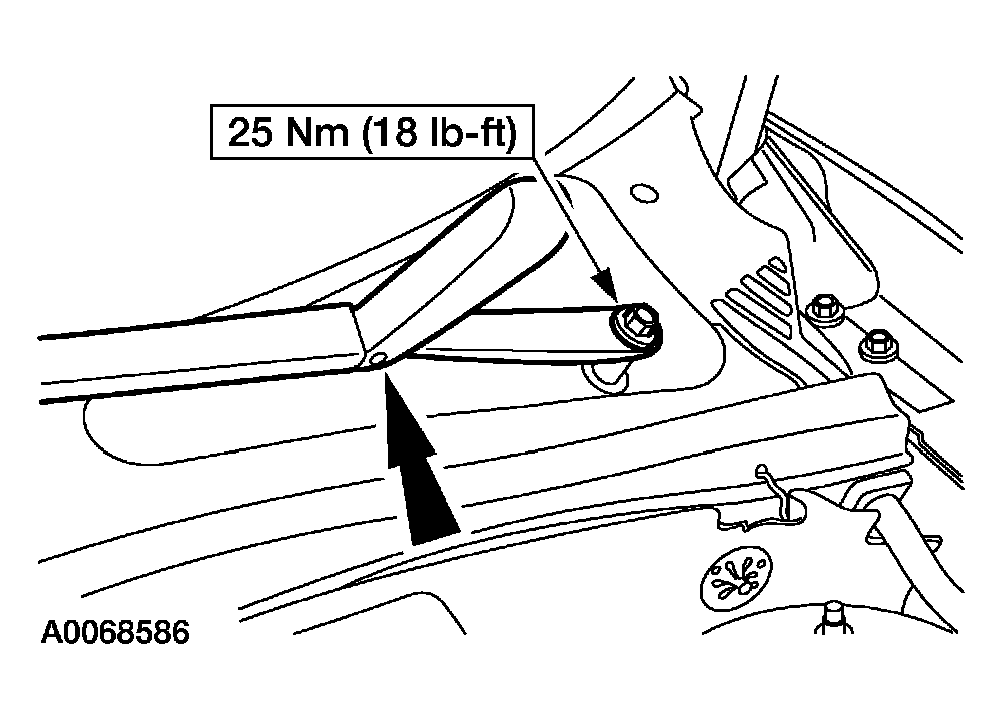

    Fig 1: Removing 2 Nuts And 2 Wiper Pivot Arms
    G03952584Courtesy of FORD MOTOR CO.
    2. NOTE: The LH cowl panel grille must be removed prior to removing the RH cowl panel grille.

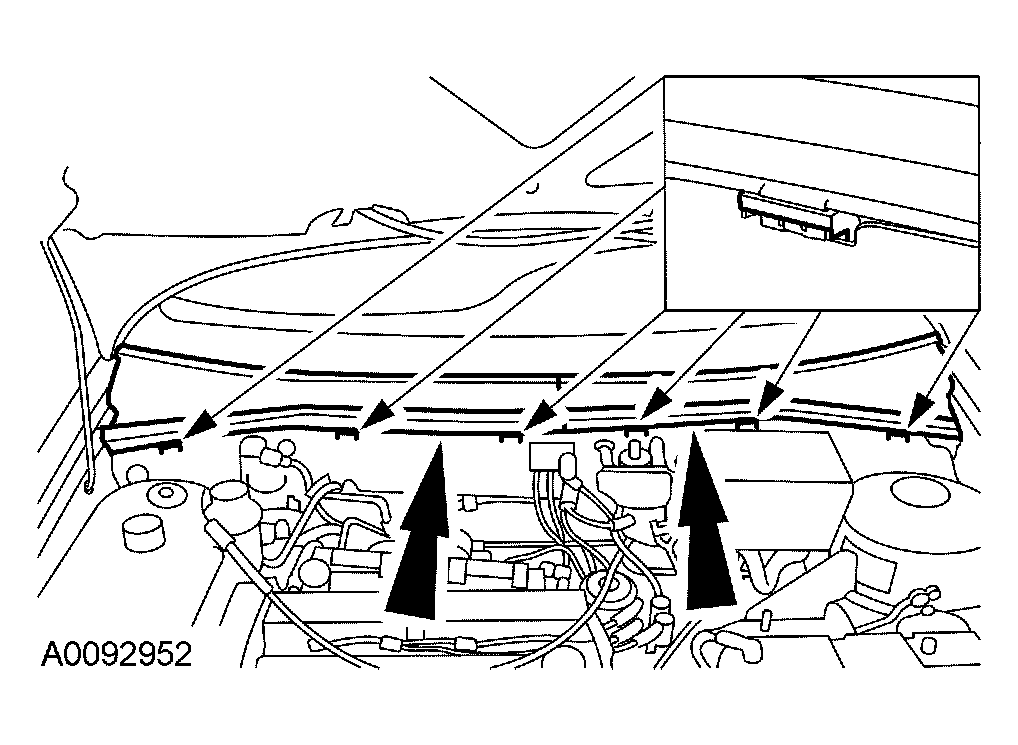

    Fig 2: Releasing Clips And Removing LH And RH Cowl Panel Grilles
    G03952585Courtesy of FORD MOTOR CO.
  2. Release the clips and remove the LH and RH cowl panel grilles.
    • Release the cowl panel grilles from the windshield moulding.
  3. To install, reverse the removal procedure.
