Hinge Adjustment - Rear

MATERIAL SPECIFICATION

Item	Specification
Multi-Purpose Grease Spray XL-5	ESB-M1C39-B

NOTE: To correctly align the doors, adjust the hinges and the door latch striker plates. Adjusting the hinge affects the positioning of the outside surface of the door frame. Adjusting the door latch striker plate affects the alignment of the door relative to the weatherstrip and the door closing characteristics.

NOTE: If the door will not align correctly, carry out an underbody misalignment check. For additional information, refer to UNI-BODY, SUBFRAME AND MOUNTING SYSTEM .

NOTE: The door should be adjusted for even and parallel fit with the body opening and the surrounding panels.

NOTE: Check the front door hinge adjustment before adjusting the front door hinge.

Mark the position of the rear door hinges to use as a reference point.

Fig 1: Marking Position Of Rear Door Hinges To Use As A Reference Point
Courtesy of FORD MOTOR CO.
Loosen the rear door hinge-to-body bolts.

Fig 2: Loosening Rear Door Hinge-To-Body Bolts
Courtesy of FORD MOTOR CO.

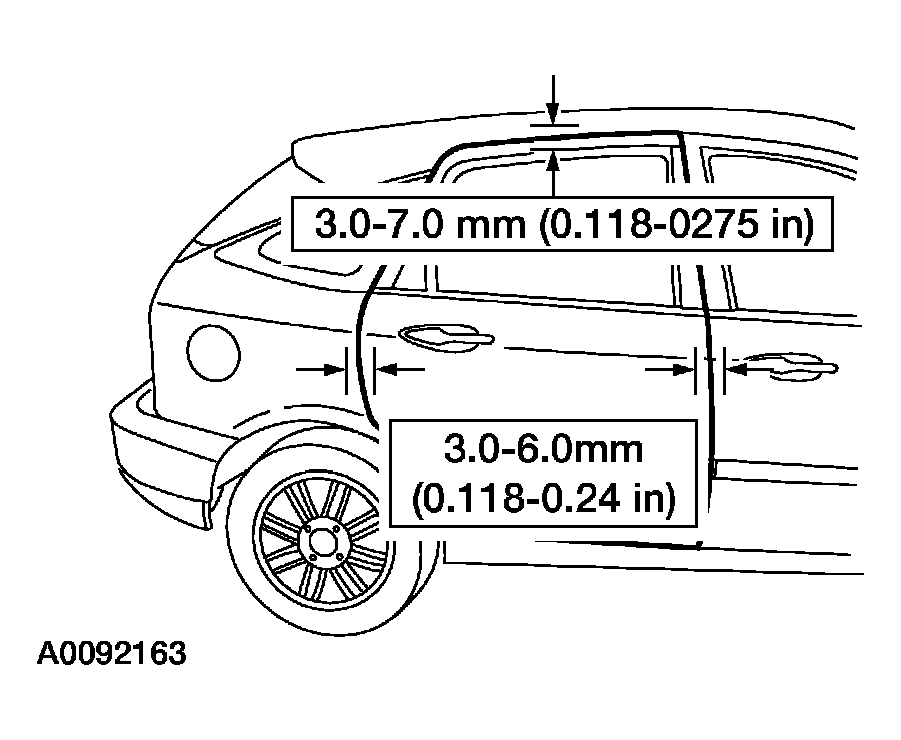

Adjust the rear door alignment to the specifications.

Fig 3: Adjusting Rear Door Alignment To Specifications
Courtesy of FORD MOTOR CO.
Tighten the rear door hinge-to-body bolts.

Fig 4: Tightening Rear Door Hinge-To-Body Bolts
