Door Adjustment - Rear

NOTE: The door should be adjusted for even and parallel fit with the body opening and the surrounding panels.

Mark the position of the rear door hinge to use as a reference point.

Fig 1: Marking Position Of Rear Door Hinge To Use As A Reference Point
Courtesy of FORD MOTOR CO.
Loosen the two rear door hinge-to-rear door bolts just enough to permit movement of the door.

Fig 2: Loosening Two Rear Door Hinge-To-Rear Door Bolts
Courtesy of FORD MOTOR CO.
Adjust the rear door alignment to the specifications.

Fig 3: Adjusting Rear Door Alignment To Specifications
Courtesy of FORD MOTOR CO.
Tighten the rear door hinge-to-rear door bolts.

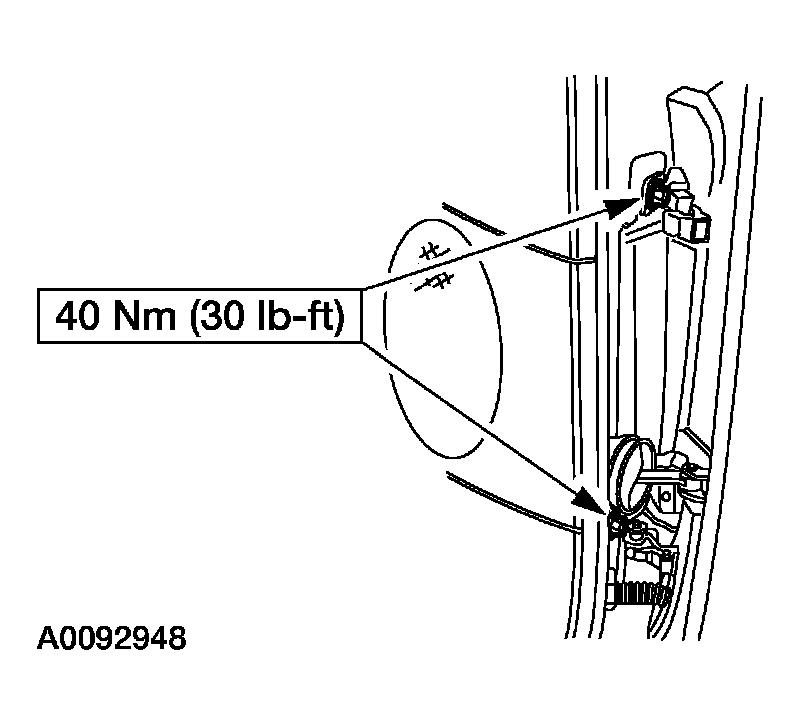

Fig 4: Tightening Rear Door Hinge-To-Rear Door Bolts

Courtesy of FORD MOTOR CO.
