Door Adjustment - Front

NOTE: The door should be adjusted for even and parallel fit with the body opening and the surrounding panels.

NOTE: Check the rear door hinge adjustment before adjusting the front door hinge.

Mark the position of the front door hinge to use as a reference point.

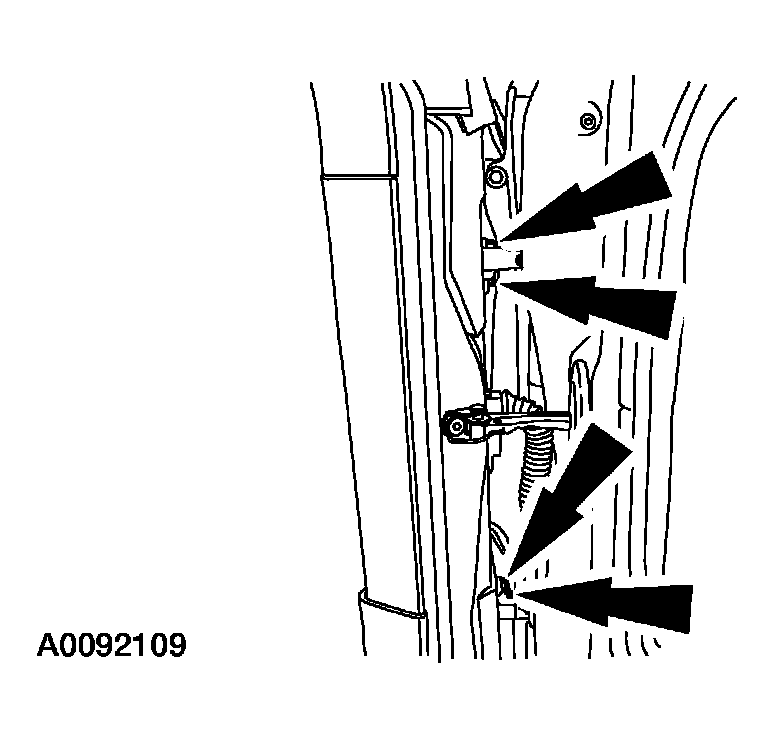

Fig 1: Marking Position Of Front Door Hinge To Use As A Reference Point
Courtesy of FORD MOTOR CO.
Loosen the front door hinge-to-front door bolts just enough to permit movement of the door.

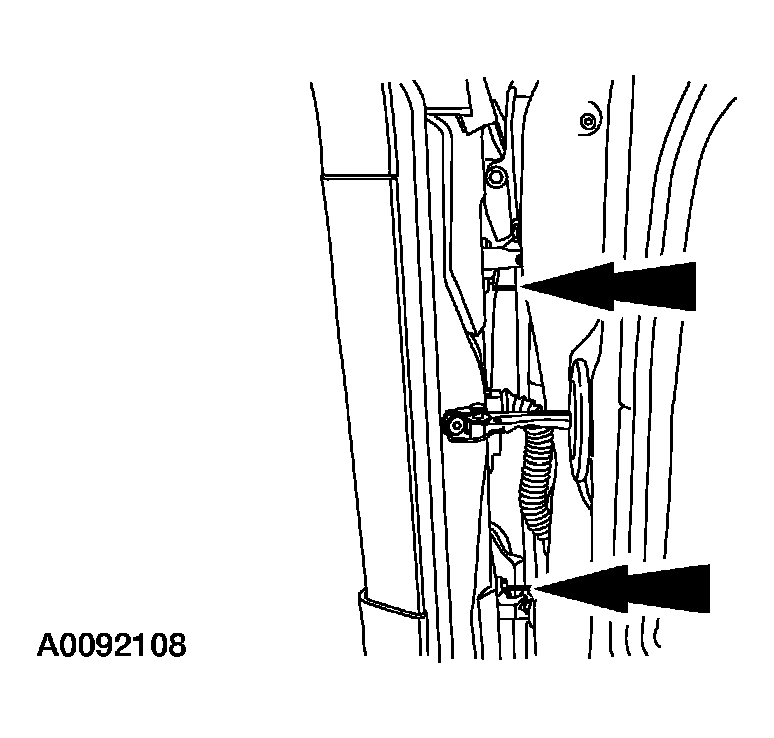

Fig 2: Loosening Front Door Hinge-To-Front Door Bolts
Courtesy of FORD MOTOR CO.
Adjust the front door alignment to the specifications.

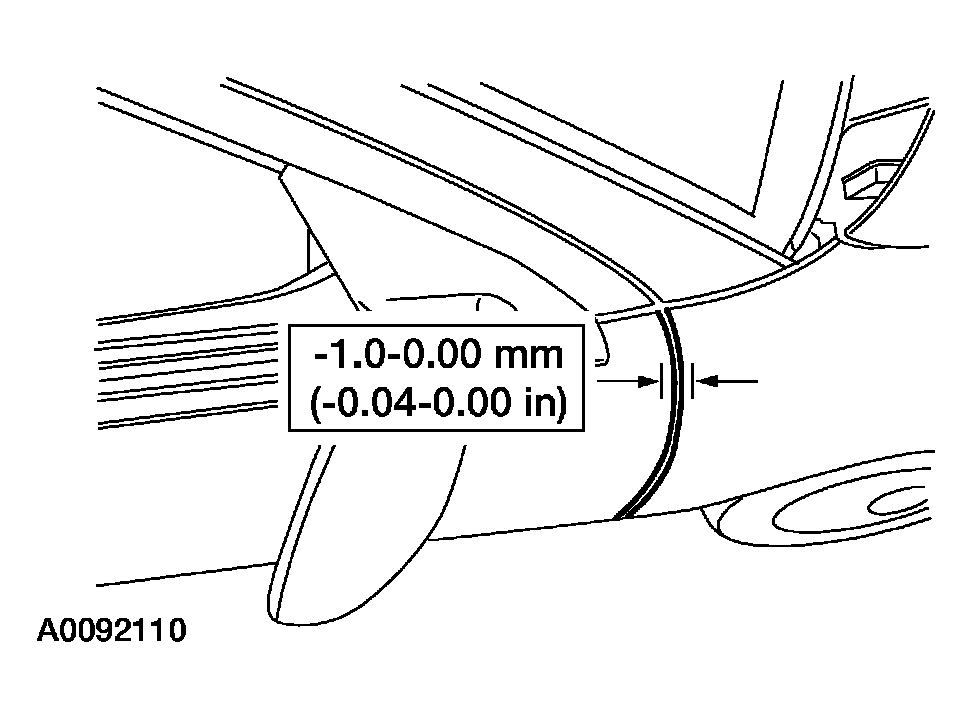

Fig 3: Adjusting Front Door Alignment To Specifications
Courtesy of FORD MOTOR CO.
Tighten the front door hinge-to-front door bolts.

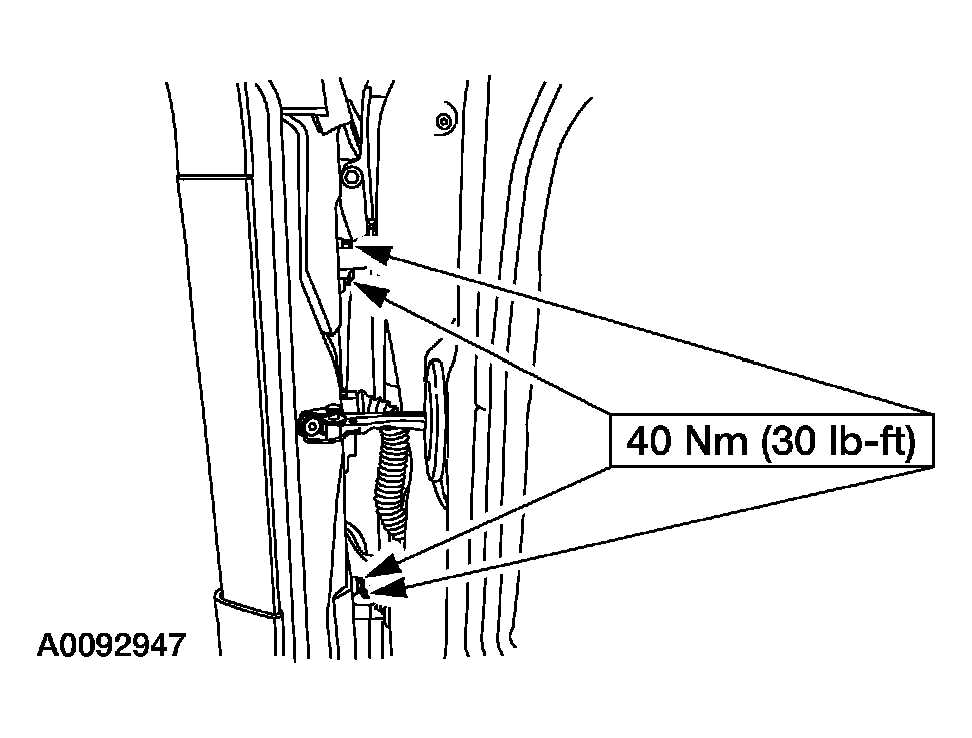

Fig 4: Tightening Front Door Hinge-To-Front Door Bolts

Courtesy of FORD MOTOR CO.
