Removal and Installation

  1. Remove the rear quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the screws and the speaker.
    • Disconnect the electrical connector.

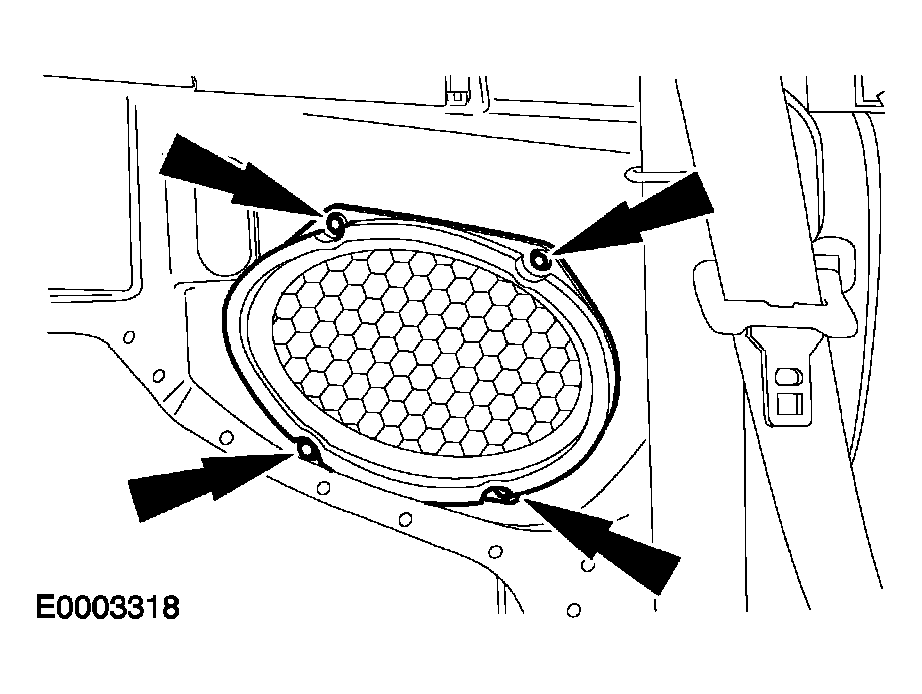

    Fig 1: Removing Screws And Speaker
    G03952371Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
